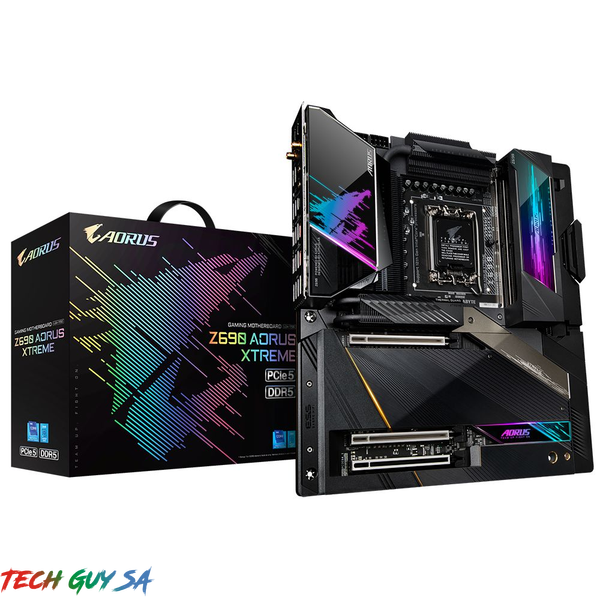

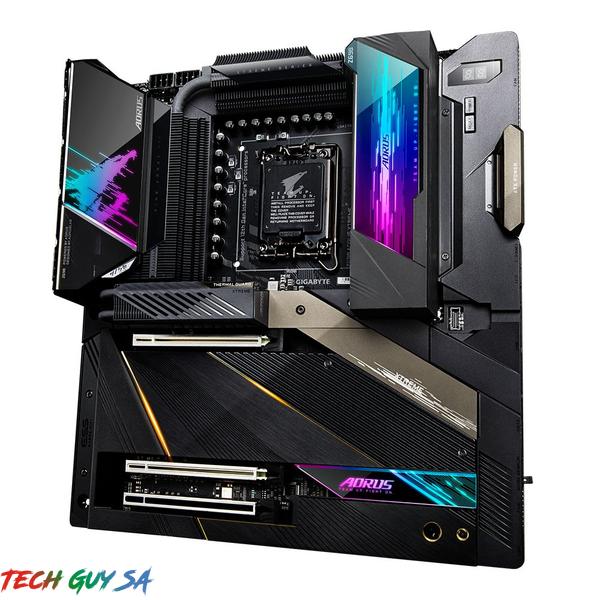

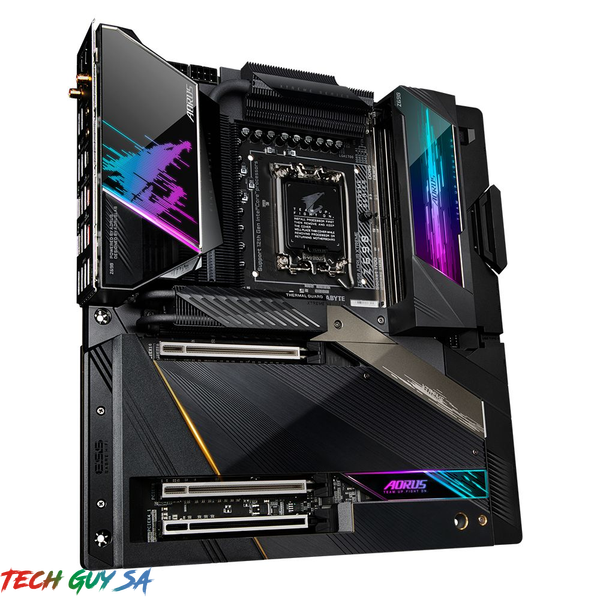

CPU |
       LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors |
|
       L3 cache varies with CPU |
|
   (Please refer to “CPU Support List” for more information.) |
|
|
   Chipset |
       Intel® Z690 Express Chipset |
|
|
   Memory |
       Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules |
|
       4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
       Dual channel memory architecture |
|
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
       Support for Extreme Memory Profile (XMP) memory modules |
|
   (Please refer “Memory Support List” for more information.) |
|
|
   Onboard Graphics |
   Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller: |
|
       2 x Intel® Thunderboltâ„¢ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderboltâ„¢ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output) |
|
       * Because of the limited I/O resources of the PC architecture, the number of Thunderboltâ„¢ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, “Back Panel Connectors,” for more information.) |
|
       * Support for DisplayPort 1.4 version and HDCP 2.3 |
|
   (Graphics specifications may vary depending on CPU support.) |
|
|
   Audio |
       1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips |
|
       DTS® Sound Unbound™ |
|
       High Definition Audio |
|
       2-channel |
|
       Support for S/PDIF Out |
|
       * The line out jack and the optical S/PDIF out connector can only be used one at a time. |
|
|
   LAN |
       Marvell® AQtion AQC113C 10GbE LAN chip |
|
       (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) |
|
       Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
|
|
   Wireless Communication module |
   Intel® Wi-Fi 6E AX210 |
|
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
       BLUETOOTH 5.2 |
|
       Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
       * Actual data rate may vary depending on environment and equipment. |
|
|
   Expansion Slots |
       1 x PCI Express x16 slot, running at x16 (PCIEX16) |
|
       * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
       1 x PCI Express x16 slot, running at x8 (PCIEX8) |
|
       * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. |
|
       (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) |
|
       1 x PCI Express x16 slot, running at x4 (PCIEX4_1) |
|
       (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.) |
|
|
   Multi-Graphics Technology |
       Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
|
|
   Storage Interface |
   CPU: |
|
       1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
   Chipset: |
|
       2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) |
|
       1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
       4 x SATA 6Gb/s connectors |
|
   Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
   Intel® Optane™ Memory Ready |
|
   * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
|
   USB |
   Chipset+Intel® Thunderbolt™ 4 Controller: |
|
       2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support |
|
   Chipset: |
|
       1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
|
       6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
   Chipset+USB 3.2 Gen 2 Hub: |
|
       4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
   Chipset+USB 3.2 Gen 1 Hub: |
|
       4 x USB 3.2 Gen 1 ports available through the internal USB headers |
|
   Chipset+USB 2.0 Hub: |
|
       4 x USB 2.0/1.1 ports available through the internal USB header (with the included front USB header extension cable) |
|
|
   Internal I/O Connectors |
       1 x 24-pin ATX main power connector |
|
       2 x 8-pin ATX 12V power connectors |
|
       1 x CPU fan header |
|
       1 x water cooling CPU fan header |
|
       4 x system fan headers |
|
       4 x system fan/water cooling pump headers |
|
       1 x noise detection header |
|
       1 x AORUS RGB Memory Armor power header |
|
       2 x addressable LED strip + RGB LED strip combo extension cable headers |
|
       4 x SATA 6Gb/s connectors |
|
       4 x M.2 Socket 3 connectors |
|
       1 x front panel header |
|
       1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
|
       2 x USB 3.2 Gen 1 headers |
|
       1 x USB 2.0/1.1 header |
|
       2 x temperature sensor headers |
|
       1 x power button |
|
       1 x reset button |
|
|
   Back Panel Connectors |
       1 x Q-Flash Plus button |
|
       1 x OC Ignition button |
|
       1 x Clear CMOS button |
|
       2 x SMA antenna connectors (2T2R) |
|
       2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support) |
|
       10 x USB 3.2 Gen 2 Type-A ports (red) |
|
       2 x RJ-45 ports |
|
       1 x optical S/PDIF Out connector |
|
       2 x audio jacks |
|
       * The mic in jack supports only mono microphone input. |
|
|
   I/O Controller |
       iTE® I/O Controller Chip |
|
|
   H/W Monitoring |
       Voltage detection |
|
       Temperature detection |
|
       Fan speed detection |
|
       Water cooling flow rate detection |
|
       Fan fail warning |
|
       Fan speed control |
|
       * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
|
       Noise detection |
|
|
   BIOS |
       1 x 256 Mbit flash |
|
       Use of licensed AMI UEFI BIOS |
|
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
   Unique Features |
       Support for APP Center |
|
       * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
       @BIOS |
|
       EasyTune |
|
       Fast Boot |
|
       Game Boost |
|
       ON/OFF Charge |
|
       RGB Fusion |
|
       Smart Backup |
|
       System Information Viewer |
|
       Support for Q-Flash Plus |
|
       Support for Q-Flash |
|
       Support for Xpress Install |
|
|
   Bundled Software |
       Norton® Internet Security (OEM version) |
|
       cFosSpeed |
|
|
   Operating System |
       Support for Windows 11 64-bit |
|
       Support for Windows 10 64-bit |
|
|
   Form Factor |
       E-ATX Form Factor; 30.5cm x 28.5cm |
