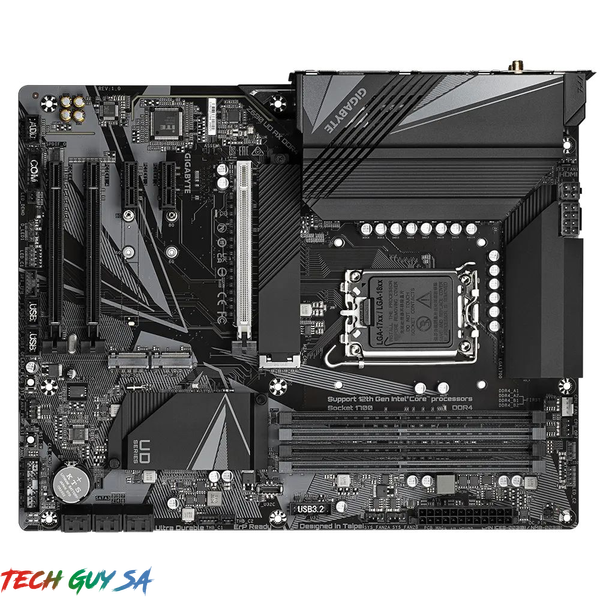

IntelĀ® Z690 Motherboard with Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2×2 Type-CĀ®, Q-Flash Plus
-
- Supports 12th Gen IntelĀ® Coreā¢ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitorā
- Ultra Performance VRM Heatsinks
- IntelĀ® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
- Fast 2.5 GbE LAN with Bandwidth Management
- 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard
- SuperSpeed USB 3.2 Gen 2×2 TYPE-CĀ® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- *Power Stage maximum current capacity is based on VCORE Phase.
Ā Ā Ā CPU | Ā Ā Ā Ā Ā Ā Ā LGA1700 socket: Support for 12th Generation IntelĀ® Coreā¢ i9 processors/IntelĀ® Coreā¢ i7 processors/IntelĀ® Coreā¢ i5 processors |
Ā Ā Ā Ā Ā Ā Ā L3 cache varies with CPU | |
Ā Ā Ā (Please refer to “CPU Support List” for more information.) | |
Ā Ā Ā Chipset | Ā Ā Ā Ā Ā Ā Ā IntelĀ® Z690 Express Chipset |
Ā Ā Ā Memory | Ā Ā Ā Ā Ā Ā Ā Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
Ā Ā Ā Ā Ā Ā Ā 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
Ā Ā Ā Ā Ā Ā Ā Dual channel memory architecture | |
Ā Ā Ā Ā Ā Ā Ā Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
Ā Ā Ā Ā Ā Ā Ā Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Ā Ā Ā Ā Ā Ā Ā Support for Extreme Memory Profile (XMP) memory modules | |
Ā Ā Ā (Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.) | |
Ā Ā Ā Onboard Graphics | Ā Ā Ā Integrated Graphics Processor-IntelĀ® HD Graphics support: |
Ā Ā Ā Ā Ā Ā Ā 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
Ā Ā Ā Ā Ā Ā Ā * Support for HDMI 2.1 version and HDCP 2.3. | |
Ā Ā Ā Ā Ā Ā Ā ** Support native HDMI 2.1 TMDS compatible ports. | |
Ā Ā Ā Ā Ā Ā Ā 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
Ā Ā Ā Ā Ā Ā Ā * Support for DisplayPort 1.2 version and HDCP 2.3 | |
Ā Ā Ā (Graphics specifications may vary depending on CPU support.) | |
Ā Ā Ā Audio | Ā Ā Ā Ā Ā Ā Ā RealtekĀ® Audio CODEC |
Ā Ā Ā Ā Ā Ā Ā High Definition Audio | |
Ā Ā Ā Ā Ā Ā Ā 2/4/5.1/7.1-channel | |
Ā Ā Ā Ā Ā Ā Ā * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
Ā Ā Ā Ā Ā Ā Ā Support for S/PDIF Out | |
Ā Ā Ā LAN | Ā Ā Ā Ā Ā Ā Ā RealtekĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Ā Ā Ā Wireless Communication module | Ā Ā Ā IntelĀ® Wi-Fi 6 AX201 |
Ā Ā Ā Ā Ā Ā Ā WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
Ā Ā Ā Ā Ā Ā Ā BLUETOOTH 5.2 | |
Ā Ā Ā Ā Ā Ā Ā Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
Ā Ā Ā Ā Ā Ā Ā * Actual data rate may vary depending on environment and equipment. | |
Ā Ā Ā Expansion Slots | Ā Ā Ā Ā Ā Ā Ā 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
Ā Ā Ā Ā Ā Ā Ā * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Ā Ā Ā Ā Ā Ā Ā (The PCIEX16 slot conforms to PCI Express 5.0 standard.) | |
Ā Ā Ā Ā Ā Ā Ā 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
Ā Ā Ā Ā Ā Ā Ā 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) | |
Ā Ā Ā Ā Ā Ā Ā 2 x PCI Express x1 slots | |
Ā Ā Ā Ā Ā Ā Ā (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
Ā Ā Ā Multi-Graphics Technology | Ā Ā Ā Ā Ā Ā Ā Support for AMD Quad-GPU CrossFireā¢ and 2-Way AMD CrossFireā¢ technologies |
Ā Ā Ā Storage Interface | Ā Ā Ā CPU: |
Ā Ā Ā Ā Ā Ā Ā 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
Ā Ā Ā Chipset: | |
Ā Ā Ā Ā Ā Ā Ā 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
Ā Ā Ā Ā Ā Ā Ā 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | |
Ā Ā Ā Ā Ā Ā Ā 6 x SATA 6Gb/s connectors | |
Ā Ā Ā Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
Ā Ā Ā IntelĀ® Optaneā¢ Memory Ready | |
Ā Ā Ā * System acceleration with IntelĀ® Optaneā¢ Memory can only be enabled on the M.2 connectors supported by the Chipset. | |
Ā Ā Ā USB | Ā Ā Ā Chipset: |
Ā Ā Ā Ā Ā Ā Ā 1 x USB Type-CĀ® port on the back panel, with USB 3.2 Gen 2×2 support | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB Type-CĀ® port with USB 3.2 Gen 1 support, available through the internal USB header | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
Ā Ā Ā Ā Ā Ā Ā 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Ā Ā Ā Chipset+2 USB 2.0 Hubs: | |
Ā Ā Ā Ā Ā Ā Ā 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
Ā Ā Ā Internal I/O Connectors | Ā Ā Ā Ā Ā Ā Ā 1 x 24-pin ATX main power connector |
Ā Ā Ā Ā Ā Ā Ā 1 x 8-pin ATX 12V power connector | |
Ā Ā Ā Ā Ā Ā Ā 1 x 4-pin ATX 12V power connector | |
Ā Ā Ā Ā Ā Ā Ā 1 x CPU fan header | |
Ā Ā Ā Ā Ā Ā Ā 1 x water cooling CPU fan header | |
Ā Ā Ā Ā Ā Ā Ā 3 x system fan headers | |
Ā Ā Ā Ā Ā Ā Ā 1 x system fan/water cooling pump header | |
Ā Ā Ā Ā Ā Ā Ā 2 x addressable LED strip headers | |
Ā Ā Ā Ā Ā Ā Ā 2 x RGB LED strip headers | |
Ā Ā Ā Ā Ā Ā Ā 3 x M.2 Socket 3 connectors | |
Ā Ā Ā Ā Ā Ā Ā 6 x SATA 6Gb/s connectors | |
Ā Ā Ā Ā Ā Ā Ā 1 x front panel header | |
Ā Ā Ā Ā Ā Ā Ā 1 x front panel audio header | |
Ā Ā Ā Ā Ā Ā Ā 1 x S/PDIF Out header | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB Type-CĀ® header, with USB 3.2 Gen 1 support | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB 3.2 Gen 1 header | |
Ā Ā Ā Ā Ā Ā Ā 2 x USB 2.0/1.1 headers | |
Ā Ā Ā Ā Ā Ā Ā 1 x serial port header | |
Ā Ā Ā Ā Ā Ā Ā 2 x Thunderboltā¢ add-in card connectors | |
Ā Ā Ā Ā Ā Ā Ā 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
Ā Ā Ā Ā Ā Ā Ā 1 x reset button | |
Ā Ā Ā Ā Ā Ā Ā 1 x reset jumper | |
Ā Ā Ā Ā Ā Ā Ā 1 x Q-Flash Plus button | |
Ā Ā Ā Ā Ā Ā Ā 1 x Clear CMOS jumper | |
Ā Ā Ā ļ¼All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |
Ā Ā Ā Back Panel Connectors | Ā Ā Ā Ā Ā Ā Ā 1 x PS/2 keyboard/mouse port |
Ā Ā Ā Ā Ā Ā Ā 2 x SMA antenna connectors (2T2R) | |
Ā Ā Ā Ā Ā Ā Ā 1 x DisplayPort | |
Ā Ā Ā Ā Ā Ā Ā 1 x HDMI port | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB Type-CĀ® port, with USB 3.2 Gen 2×2 support | |
Ā Ā Ā Ā Ā Ā Ā 1 x USB 3.2 Gen 2 Type-A port (red) | |
Ā Ā Ā Ā Ā Ā Ā 4 x USB 3.2 Gen 1 ports | |
Ā Ā Ā Ā Ā Ā Ā 4 x USB 2.0/1.1 ports | |
Ā Ā Ā Ā Ā Ā Ā 1 x RJ-45 port | |
Ā Ā Ā Ā Ā Ā Ā 3 x audio jacks | |
Ā Ā Ā I/O Controller | Ā Ā Ā Ā Ā Ā Ā iTEĀ® I/O Controller Chip |
Ā Ā Ā H/W Monitoring | Ā Ā Ā Ā Ā Ā Ā Voltage detection |
Ā Ā Ā Ā Ā Ā Ā Temperature detection | |
Ā Ā Ā Ā Ā Ā Ā Fan speed detection | |
Ā Ā Ā Ā Ā Ā Ā Water cooling flow rate detection | |
Ā Ā Ā Ā Ā Ā Ā Fan fail warning | |
Ā Ā Ā Ā Ā Ā Ā Fan speed control | |
Ā Ā Ā Ā Ā Ā Ā * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
Ā Ā Ā BIOS | Ā Ā Ā Ā Ā Ā Ā 1 x 256 Mbit flash |
Ā Ā Ā Ā Ā Ā Ā Use of licensed AMI UEFI BIOS | |
Ā Ā Ā Ā Ā Ā Ā PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Ā Ā Ā Unique Features | Ā Ā Ā Ā Ā Ā Ā Support for APP Center |
Ā Ā Ā Ā Ā Ā Ā * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
Ā Ā Ā Ā Ā Ā Ā @BIOS | |
Ā Ā Ā Ā Ā Ā Ā EasyTune | |
Ā Ā Ā Ā Ā Ā Ā Fast Boot | |
Ā Ā Ā Ā Ā Ā Ā Game Boost | |
Ā Ā Ā Ā Ā Ā Ā ON/OFF Charge | |
Ā Ā Ā Ā Ā Ā Ā RGB Fusion | |
Ā Ā Ā Ā Ā Ā Ā Smart Backup | |
Ā Ā Ā Ā Ā Ā Ā System Information Viewer | |
Ā Ā Ā Ā Ā Ā Ā Support for Q-Flash Plus | |
Ā Ā Ā Ā Ā Ā Ā Support for Q-Flash | |
Ā Ā Ā Ā Ā Ā Ā Support for Xpress Install | |
Ā Ā Ā Bundled Software | Ā Ā Ā Ā Ā Ā Ā NortonĀ® Internet Security (OEM version) |
Ā Ā Ā Ā Ā Ā Ā RealtekĀ® Gaming LAN Bandwidth Control Utility | |
Ā Ā Ā Operating System | Ā Ā Ā Ā Ā Ā Ā Support for Windows 10 64-bit |
Ā Ā Ā Form Factor | Ā Ā Ā Ā Ā Ā Ā ATX Form Factor; 30.5cm x 24.4cm |
