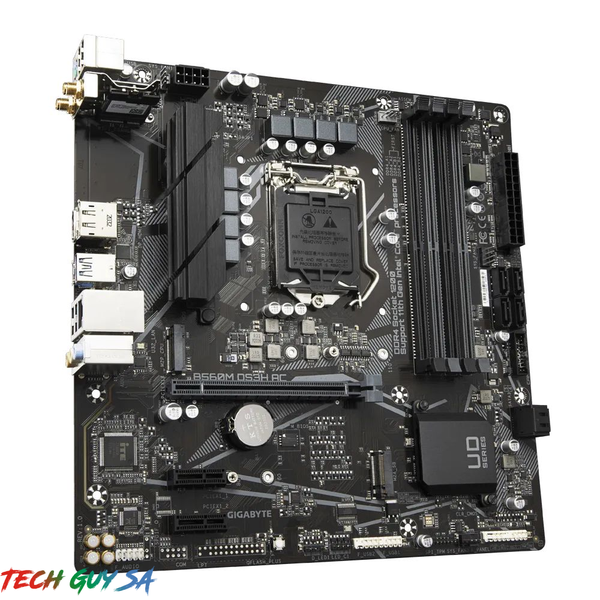

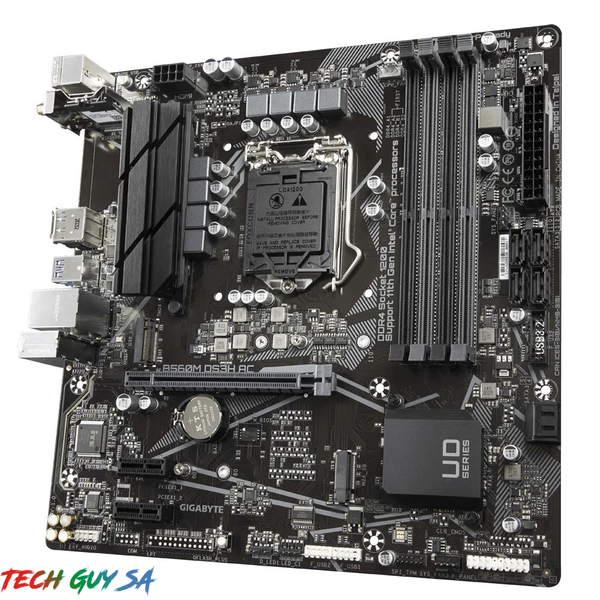

- Supports 11th and 10th Gen IntelĀ® Coreā¢ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Onboard Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- USB 3.2 Gen1 Type-CĀ® for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- * Actual support may vary by CPU.
CPU | LGA1200 package: |
1. 11th Generation IntelĀ® Coreā¢ i9 processors / IntelĀ® Coreā¢ i7 processors / IntelĀ® Coreā¢ i5 processors | |
2. 10th Generation IntelĀ® Coreā¢ i9 processors / IntelĀ® Coreā¢ i7 processors / IntelĀ® Coreā¢ i5 processors / IntelĀ® Coreā¢ i3 processors/ IntelĀ® PentiumĀ® processors / IntelĀ® CeleronĀ® processors* | |
* Limited to processors with 4 MB IntelĀ® Smart Cache, IntelĀ® CeleronĀ® G5xx5 family. | |
3. L3 cache varies with CPU | |
(Please refer to “CPU Support List” for more information.) | |
Chipset | 1. IntelĀ® B560 Express Chipset |
Memory | 1. 11th Generation IntelĀ® Coreā¢ i9/i7/i5 processors: |
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules | |
2. 10th Generation IntelĀ® Coreā¢ i9/i7 processors: | |
Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
3. 10th Generation IntelĀ® Coreā¢ i5/i3/PentiumĀ®/CeleronĀ® processors: | |
Support for DDR4 2666/2400/2133 MHz memory modules | |
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
5. Dual channel memory architecture | |
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
8. Support for Extreme Memory Profile (XMP) memory modules | |
(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.) | |
Onboard Graphics | Integrated Graphics Processor-IntelĀ® HD Graphics support: |
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
* The DVI-D port does not support D-Sub connection by adapter. | |
3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
* Support for DisplayPort 1.2 version and HDCP 2.3 | |
* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. | |
4. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz | |
* Support for HDMI 1.4 version and HDCP 2.3. | |
(Graphics specifications may vary depending on CPU support.) | |
Support for up to 3 displays at the same time | |
LAN | 1. RealtekĀ® GbE LAN chip (1000/100 Mbit) |
Wireless Communication module |
AzureWave Wi-Fi AW-CB304NF (RealtekĀ® RTL8821CE)
|
Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) | |
2. 2 x PCI Express x1 slots | |
(The PCIEX1 slot conforms to PCI Express 3.0 standard.) | |
Storage Interface | CPU: |
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) | |
Chipset: | |
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) | |
2. 6 x SATA 6Gb/s connectors | |
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. | |
IntelĀ® Optaneā¢ Memory Ready | |
* System Acceleration with IntelĀ® Optaneā¢ Memory enabled on the M2P_CPU connector only. | |
USB | Chipset: |
1. 1 x USB Type-CĀ® port on the back panel, with USB 3.2 Gen 1 support | |
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
3. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
Chipset+USB 2.0 Hub: | |
1. 2 x USB 2.0/1.1 ports on the back panel | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 3 x system fan headers | |
5. 1 x addressable LED strip header | |
6. 1 x RGB LED strip header | |
7. 6 x SATA 6Gb/s connectors | |
8. 2 x M.2 Socket 3 connectors | |
9. 1 x front panel header | |
10. 1 x front panel audio header | |
11. 1 x USB 3.2 Gen 1 header | |
12. 2 x USB 2.0/1.1 headers | |
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
14. 1 x serial port header | |
15. 1 x parallel port header | |
16. 1 x Clear CMOS jumper | |
17. 1 x Q-Flash Plus button | |
Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports |
2. 1 x PS/2 keyboard/mouse port | |
3. 1 x D-Sub port | |
4. 1 x DVI-D port | |
5. 1 x DisplayPort | |
6. 1 x HDMI port | |
7. 3 x USB 3.2 Gen 1 ports | |
8. 1 x USB Type-CĀ® port, with USB 3.2 Gen 1 support | |
9. 1 x RJ-45 port | |
10. 3 x audio jacks | |
I/O Controller | 1. iTEĀ® I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Fan fail warning | |
5. Fan speed control | |
* Whether the fan speed control function is supported will depend on the fan you install. | |
BIOS | 1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
System Information Viewer | |
2. Support for Q-Flash Plus | |
3. Support for Q-Flash | |
4. Support for Xpress Install | |
Bundled Software | 1. NortonĀ® Internet Security (OEM version) |
2. RealtekĀ® 8118 Gaming LAN Bandwidth Control Utility | |
Operating System | 1. Support for Windows 10 64-bit |
Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
Note | Supported by 11th Generation processors only. |
