CPU |
LGA1200 package: |
|
|
|
1. 11th Generation IntelĀ® Coreā¢ i9 processors / IntelĀ® Coreā¢ i7 processors / IntelĀ® Coreā¢ i5 processors |
|
2. 10th Generation IntelĀ® Coreā¢ i9 processors / IntelĀ® Coreā¢ i7 processors / IntelĀ® Coreā¢ i5 processors / IntelĀ® Coreā¢ i3 processors/ IntelĀ® PentiumĀ® processors / IntelĀ® CeleronĀ® processors* |
|
* Limited to processors with 4 MB IntelĀ® Smart Cache, IntelĀ® CeleronĀ® G5xx5 family. |
|
3. L3 cache varies with CPU |
|
|
|
(Please refer to “CPU Support List” for more information.) |
Chipset |
IntelĀ® B560 Express Chipset |
Memory |
1. 11th Generation IntelĀ® Coreā¢ i9/i7/i5 processors: |
|
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
|
|
|
2. 10th Generation IntelĀ® Coreā¢ i9/i7 processors: |
|
Support for DDR4 2933/2666/2400/2133 MHz memory modules |
|
|
|
3. 10th Generation IntelĀ® Coreā¢ i5/i3 /PentiumĀ®/CeleronĀ® processors: |
|
Support for DDR4 2666/2400/2133 MHz memory modules |
|
|
|
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
5. Dual channel memory architecture |
|
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
8. Support for Extreme Memory Profile (XMP) memory modules |
|
|
|
(Please refer “Memory Support List” for more information.) |
Onboard Graphics |
Integrated Graphics Processor-IntelĀ® HD Graphics support: |
|
|
|
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
|
* Support for HDMI 1.4 version and HDCP 2.3. |
|
|
|
2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
* Support for DisplayPort 1.2 version, HDCP 2.3 |
|
|
|
(Graphics specifications may vary depending on CPU support.) |
Audio |
1. RealtekĀ® Audio codec |
|
2. High Definition Audio |
|
3. 2/4/5.1/7.1-channel |
LAN |
1. RealtekĀ®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
|
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)* |
|
*Supported by 11th Generation processors only. |
|
|
|
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|
3. 1 x PCI Express x1 slot |
|
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFireā¢ and 2-Way AMD CrossFireā¢ technologies |
Storage Interface |
1. CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* |
|
* Supported by 11th Generation processors only. |
|
|
|
2. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
|
3. 6 x SATA 6Gb/s connectors |
|
4. IntelĀ® Optaneā¢ Memory Ready |
USB |
Chipset: |
|
|
|
1. 1 x USB Type-CĀ® port on the back panel, with USB 3.2 Gen2 support |
|
2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel |
|
3. 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header) |
|
4. 2 x USB 2.0/1.1 ports on the back panel |
|
|
|
Chipset+USB 3.2 Gen 1 Hub: |
|
|
|
1. 1 x USB Type-CĀ® port with USB 3.2 Gen1 support, available through the internal USB header |
|
2. 2 x USB 3.2 Gen1 ports available through the internal USB header |
|
|
|
Chipset+ 2 USB 2.0 Hubs: |
|
|
|
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

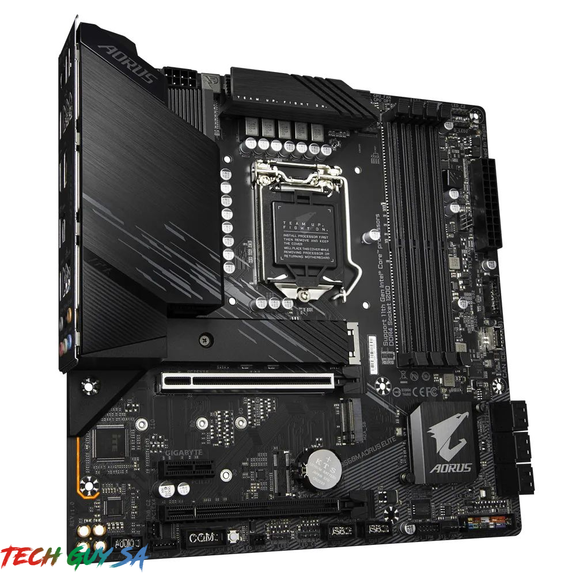

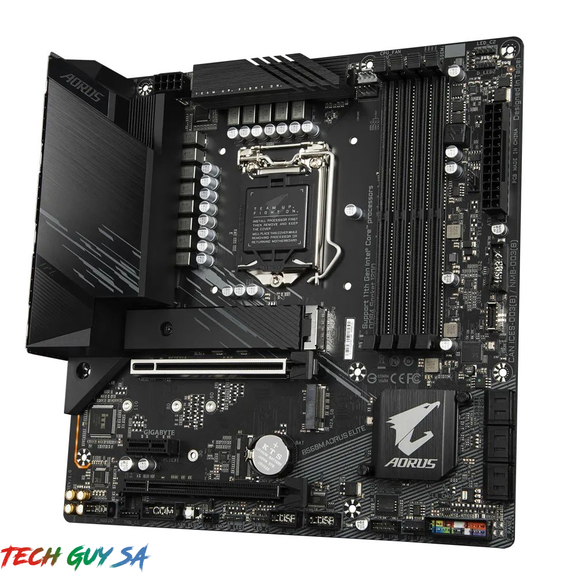

Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
|
2. 1 x 8-pin ATX 12V power connector |
|
3. 1 x CPU fan header |
|
4. 1 x water cooling CPU fan header |
|
5. 3 x system fan headers |
|
6. 2 x addressable LED strip headers |
|
7. 2 x RGB LED strip headers |
|
8. 6 x SATA 6Gb/s connectors |
|
9. 2 x M.2 Socket 3 connectors |
|
10. 1 x front panel header |
|
11. 1 x front panel audio header |
|
12. 1 x USB Type-CĀ® header, with USB 3.2 Gen 1 support |
|
13. 1 x USB 3.2 Gen 1 header |
|
14. 2 x USB 2.0/1.1 headers |
|
15. 2 x Thunderboltā¢ add-in card connectors |
|
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
17. 1 x serial port header |
|
18. 1 x Clear CMOS jumper |
|
19. 1 x Q-Flash Plus button |

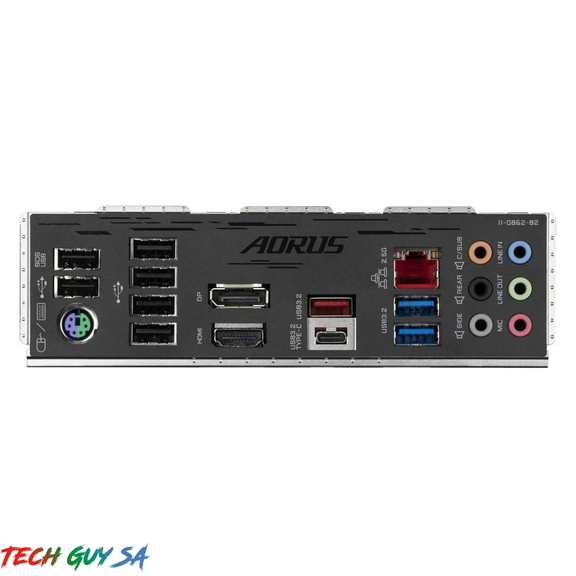

Back Panel Connectors |
1. 1 x PS/2 keyboard/mouse port |
|
2. 1 x USB Type-CĀ® port, with USB 3.2 Gen2 support |
|
3. 1 x USB 3.2 Gen2 Type-A port (red) |
|
4. 2 x USB 3.2 Gen1 ports |
|
5. 6 x USB 2.0/1.1 ports |
|
6. 1 x DisplayPort |
|
7. 1 x HDMI port |
|
8. 1 x RJ-45 port |
|
9. 6 x audio jacks |
I/O Controller |
1. iTEĀ® I/O Controller Chi |
H/W Monitoring |
1. Voltage detection |
|
2. Temperature detection |
|
3. Fan speed detection |
|
4. Water cooling flow rate detection |
|
5. Fan fail warning |
|
6. Fan speed control |
|
* Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1. 1 x 256 Mbit flash |
|
2. Use of licensed AMI UEFI BIOS |
|
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
1. Support for APP Center |
|
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
@BIOS |
|
EasyTune |
|
Fast Boot |
|
Game Boost |
|
ON/OFF Charge |
|
RGB Fusion |
|
Smart Backup |
|
System Information Viewer |
|
|
|
2. Support for Q-Flash Plus |
|
3. Support for Q-Flash |
|
4. Support for Xpress Install |
Bundled Software |
1. NortonĀ® Internet Security (OEM version) |
|
2. RealtekĀ® 8125 Gaming LAN Bandwidth Control Utility |
Operating System |
1. Support for Windows 10 64-bit |
Form Factor |
1. Micro ATX Form Factor; 24.4cm x 24.4cm |
