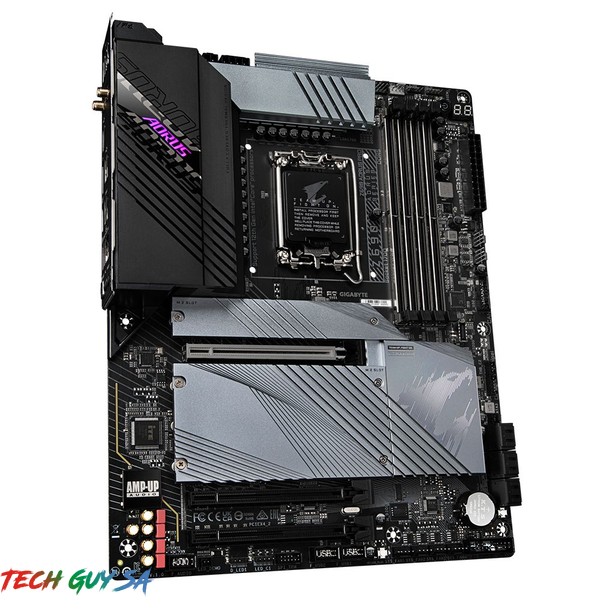

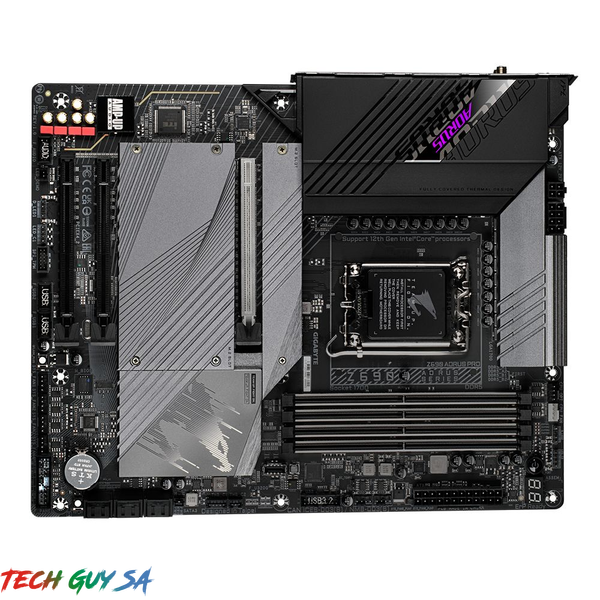

CPU |
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors |
|
       (Go to GIGABYTE’s website for the latest CPU support list.) |
|
       L3 cache varies with CPU |
|
   (Please refer to “CPU Support List” for more information.) |
|
|
   Chipset |
       Intel® Z690 Express Chipset |
|
|
   Memory |
       Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules |
|
       4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
       Dual channel memory architecture |
|
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
       Support for Extreme Memory Profile (XMP) memory modules |
|
   (Please refer “Memory Support List” for more information.) |
|
|
   Onboard Graphics |
   Integrated Graphics Processor-Intel® HD Graphics support: |
|
   1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
   * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
   (Graphics specifications may vary depending on CPU support.) |
|
|
   Audio |
       Realtek® ALC4080 CODEC |
|
       High Definition Audio |
|
       2-channel analog output |
|
       Support for S/PDIF Out |
|
       7.1-channel digital signals |
|
       * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
|
|
   LAN |
       Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
|
   Wireless Communication module |
   Intel® Wi-Fi 6 AX200: |
|
       WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band |
|
       BLUETOOTH 5.2 |
|
       Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
       * Actual data rate may vary depending on environment and equipment. |
|
|
   Expansion Slots |
       1 x PCI Express x16 slot, running at x16 (PCIEX16) |
|
       (The PCIEX16 slot conforms to PCI Express 5.0 standard.) |
|
       2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
|
       (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
|
|
   Multi-Graphics Technology |
       Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
|
|
   Storage Interface |
   CPU: |
|
       1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
   Chipset: |
|
       1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
|
       2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) |
|
       6 x SATA 6Gb/s connectors |
|
   Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
   * Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. |
|
|
|
   Intel® Optane™ Memory Ready |
|
   * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
|
   USB |
|
   Chipset: |
|
       2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) |
|
       4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
   Chipset+2 USB 3.2 Gen 1 Hubs: |
|
       6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
   Chipset+2 USB 2.0 Hub: |
|
       8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
|
   Internal I/O Connectors |
       1 x 24-pin ATX main power connector |
|
       1 x 8-pin ATX 12V power connector |
|
       1 x 4-pin ATX 12V power connector |
|
       1 x CPU fan header |
|
       1 x water cooling CPU fan header |
|
       4 x system fan headers |
|
       2 x system fan/water cooling pump headers |
|
       2 x addressable LED strip headers |
|
       2 x RGB LED strip headers |
|
       4 x M.2 Socket 3 connectors |
|
       6 x SATA 6Gb/s connectors |
|
       1 x front panel header |
|
       1 x front panel audio header |
|
       1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
|
       1 x USB 3.2 Gen 1 header |
|
       2 x USB 2.0/1.1 headers |
|
       1 x noise detection header |
|
       2 x Thunderbolt™ add-in card connectors |
|
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
       1 x power button |
|
       1 x reset button |
|
       1 x Q-Flash Plus button |
|
       2 x temperature sensor headers |
|
       1 x reset jumper |
|
       1 x Clear CMOS jumper |
|
   *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
|
|

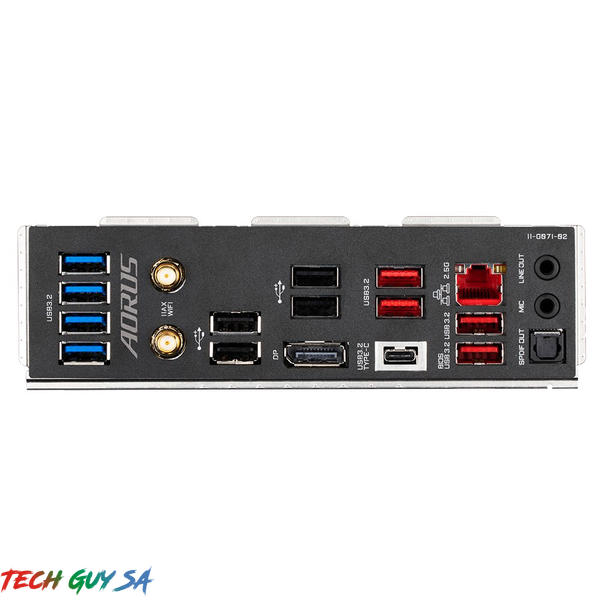

   Back Panel Connectors |
       1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
|
       4 x USB 3.2 Gen 2 Type-A ports (red) |
|
       4 x USB 3.2 Gen 1 ports |
|
       4 x USB 2.0/1.1 ports |
|
       2 x SMA antenna connectors (2T2R) |
|
       1 x DisplayPort |
|
       1 x RJ-45 port |
|
       1 x optical S/PDIF Out connector |
|
       2 x audio jacks |
|
|
   I/O Controller |
       iTE® I/O Controller Chip |
|
|
   H/W Monitoring |
       Voltage detection |
|
       Temperature detection |
|
       Fan speed detection |
|
       Water cooling flow rate detection |
|
       Fan fail warning |
|
       Fan speed control |
|
       * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
|
       Noise detection |
|
|
   BIOS |
       1 x 256 Mbit flash |
|
       Use of licensed AMI UEFI BIOS |
|
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
   Unique Features |
       Support for APP Center |
|
       * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
       @BIOS |
|
       EasyTune |
|
       Fast Boot |
|
       Game Boost |
|
       ON/OFF Charge |
|
       RGB Fusion |
|
       Smart Backup |
|
       System Information Viewer |
|
       Support for Q-Flash Plus |
|
       Support for Q-Flash |
|
       Support for Xpress Install |
|
|
   Bundled Software |
       Norton® Internet Security (OEM version) |
|
       cFosSpeed |
|
|
   Operating System |
       Support for Windows 10 64-bit |
|
|
   Form Factor |
       ATX Form Factor; 30.5cm x 24.4cm |
|
|
|
|
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice. |
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration. |
* All trademarks and logos are the properties of their respective holders. |
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount. |
