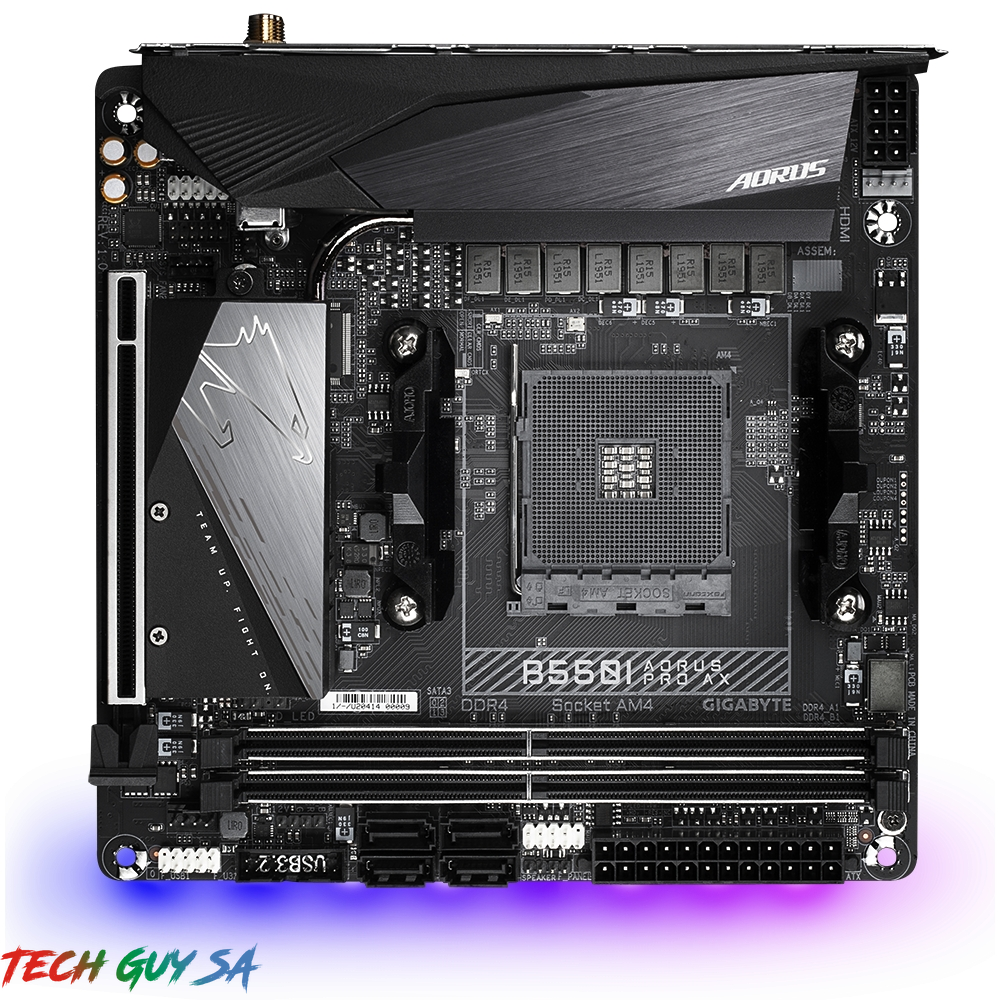

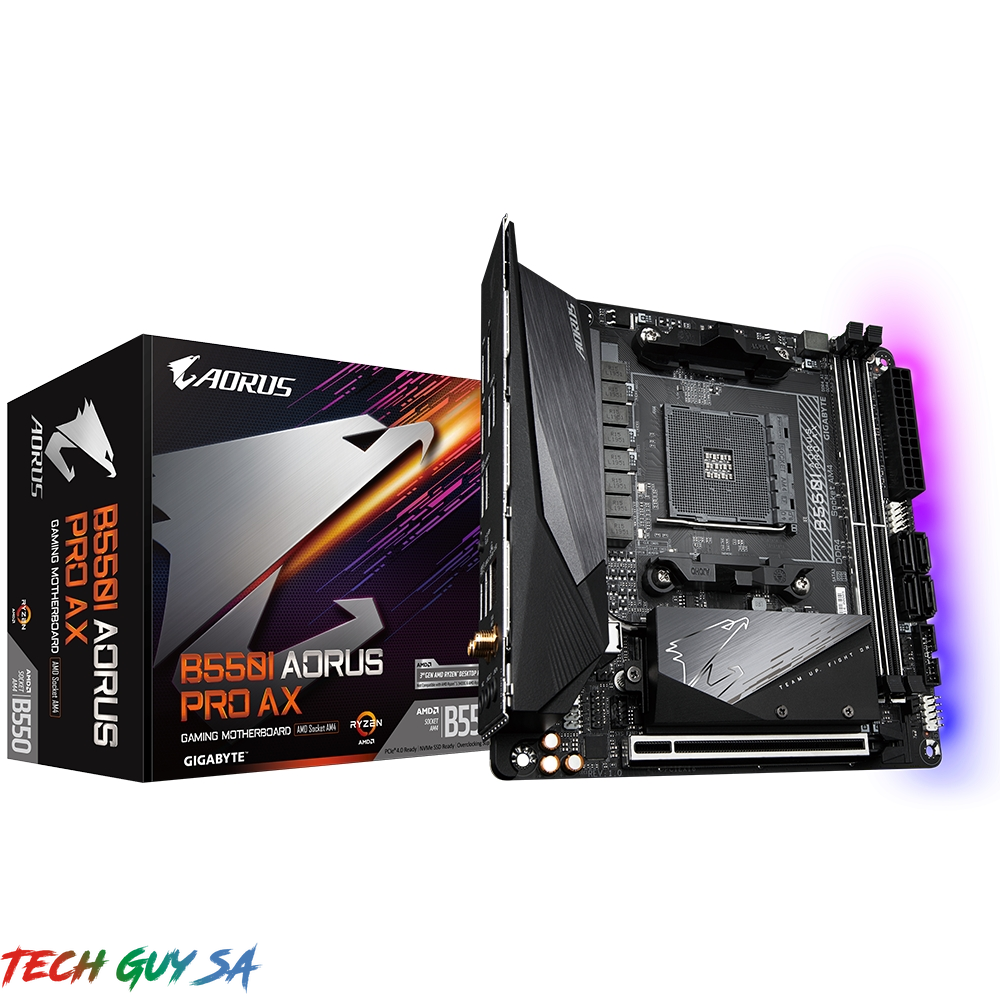

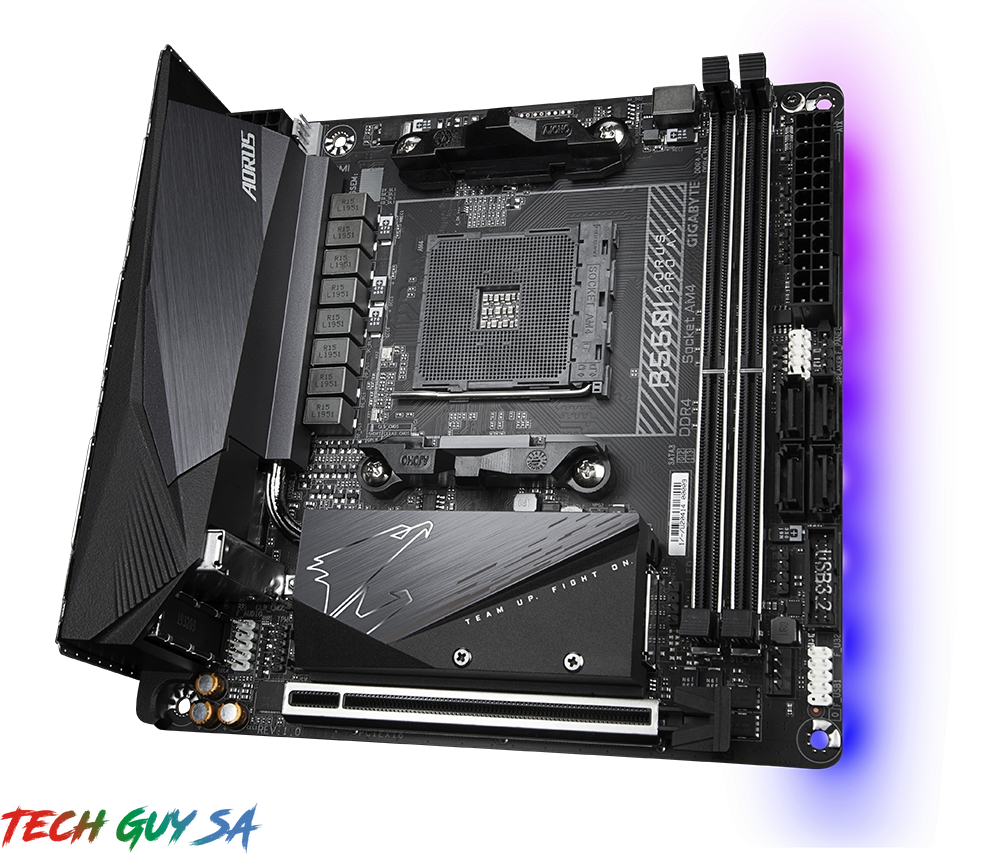

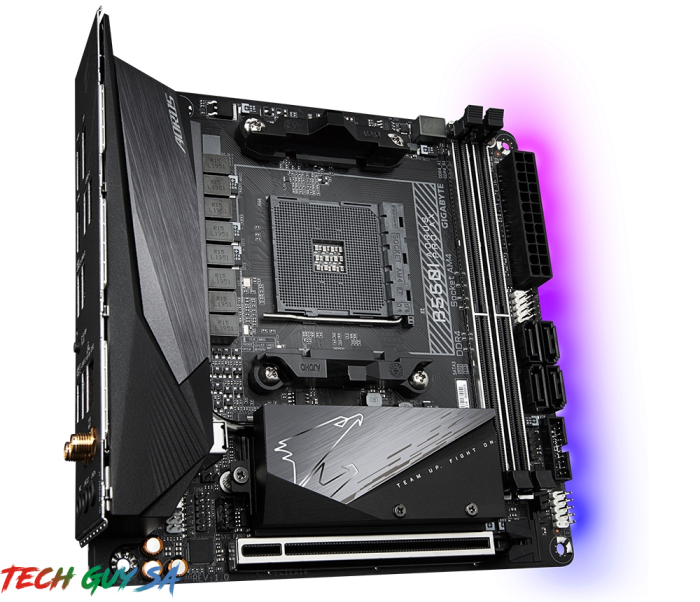

Gigabyte B550I AORUS PRO AX (rev. 1.0) AM4 Motherboard
R4,200 Incl VAT
Pay R4,074 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
| Specifications | |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | AMD B550 |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| 3rd Gen AMD Ryzen™ Processors: | |
| Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: | |
| Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: |
| 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| 2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Support for up to 3 displays at the same time | |
| Maximum shared memory of 16 GB | |
| Audio | Realtek® ALC1220-VB codec |
| * The back panel line out jack supports DSD audio. | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Wireless Communication module | Intel® Wi-Fi 6 AX200 |
| WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 5 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| * Actual data rate may vary depending on environment and equipment. | |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode | |
| New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: |
| – 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| – New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: | |
| – Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| – Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2 x USB 2.0/1.1 ports available through the internal USB header | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 4 x SATA 6Gb/s connectors | |
| 2 x M.2 Socket 3 connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x speaker header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1 x Clear CMOS jumper | |

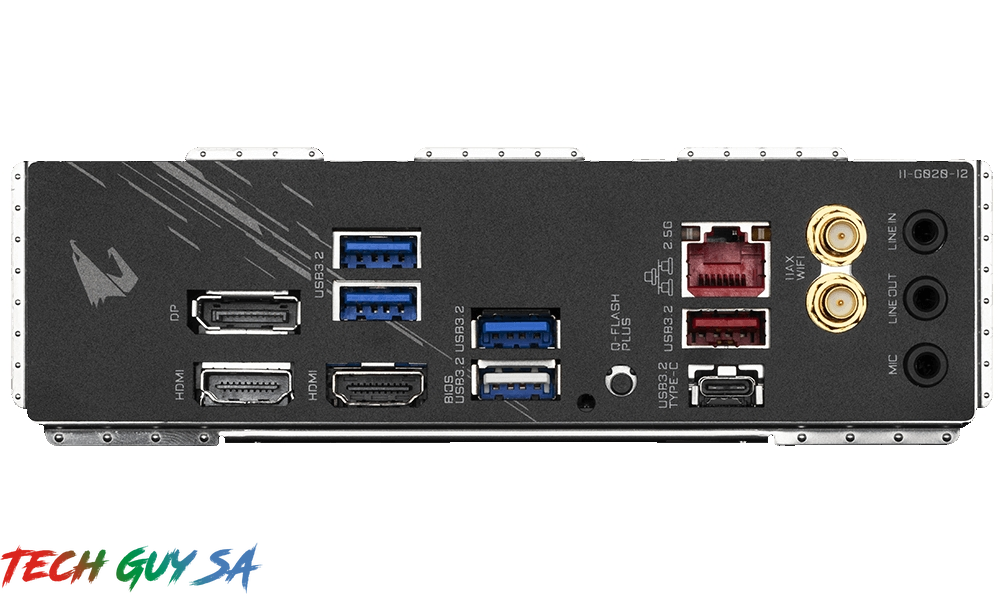

| Back Panel Connectors | 1 x DisplayPort |
| 2 x HDMI ports | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x SMA antenna connectors (2T2R) | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| Unique Features | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Bundled Software | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Operating System | Norton® Internet Security (OEM version) |
| XSplit Gamecaster + Broadcaster (12 months license) | |
| Realtek® 8125 Gaming LAN Bandwidth Control Utility | |
| Form Factor | Support for Windows 10 64-bit |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
| Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. | |
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
| Brand | Gigabyte |
| Socket | AM4 |
| CPU Support | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Chipset Manufacture | AMD |
| Chipset Model | AMD B550 |
| Form Factor | Mini ITX |
| Memory Slots Available | 4 Slots |
| Memory Type | Desktop DDR4 |
| On-Board WiFi | Yes |
| Reverse Connectors | No |
| GPU High Powered Connector | No |
| Windows Compatibility | Windows 10, Windows 11 ( Possibly Requires TPM ) |
| Colour | Black |
