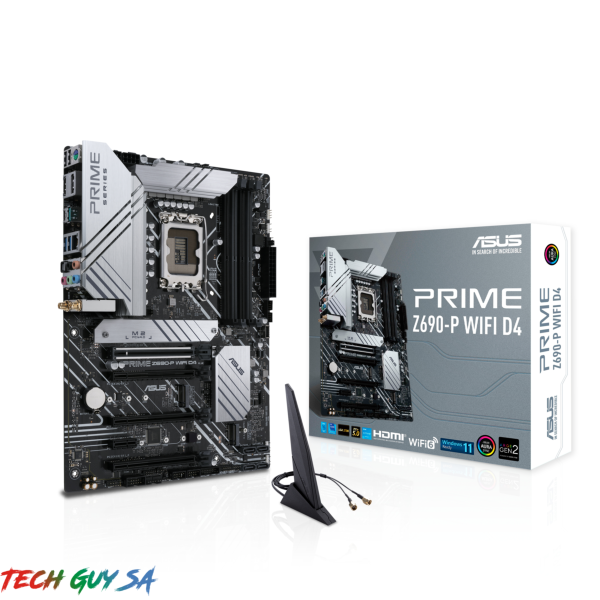

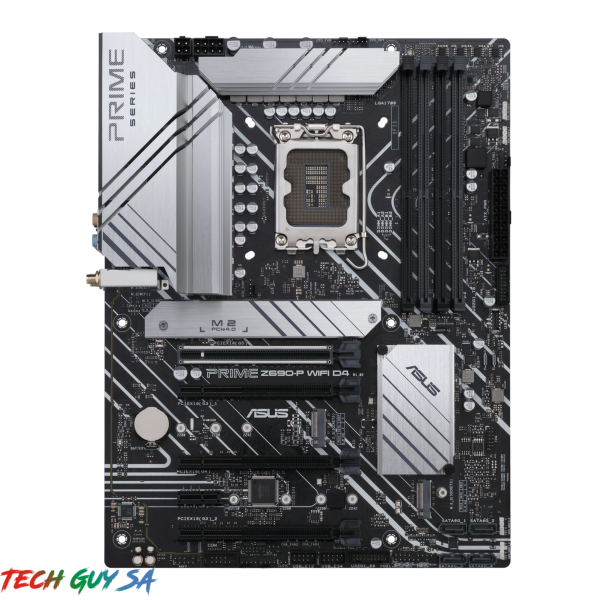

Asus PRIME Z690-P WIFI D4 – LGA1700
R5,600 Incl VAT
Pay R5,432 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI®, DisplayPort™, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Intel® WiFi 6, DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WIFI D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
CPU
| Chipset | Intel Z690 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB | 1 x USB 3.2 Gen 2×2 Type-C 1 x USB 3.1 / USB 3.2 Gen 2 Type-A 2 x USB 3.1 / USB 3.2 Gen 1 Type-A 2 x USB 2.0 Type-A |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1 x HDMI |
| Audio | 5 x 3.5 mm 1 x S/PDIF |
| Ethernet / Controller | 1 x Realtek 2.5Gigabit |
| PS/2 | 1 x Combo |
| Wi-Fi Antenna | 2 x Connector |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800, 5000, 5133, 5333 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified)) |
| U.2 | None |
| Optane Memory Support | Yes |
| RAID Support | RAID 0, 1, 5 (M.2) RAID 0, 1, 5, 10 (SATA) |
Internal I/O
| Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port) 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Multi-GPU Support | None |
| Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin Assistant 3 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX |
| Security | TPM Header |
| LED Header | 4 x RGB |
| Audio | None |
| Diagnostics | Clear CMOS |
| Add-On | 1 x Thunderbolt Card Header |
| Legacy | 1 x Serial 1 x Parallel |
BIOS
| ROM | 192 Mb |
Front Panel I/O
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
Audio
| Audio Codec | Realtek (7.1-Channel) |
Wireless
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
Software
| Supported Operating Systems | Windows 10 (64-Bit) |
Physical
| Form Factor | ATX |
| Dimensions | 9.2 x 12″ / 23.4 x 30.5 cm |
Additional information
| Weight | 1.69 kg |
|---|---|
| Dimensions | 34 × 28.7 × 7.1 cm |
| Brand |
Asus |
| Socket |
LGA 1700 |
| CPU Support |
Intel 12ᵗʰ Generation ,Intel 13th Generation ,Intel 14th Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
Intel Z690 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR4 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black and Silver |
