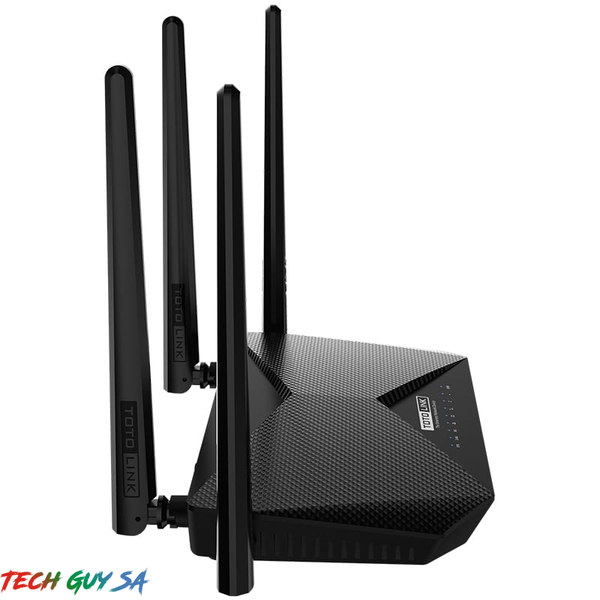

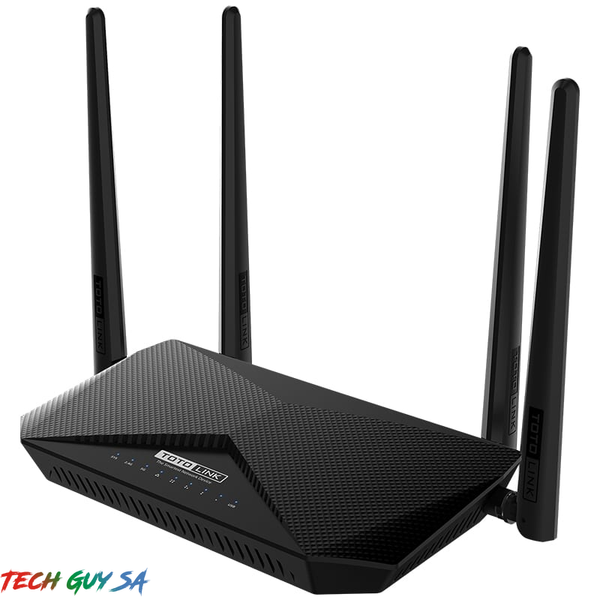

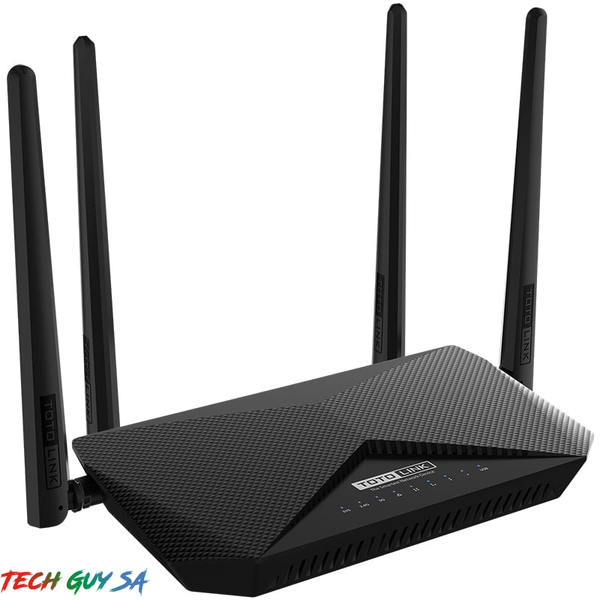

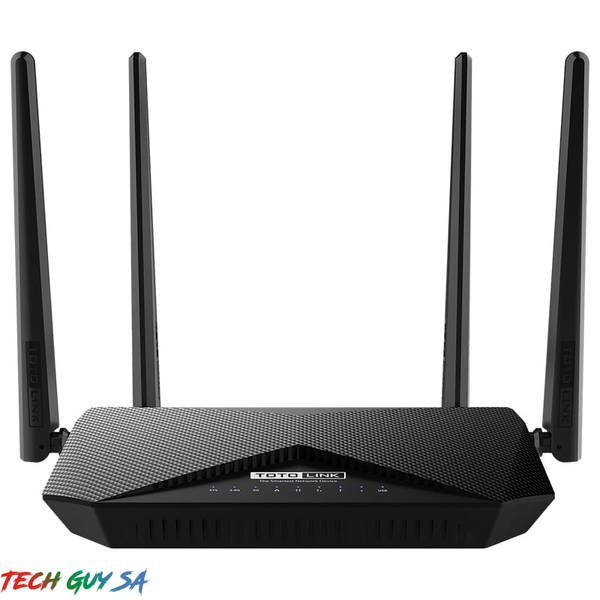

TOTOLINK A3002RUV2 1200MB 2.4G/5G 4 x LAN/1 x WAN/4 x Antenna / 1 x USB2.0 Wireless Router – End of Life

The TOTOLINK A3002RUV2 1200MB 2.4G | 5G Dual Band Gigabit Router is a versatile router that delivers a powerful connection which suits your network requirements. This router complies with the latest IEEE802.11ac Wave 2 standards and utilises Multi-User, Multiple Input, Multiple Output (MU-MIMO) technology. This technology breaks up the available bandwidth into separate, individual streams that share the connection equally to multiple wireless devices, enhancing wireless capacity. It has a full gigabit WAN port for high-speed connections and four LAN ports for any cable-connected devices.

It is equipped with four omni-directional antennas that deliver Wi-Fi speeds of up to 1167Mbps, to your devices. The A3002RUV2 utilises a 1GHz CPU to offer improved wireless transmission performance, increasing both range and stability.

Bring versatility to your wireless network with TOTOLINK’s multiple modes, such as “Gateway”, “AP Mode”, “WISP Mode” and “Repeater Mode”. The admin interface can easily be accessed via your smartphone when connected to the A3002RUV2 Dual Band Gigabit Router, allowing for easy-to-use configuration.

Features:

• Complies with the IEEE 802.11ac Wave 2 Wi-Fi standard
• Dual band speeds of up to 1167Mbps
• 5GHz speeds of up to 867Mbps and 2.4GHz speeds of up to 300Mbps
• Multi-User, Multiple Input, Multiple Output(MU-MIMO) Technology
• Beamforming technology directs more stable signals directly to your devices
• Full gigabit WAN port enhances potential connection speeds
• Supports DHCP, Static IP, PPPoE, PPTP and L2TP connection modes
• Provides 64/128-bit WEP, WPA, and WPA2 encryption
• QoS function allows for IP address bandwidth control
• Supports IP Address Filtering, Port Filtering, MAC Filtering and URL Filtering
• Multiple SSIDs with group functionality
• Smart UI design allows for configuration via smartphone

Specifications:

• Hardware

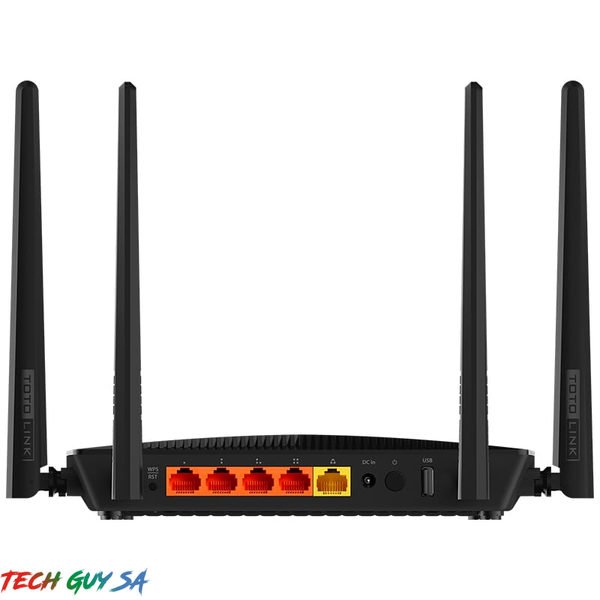

  • Interface: 4x 1000Mbps LAN Ports | 1x 1000Mbps WAN Port
  • Power Supply: 12V DC/1A
  • Button: 1x RST/WPS Button
  • LED Indicator: 1x SYS, 1x 2.4G, 1x 5G, 1x WAN, 4x LAN, 1x USB
  • Antenna: 2x 5dBi detachable antennas (2.4GHz) | 2x 5dBi detachable antennas (5GHz)
  • Dimensions: 12 x 18 x 25.6 cm
• Wireless
  • Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
  • RF Frequency: 2.4GHz/5GHz
  • Data Rate: 2.4GHz: Up to 300Mbps | – 5GHz: Up to 867Mbps
  • EIRP: 2.4GHz < 20dBm | 5GHz < 23dBm
  • Wireless Security: 64/128-bit WEP, WPA, WPA2 and WPA/WPA2
  • Reception Sensitivity (2.4GHz):
    • 11b 11M: -81dBm@8% PER
    • 11g 54M: -68dBm@10% PER
    • 11n HT20 MCS7: -65dBm@10% PER
    • HT40 MCS7: -62dBm@10% PER
  • Reception Sensitivity (5GHz):
    • 11a 54M: -68dBm@10% PER
    • 11n HT20 MCS7: -65dBm@10% PER
    • HT40 MCS7: -62dBm@10% PER
    • 11ac VHT80 MCS9: -51dBm@10% PER
• Software
  • Operation Mode
    • Gateway
    • AP Mode
    • WISP Mode
    • Repeater Mode
  • WAN Type: Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
  • Wireless Functions: Multiple SSIDs, MAC Authentication, WPS
  • Wireless Functions(2.4GHz & 5GHz): Multiple APs, WDS, WPS, Access Control
  • Schedule: Reboot Schedule, Wireless Schedule
  • Management: QoS, DDNS, Access Control, Firmware Upgrade and so on
• Environment:
  • Operating Temperature: 0℃~50 ℃
  • Storage Temperature: -40℃~70 ℃
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

What’s In The Box:

• A3002RU_V2 Wireless Router x1
• Power Adapter x1
• Ethernet Cable x1
• Quick Installation Guide x1
