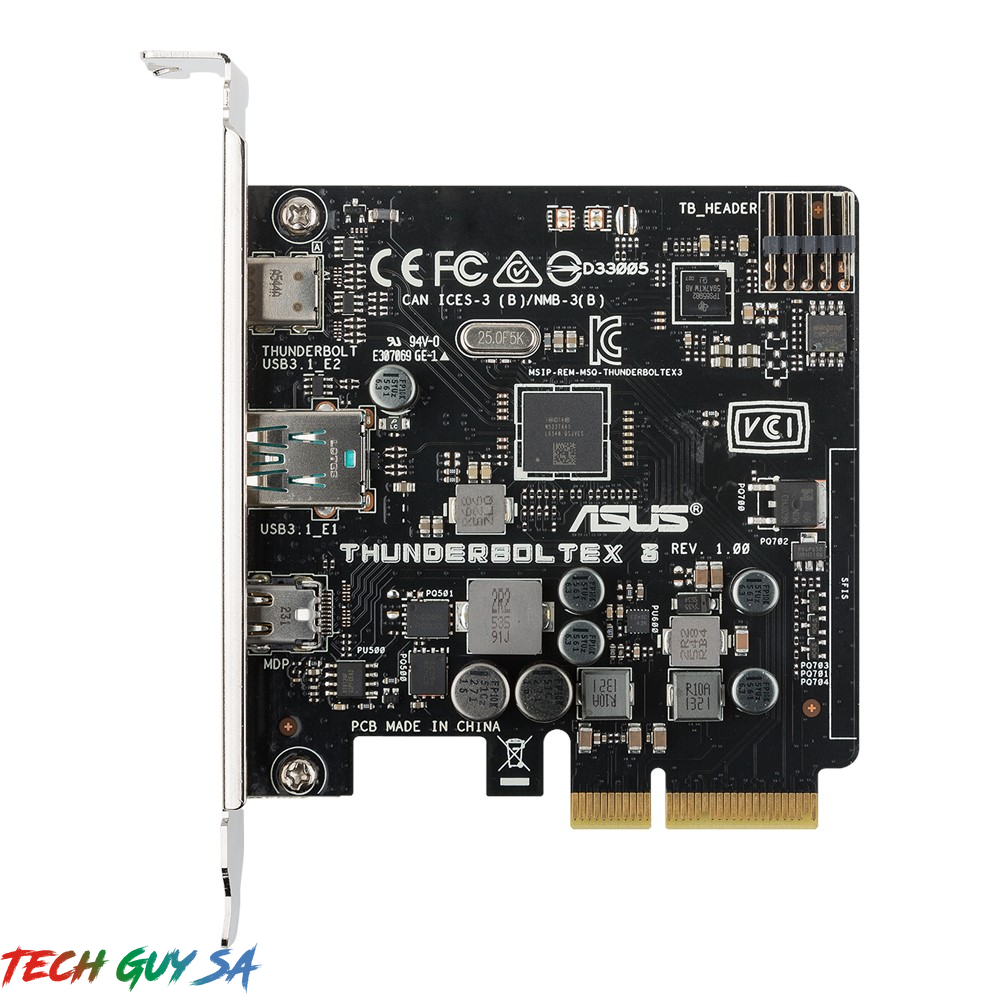

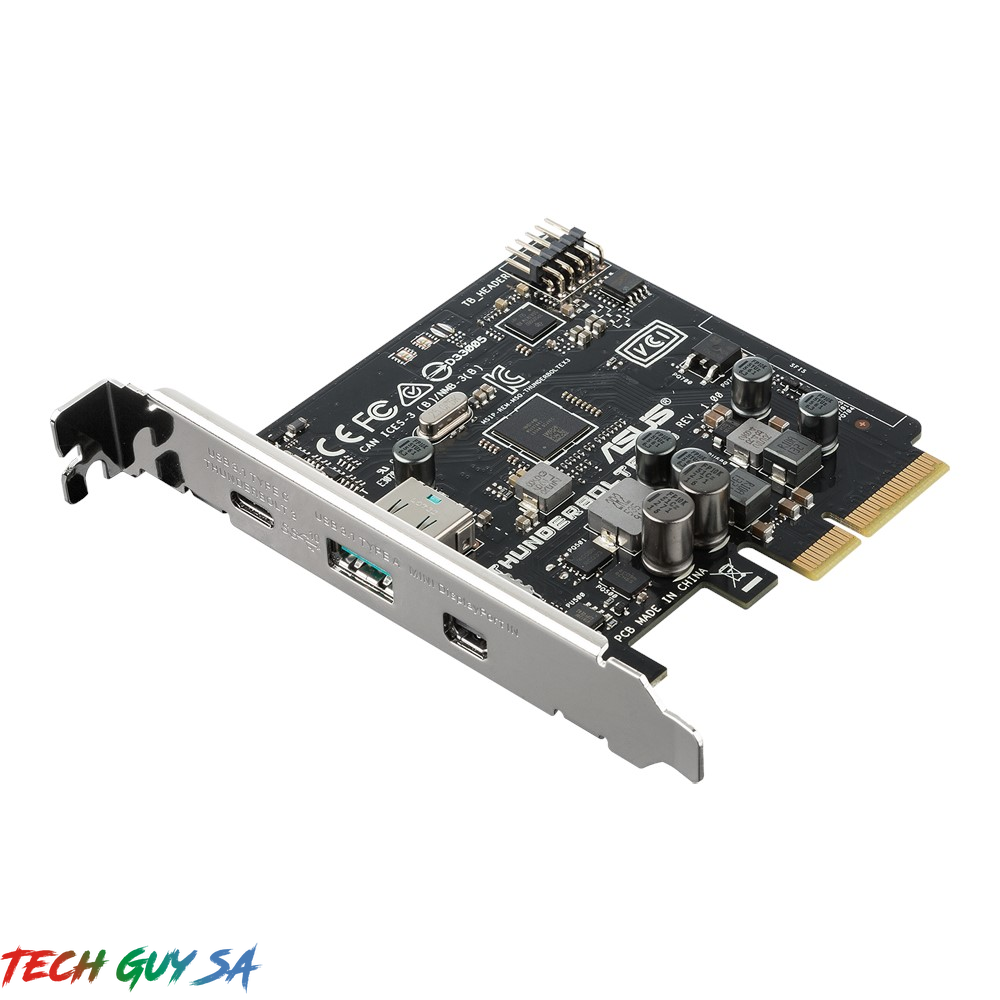

Asus THUNDERBOLTEX 3 – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
Chipset
Intel® Thunderbolt™ 3 Controller
Interface
PCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 slots)

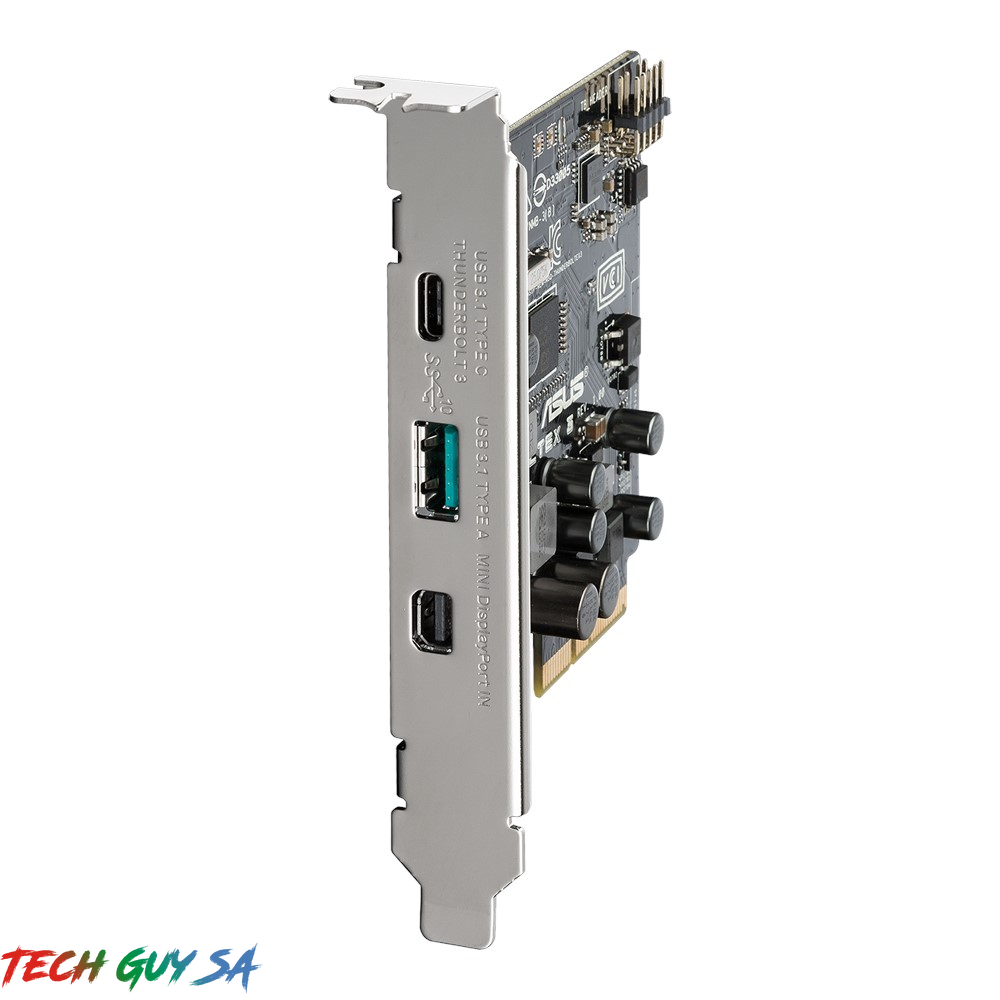

External Connectors
1 x Thunderbolt™ 3 port (USB TypeC)
– up to 40Gbps for Thunderbolt devices
– up to 10Gbps for USB 3.1 Gen 2 devices
– up to 12V/3A, 36W charging support
1 x USB 3.1 Gen 2 port (Type-A, support up to 10Gbps)
1 x 9 pin TB header
Operating System
Windows® 10
Windows® 8.1 64-bit
Windows® 8 64-bit
Windows® 7 32-bit
Windows® 7 64-bit
Accessories
1 x mini DisplayPort Cable (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 3 card)
1 x ASUS TB header cable (connects ASUS motherboard’s TB header with ThunderboltEX 3 card’s TB header)
Support Disc
Thunderbolt™ 3 driver inside
Compatible Model
ROG RAMPAGE VI EXTREME
PRIME X299-DELUXE
PRIME X299-A
TUF X299 MARK 1
TUF X299 MARK 2
PRIME Z370-A
MAXIMUS IX HERO
PRIME Z270-A
PRIME Z270-AR
TUF Z270 Mark 1
Z170-PREMIUM
Z170-DELUXE
Z170-PRO
Z170-A
Z170-AR
SABERTOOTH Z170 MARK 1
SABERTOOTH Z170 S
MAXIMUS VIII EXTREME
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
X99-DELUXE II
X99-DELUXE
X99-DELUXE/U3.1
X99-PRO/USB 3.1
X99-PRO
X99-A/USB 3.1
X99-A
X99-A II
X99-E
SABERTOOTH X99
RAMPAGE V EXTREME/U3.1
RAMPAGE V EXTREME
X99-E WS/USB3.1*
X99-E WS*
VGA
Supports DisplayPort 1.2* with max. resolution 4096 x 2160@60/24Hz
Note
* X99-E WS/USB 3.1 and X99-E WS support ThunderboltEX 3 card at PCIEX16_2 slot.
Dimensions
3.35 inch x 3.94 inch (10cm*8.5cm)
3 – 5 Working days before Dispatch
| Weight | 1 kg |
|---|---|
| Dimensions | 23 × 15.6 × 3.9 cm |
