J5Create JVAW50 Wireless Display HDMI & USB™ Extender
R2,800 Incl VAT
Pay R2,716 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Broadcast Wirelessly
Connect and project your screen wirelessly onto an HDTV or HDMI™ display up to 200 feet away.
Effortlessly Control Remote Devices
The additional USB™ port gives you the ability to remotely access the connected interactive display or USB™ devices such as keyboards and mice.
5G Wireless Technology
Provides a reliable connection while reducing the interference between other wireless devices.
Plug and Play
TRANSMITTER: For all HDMI™-enabled devices
RECEIVER: For all HDMI™-enabled TVs or displays
Antenna 5 dB, AC 2 x 2: Ultra-Low Latency with a Broad Wireless Range
Extend HDMI™ audio/video signals up to 200 ft. (60m) with nearly zero delays (less than 0.06s/60 ms).
Full HD 1080p Resolution
This HDMI™ extender is in compliance with HDMI™ 1.3, HDCP 1.2, and supports resolutions up to 1080p @ 60hz
IR Pass-Through Technology
With its built-in infrared signal, the IR extender cable lets you remotely control your source device with its original remote (play, pause, fast forward, etc.) at the display’s location.
Application
The Wireless Display HDMI™ Extender gives you the ability to wirelessly watch videos from your device on your display, offering ultimate flexibility when it comes to placing your source device and display wherever you prefer.
Living Room
Kitchen
Meeting Room

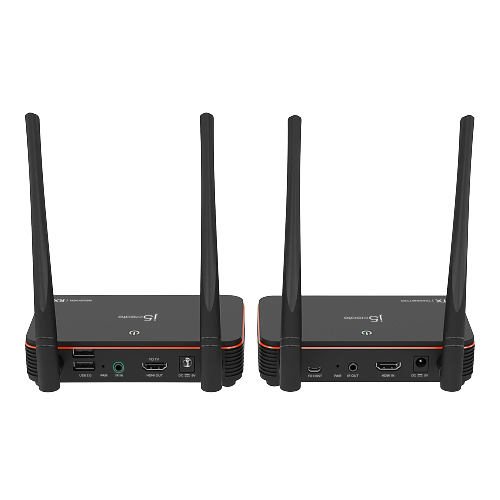

JVAW50TX Wireless Display HDMI™ & Extender
1. USB™ Micro-B to host
2. Pair
3. IR out
4. HDMI™ in
5. DC 5V
6. Security lock slot
7. Wireless and power status indicator
Red: power on
Orange: system booting
Green: system ready
JVAW50RX Wireless Display HDMI™ Extender
1. 2- USB™ 2.0 Type-A, works with a keyboard and mouse.
2. Pair
3. IR in
4. HDMI™ out
5. DC 5V
6. Security lock slot 7. Wireless and power status indicator
Red: power on
Orange: system booting
Green: system ready
Mechanical
About This Product
The JVAW50 HDMI™ over Wireless Extender includes a transmitter and receiver kit. It can send a high definition video and audio signal to an HDMI™ enabled TV set, projector or LCD PC monitor display device with receiver distance up to 60 meters and nearly zero latency.
Users can extend other HDMI™ sources, including DVD players, Blu-ray™ players, PCs, notebooks and gaming machines (ex. Sony® PS4®, Nintendo Switch™). The JVAW50 is fully HDCP compliant via HDMI™, supporting resolutions up to 1080p and stereo digital audio. The extender also supports the transfer of IR remote control signals to the receiver side.
Application
Basic product functions and application scenarios: converts the passage of the HDMI™ or IR signal into a wireless signal, converting it into a flexible means of transmission and reception. It addresses the issue of the TV being too far away from the host by eliminating the need for wires, allowing the TV to be moved outdoors for long distance use.
During meetings, projectors or large touch screens mounted high above can also be used to create a wireless conference room and/or a wireless media environment.
Features
- • Wireless 5G: Stable connection, high quality, and low latency under 60 ms
- • Antenna 5 dB 2 x 2: Longer distance up to 200 ft (60m)
- • Supports the transfer of IR remote control signals
- • Supports 480p/576p/720p/1080p/480i/576i/720i/1080i
- • Supports 1080p HDMI 1.3 and HDCP 1.2
- • A flexible audio/video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- • Compatible with PS4® and Nintendo Switch™ game systems, Blu-ray™ players, set-top boxes and more
- • Supports USB™ 2.0 wireless extender unit (works with USB™ keyboards and mice)
| Warranty | 2 year |
| Input / Output | |
| HDMI™ Connector | Type-A 19-pin female input x1 |
| Power Supply | DC jack 3.5 mm |
| LED | LED x1 (with 3 colors)
Red: Power on Orange: Waiting for pairing Green: TX / RX pairing completed Red flashing light : TX / RX pairing |
| Mechanical | |
| Enclosure Type | Plastic |
| Enclosure Color | Black |
| Enclosure Dimensions
(W x D x H) |
135 x 76 x 33.5 mm |
| Product Weight | 150.5g |
| Power Supply | Input: 100-240V AC, 50-60 Hz, 0.4A
Output: 5V DC, 2A, 10W |
| Power Consumption | 5V DC, 6.5W |
| Operational Environment | |
| Operational Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -40 to +158 °F (-40 to +70 °C) |
| Relative Humidity | 20% to 80% RH, noncondensing |
| Regulatory Compliance | CE, FCC, RCM, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE |
| Technical | |
| HDMI™ Compliance | HDMI™ v1.3 |
| HDCP Compliance | HDCP 1.2 |
| Video Impedance | 100 Ω |
| HDMI™ Audio Formats | Stereo digital audio |
| Video Resolution | Input Resolution Range:
640×480 to1600x1200 and 1920×1080, 480p, 576p, 720p, 1080p @ 60/50Hz Output Resolution Range: – 640×480, 800×600, 1024×768, 1280×768, 1280×800, 1280×1024, 1360×768, 1366×768, 1400×1050, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1080 – HDTV 480p, 576p, 720p, 1080p, 480i, 576i, 720i, 1080i |
| Wireless Frequency Range | IEEE 802.11ac (5 GHz Band I, Band IV, CE only Band I) |
| Wireless Channel Bandwidth | 20 MHz or 40 MHz or 80 MHz |
| RF Output Power | +15 dBm +/-1 dBm |
| Distance | Up to 60 meters |
| Antenna Type | Dual external antenna (+5 dBi) |
| Security | 128/256 bit AES based encryption and WPA2 authentication protocol to protect data. |
| IR Return Frequency | 30 – 60 kHz |
| ESD Protection | Human body model:
air-gap discharge: ±8 kv contact discharge: ±4 kv |
| OVP Protection | Voltage protection up to DC 20 volts |

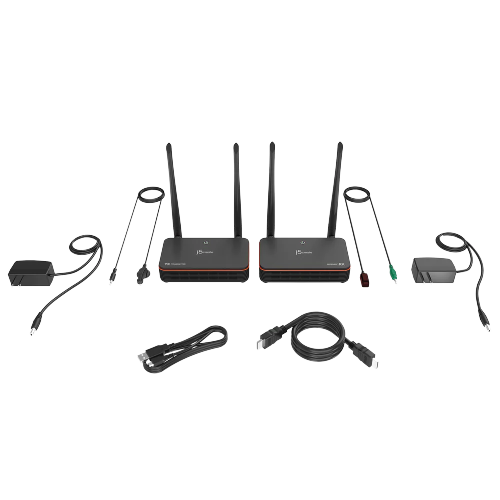

Package Contents
- • 1 x JVAW50 TX /1 x JVAW53 RX
- • 1 x IR blaster cable /1 x IR receiver cable
- • 2 x 5VDC/2A adapter
- • 1 x HDMI™ cable (100 cm)
- • 1 x USB™ Micro-B (100 cm)
- • 1 x Quick Installation Guide
