J5Create JVAW53 Wireless Display HDMI Extender
R3,100 Incl VAT
Pay R3,007 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Broadcast Wirelessly.
Simply connect an HDMI™-enabled source and transmit audio and video wirelessly
Optimized Viewing Experience
Watch your favorite videos in HD anywhere you like without costly cable installation and clutter.
Plug and Play
TRANSMITTER: For all HDMI™-enabled devices
RECEIVER: For all HDMI™-enabled TVs or displays
Ultra-Low Latency with a Broad Wireless Range
Extend HDMI™ audio/video signals up to 200ft. (60m) with nearly zero delays (less than 0.06s/60ms).
* Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
- Full HD 1080p Resolution
- This HDMI™ extender is in compliance with HDMI™ 1.3 and HDCP 1.2, supporting resolutions up to 1080p @60hz
- IR Pass-Through Technology
- With its built-in infrared signal, the IR extender cable lets you remotely control your source device with its original remote (play, pause, fast forward, etc.) at the display’s location
- Application
- The Wireless Display HDMI™ Extender is similar to Bluetooth™ but for videos, offering the ultimate flexibility when it comes to placing your source device and display wherever you prefer.
Living Room
Kitchen
Meeting Room

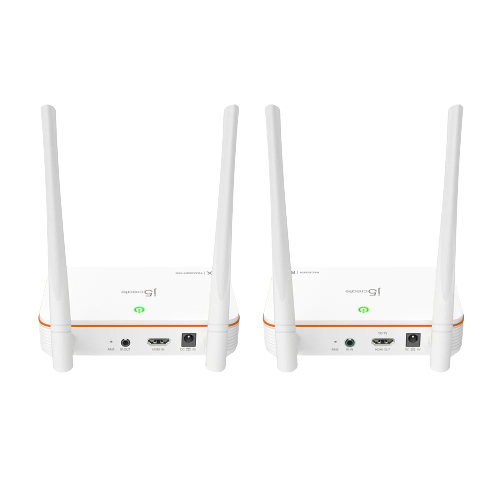

- JVAW53TX Wireless Display HDMI™ Extender
- 1. Pair
2. IR Out
3. HDMI™ in
4. DC 5V Power Supply
5. LED x1 (with 3 colors)
Red: power on
Orange: system booting
Green: system ready
- JVAW53RX Wireless Display HDMI™ Extender
- 1. Pair
2. IR in
3. HDMI™ Out
4. DC 5V Power Supply
5. LED x1 (with 3 colors)
Red: power on
Orange: system booting
Green: system ready
6. Red flashing: TX and RX Pairing
Mechanical
| Encolosure Type | Plastic |
| Enclosure Color | White |
| Encolosure Dimensions | 135 x 76 x 33.5 mm (W x D x H) |
| Product Weight | 150.5g |
| Power Supply | Input: 100-240V AC, 50-60 Hz, 0.4A Output: 5V DC, 2A |
About This Product
Enjoy your favorite videos in HD anywhere you wish without costly cable installation and clutter with this HDMI™ extender kit. It extends audio and video signals up to 200 ft/60m with nearly zero delays (less than 0.06s/60ms), offering the ultimate flexibility when it comes to placing your source device and display wherever you prefer.
Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0, the extender supports up to 1080p60 video resolution, stereo digital audio and is compatible with all HDMI™ enabled devices including DVD/ Blu-ray™ players, laptops, game consoles, and more. With its built-in infrared signal, the IR extender cable (included) gives you the ability to control the source device at the display’s location with its original remote (play, pause, fast forward, etc.).
Features
- • Wirelessly stream from a distant device without the hassle of installing cables
- • Antenna 5 dB, AC 2 x 2 supports up to 200 ft (60m) wireless range
- • Transmit HDMI™ audio and video signal with ultra-low latency (less than 0.06s/60ms)
- 5 GHz wireless technology ensures a stable connection for a smooth streaming experience
- • Built-in infrared signal lets you control video sources with the original remote via included IR extender cable
- • Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0
- • Compatible with all HDMI™ enabled devices including game consoles, set-top boxes, and more
- • Easily create a wireless conference room and/or a wireless media environment
System Requirements:
- • HDMI™ enabled display
- • HDMI™ equipped source device
Special Notes:
- • N/A
Hardware Warranty 2 Years Limited Host Connector 1 – HDMI™ Female Input (Transmitter)
1 – HDMI™ Female Output (Receiver)Power Source Self-Powered LED Indicator Red: power on
Orange: system booting
Green: system readyPorts 1 – HDMI™ Female
1 – 5V DC jack 3.5 mm
1 – IR portIR Yes Performance HDMI™ Compliance HDMI™ v1.3 HDCP Compliance HDCP 1.2 Audio Channel 2.1 via HDMI™ Display Output Supported Resolutions 1920 x 1080
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768 / 720
1024 x 768 / 576
852 x 480
800 x 600
768 x 576
720 x 576
704 x 576
640 x 480RF Output Power +15 dBm +/- 1 dBm Security (Encryption) 128/256-bit AES based encryption and WPA2 IR Return Frequency 30 – 60 kHz ESD Protection Yes
air-gap discharge: ± 8 KV
contact discharge: ± 4 KVOVP Protection Up to DC 20 volts Wireless Protocols Standard IEEE 802.11ac Frequency 5 GHz Band I, Band IV, CE only Band I Range Up to 60 meters Channel Width 20 MHz or 40 MHz or 80 MHz Antenna Type Dual external antenna (+5 dBi) Physical Specifications Color White, Orange Enclosure Type ABS Plastic Cable Length HDMI™ cable ≈ 3.28 ft ( 39.37 in)
IR blaster cable ≈ 4.75 ft (57 in )
IR receiver cable ≈ 4.75 ft (57 in )
DC adapter ≈ 4.58 ft (54.96 in)Product Height 1.31 in (33.5mm) Product Width 5.31 in (135mm) Product Depth 2.99 in (76mm) Product Weight 5.30 oz (150.5g) Storage Temperature -40 to +158 °F (-40 to +70 °C) Storage Humidity < 80% non-condensing Operating Temperature +32 to +104 °F (0 to +40 °C) Operating Humidity < 80% non-condensing Package Contents

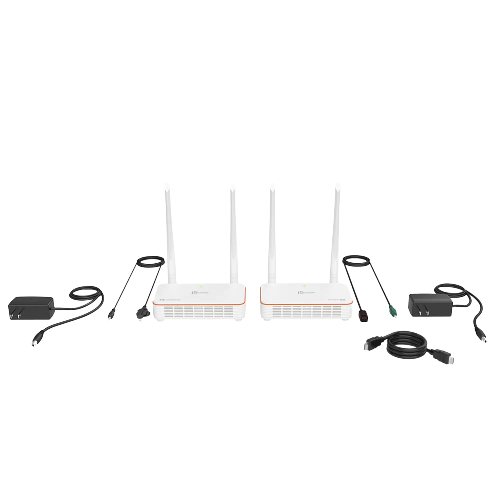

- 1 – JVAW53TX HDMI™ Transmitter
- 1 – JVAW53RX HDMI™ Receiver
- 1 – IR blaster cable
- 1 – IR receiver cable
- 2 – 5V DC/2A adapter
- 1 – HDMI™ cable
- 1 – Quick Installation Guide (QIG)
| Brand | J5Create |
|---|
