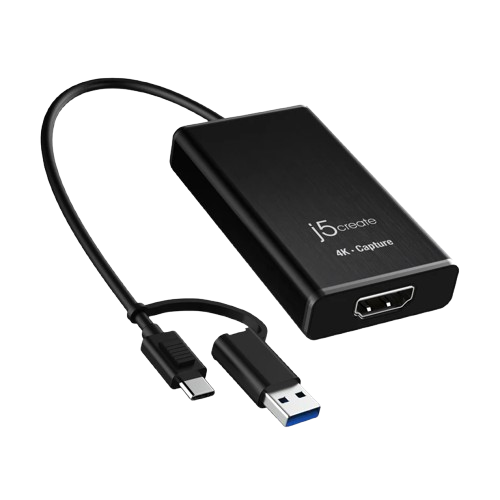

J5create JVA11 4K HDMI Capture Adapter
R1,230 Incl VAT
Pay R1,193 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
About This Product
Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
Features
- • HDMI™ input for capturing
- • 4K video and audio high-performance record through USB-C® 3.2 Gen 1
- • UVC standard – No driver installation required
- • Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
- • Field production made easy with its compact size
Use With Various Devices
Three HDMI™ Input Resolutions For Recording
Ablility To Capture 4K@30 FPS, 2K60 FPS, 1080P 120 FPS
Ideal for live streaming, broadcasting, and gaming
It works with OBS™, XSplit®, CameraFi™, QuickTime®, and other video streaming software.
Compatible with PlayStation™ 4/5, Xbox™ Series X/S, Xbox™ One X/S, and Switch™ gaming consoles.
Third-Party Software Support
Capture and Record in 4K Resolution For a Clear Visual Experience
Stream with Ultra-Low Latency and a High-Performance USB-C® 3.2 Connection
No Driver Installation Required
Compliance with the UVC/UAC Standard
USB-C® Cable Includes a Type-A Adapter for Added Compatibility
Ideal For a Variety Of Uses
• Gaming • Video Conferencing • Live Streaming • Broadcasting
JVA11 Specifications
- • Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
- • Windows® 7 or later
• macOS® 10.12 or later
• Android™ 8.1 or later - • Chrome OS™ with UVC support
- • CPU: Intel® Core™ i7 6700HQ & above
- • GPU: NVIDA® GTX 960M & above
- • RAM: 8 GB or higher
Recommended software
- • Windows®: OBS™, XSplit® Broadcaster
- • Mac®: OBS™, QuickTime®
- • Android™: CameraFi™
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 – USB-C® 3.2 Gen 1 Female (Type-A to USB-C®) |
| Video Input | 1 – HDMI™ Female |
| Video Output | N/A |
| Audio Input | 1 – HDMI™ Female |
| Audio Output | N/A |
| Video Switcher | N/A |
| Audio Switcher | N/A |
| Power Source | N/A |
| Ports | 1 – USB-C® 3.2 Gen 1 (Host) 1 – HDMI™ Input |
| Performance | |
| HDMI™ Input Supported Resolutions | 3840 x 2160 @ 30 |
| Maximum Capture Refresh Rate | 4K30 fps, 2K60 fps, 1080p120 fps |
| Maximum Display Refresh Rate | N/A |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Microphone | N/A |
| Headset | N/A |
| Headset | N/A |
| Compression | USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0 USB™ 2.0: YUV4:2:0 |
| Compression | USB™ 3.0: 3840 x 2160 @ 30 USB™ 2.0: 1280 x 720 @30 |
| HDR Supported | No |
| Power | |
| Power Delivery | N/A |
| Power Consumption | ≤ 530mA |
| Input Current | 1.5A |
| Input Voltage | 5V |
| Output Voltage | N/A |
| Power Consumption | ≤ 530mA |
| Physical Specifications | |
| Color | Black |
| Enclosure Type | Aluminum |
| Cable Length | 7.87 in. (20 cm) |
| Product Height | 2.83 in. (72 mm) |
| Product Width | 1.61 in. (41 mm) |
| Product Depth | 0.56 in. (14.14 mm) |
| Product Weight | 1.94 oz (55g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operation Temperature | 32 to 104°F (0 to 40°C) |
| Operation Humidity | < 80% non-condensing |
Special Notes
- • N/A
Package Contents
- • 1 – JVA11 4K HDMI™ Capture Adapter
- • 1 – Quick Installation Guide (QIG)
| Brand |
J5Create |
|---|
