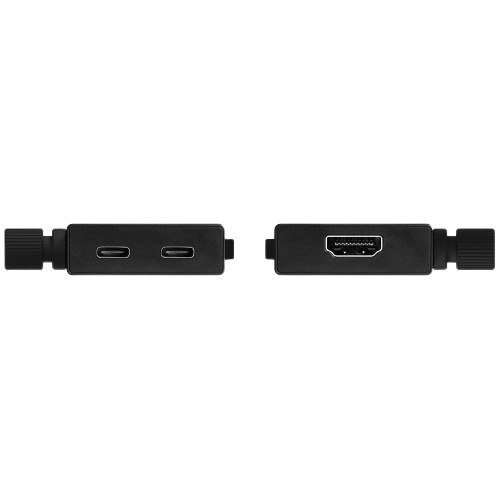

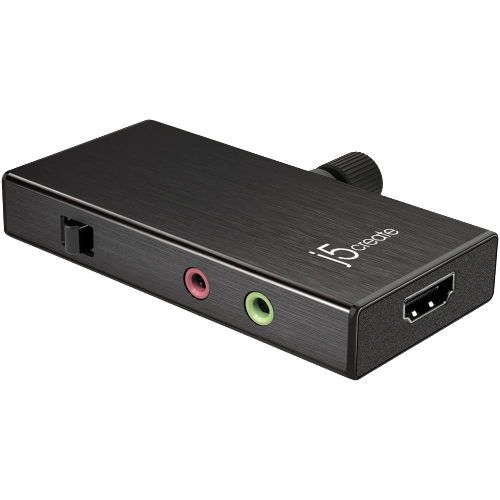

J5Create JVA02 Live Capture Adapter HDMI to USB-C with Power Delivery
R1,230 Incl VAT
Pay R1,193 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
About This Product
Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.- • Uncompressed mode gives excellent video quality and reduces CPU loading
- • Power Delivery 3.0 allows you to live stream without interruption
- • Professional listening and microphone mixer function
- • Low power consumption with high performance

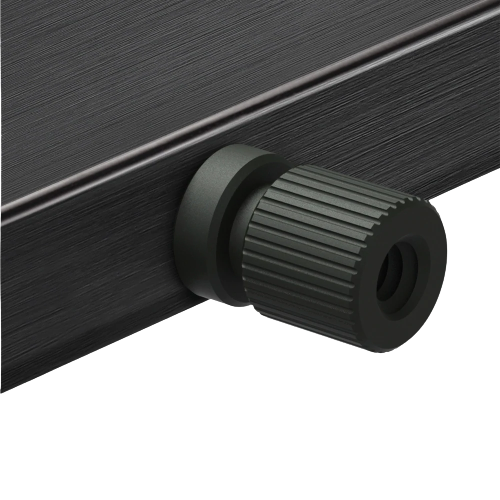

- • Includes camera screws to attach to cold shoe adapter
- • Full HD video and audio high-performance record/playback through USB-C™ 3.1
- • Capture resolution up to 1080p @ 60 fps

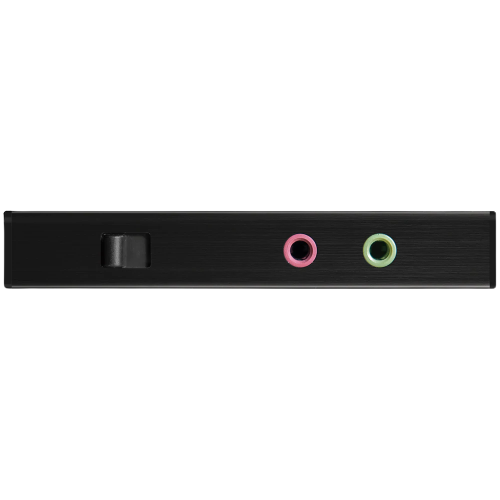

- • Microphone input & Audio output
- • 3 audio modes: Mic/ HDMI™/ Mix
- • Aluminum design
| Specifications | |
| OS | Driver Free: Windows® 8.1/10, macOS®, Linux® Driver: |
| Resolution |
|
| Audio Frequency | 48 kHz |
| Power Delivery | PD3.0, 60W |

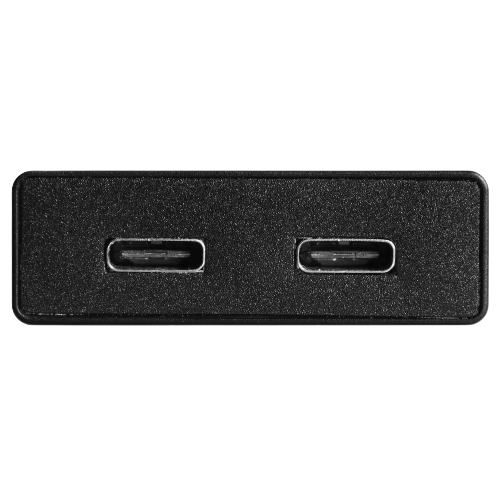

| USB™ | Interface: USB Type-C™ 3.1 Gen1 Device: UAC, UVC Mode: Isochronous |
| MIC | Stereo microphone supported 24-bit sigma-delta ADC |
| Headset | 40 mW output power into 16Ω at 3.3V THD -75 dB at 20 mW SNR 90 dB with 16Ω load |
| Compression | USB™ 2.0: MJPG USB™ 3.0: MJPG / YUV 4:2:2 |
| Power Consumption | USB™ 2.0: 220 mA (5V) USB™ 3.0: 280 mA (5V) |
| Physical Specifications | |
| Case Material | Aluminum |
Package Contents
- JVA02 Live Capture UVC HDMI™ to USB™ Video Capture
- Cold shoe x 2
- USB-C™ 2.0 to USB-C™ cable
- USB-C™ 3.0 to USB™ Type-A cable
- User Manual
- Quick Installation Guide
| Brand | J5Create |
|---|
