Multiple Ports for Greater Efficiency
Features 2 x HDMI™, 2 x USB™ Type-A ports, Gigabit Ethernet, and PD 100W pass-through charging
Integrated USB-C® Mini Dock
Offers support for dual HDMI™, network access, and three USB™ ports
8-in-1 Functions

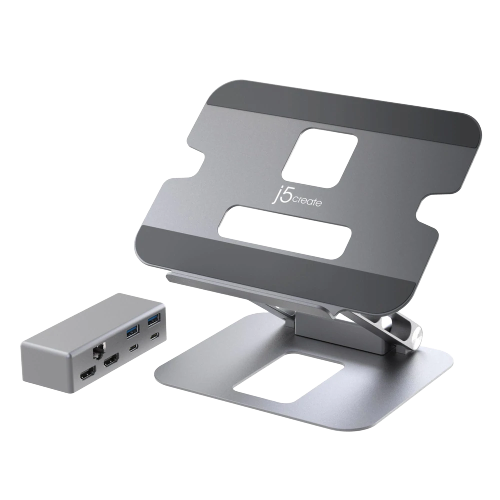

Laptop stand with multi-function docking station
Data Transfer 5Gbps
2 USB™ Type-A ports for data transfer and syncing, or charging your USB™ devices
Power Delivery 100W
1 USB-C® port with 5Gbps data transfer and support for 100W power pass-through
Gigabit Ethernet Port
Reliable Network Connectivity

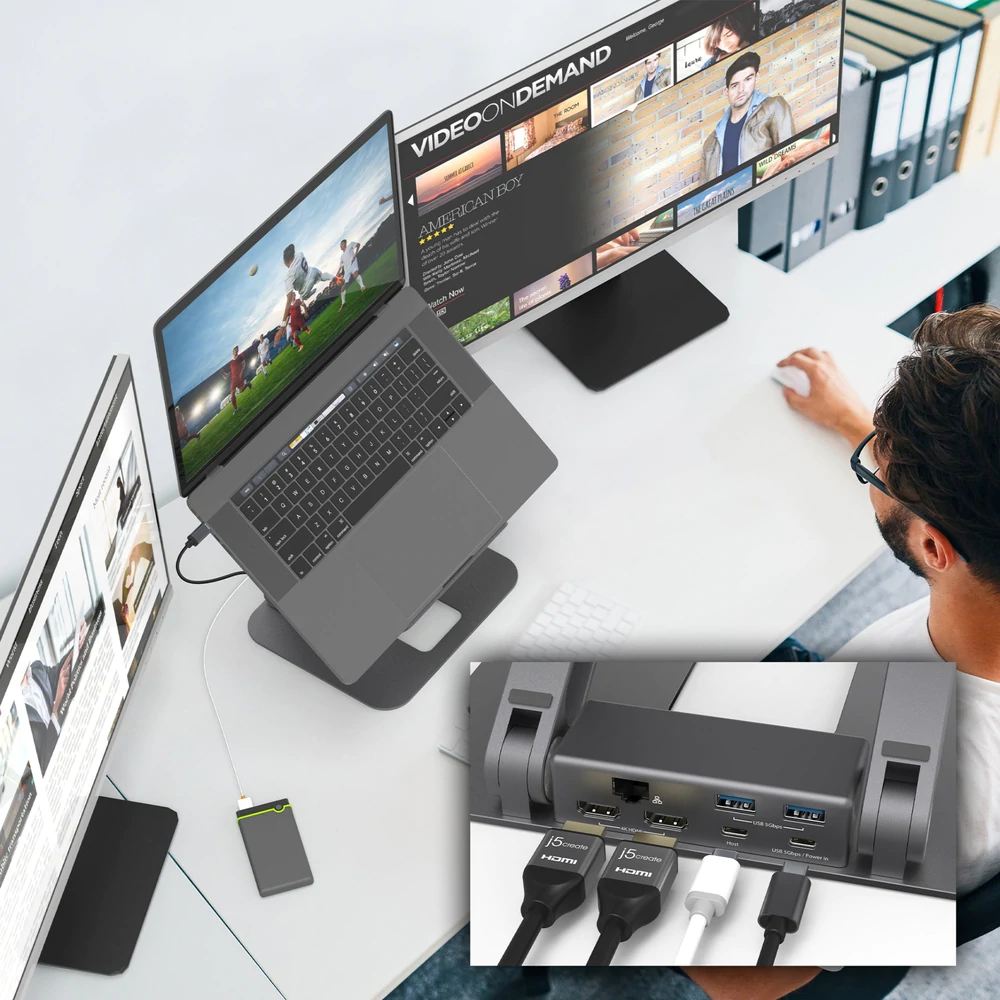

Create a Dual Workstation
Easily connect your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode to a 4K 30Hz display
Adjustable Angle and Height Options for Comfort

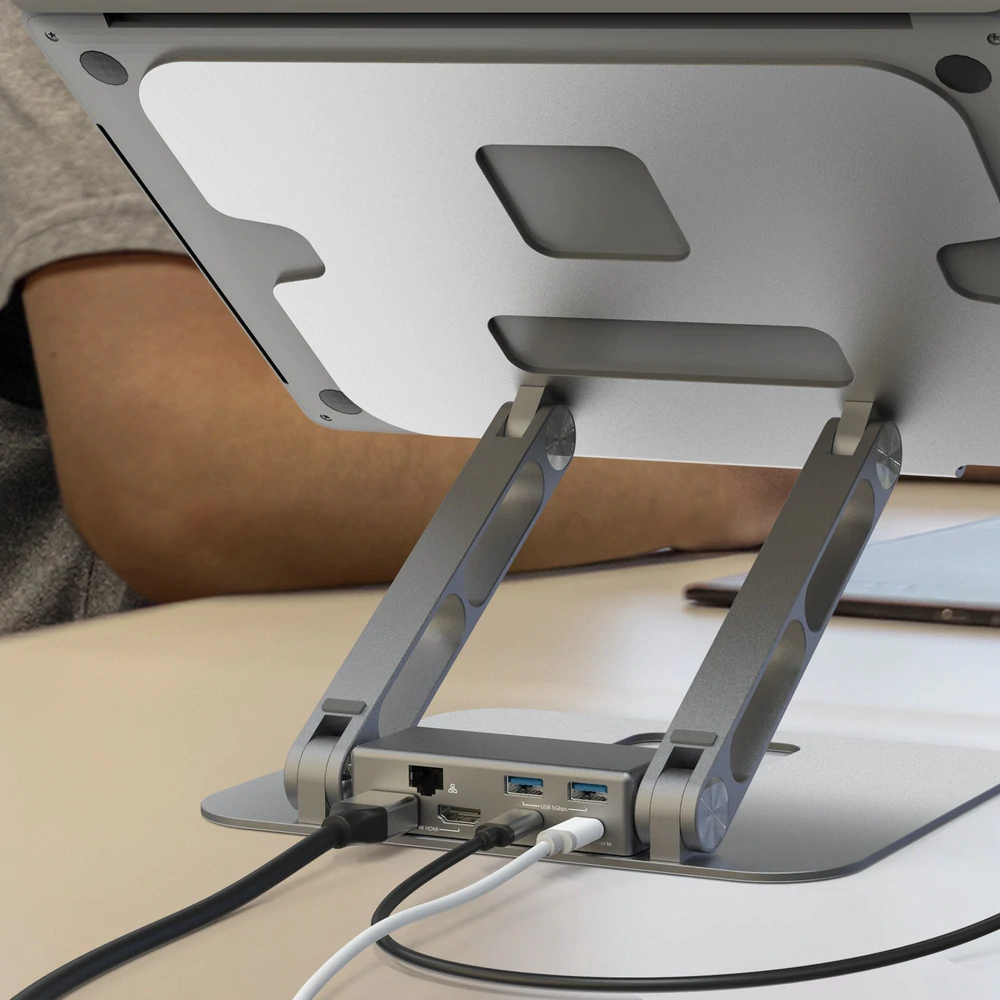

Dock Attaches Magnetically For Easy Assembly And Independent Use
Open Design for Maximum Air-Flow and Heat Dissipation
Nonslip Protective Pads
Help Prevent Slipping and Scratches
Aluminum Construction
With a weight capacity of up to 9 lbs. (4 kg)
Durable Bearings and Axis
Made of high quality material to ensure stability
Universal Compatibility
Fits most laptops up to 16 in.
Cable Management For Better Desk Organization

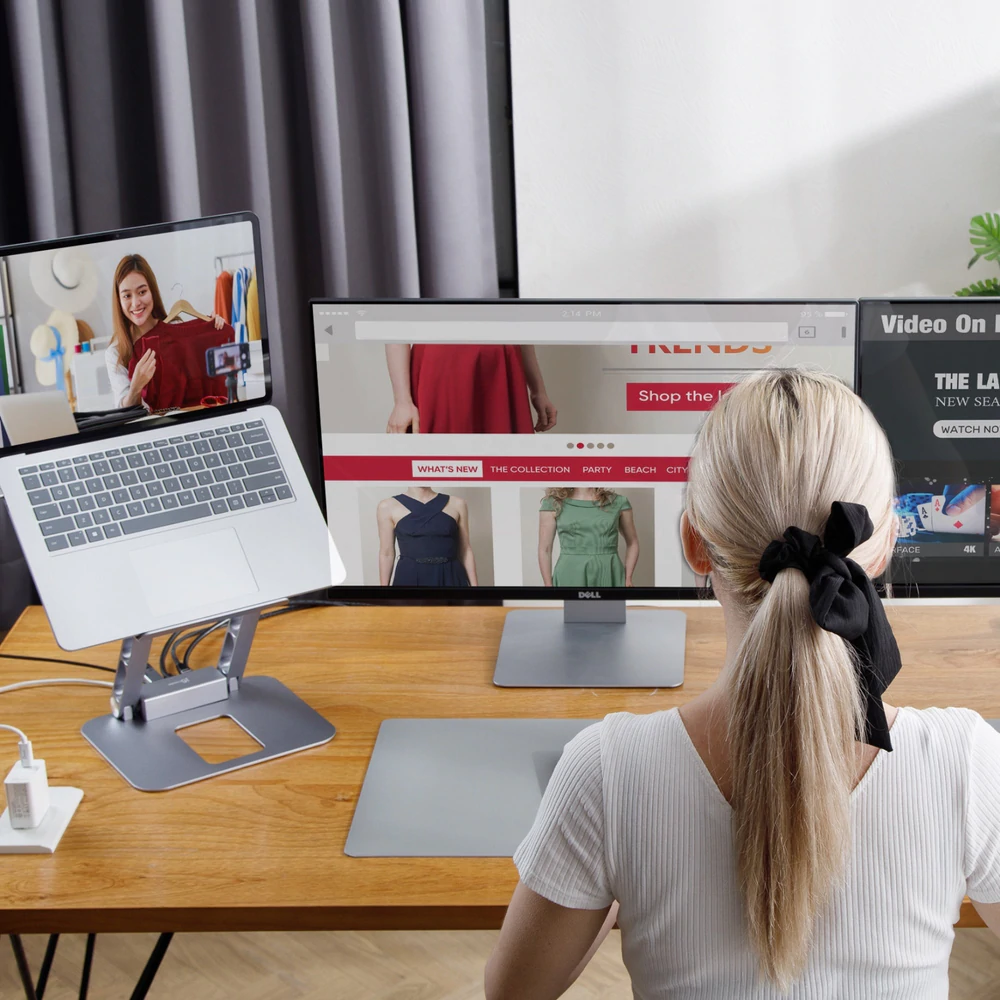

Comfortable Viewing Angle
Adjustable viewing angles and heights help reduce eye strain and improve posture
Comparison for the JTS Series
-
About This Product

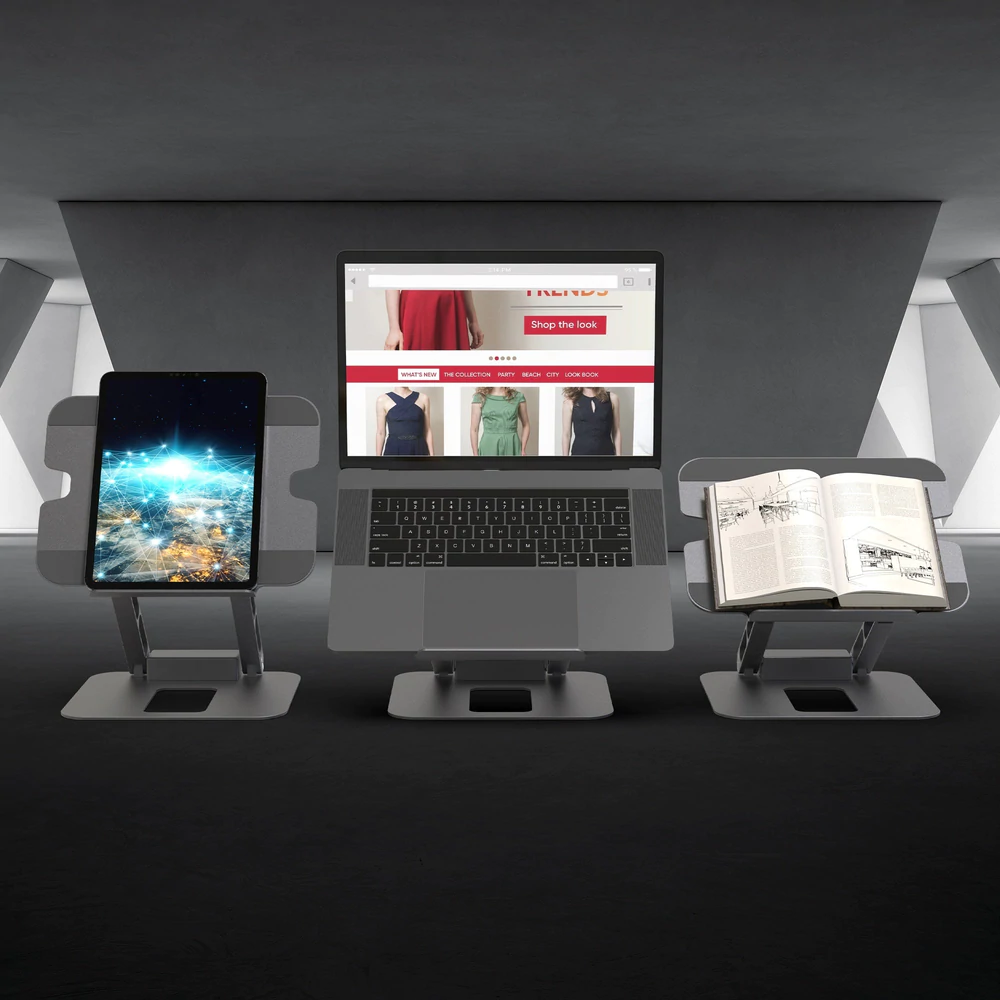

This multi-angle stand is made of durable aluminum and can support a variety of items in addition to a laptop including tablets, books, etc. Its foldable design allows for easy storage or transport, while the viewing angles and heights can be adjusted to fit your needs and optimize your viewing experience. This versatile stand gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
The integrated USB-C® mini dock lets you easily create a workstation with one 4K HDMI™ or Dual 1080p HDMI™ display outputs, a Gigabit Ethernet port for easy network access, and two USB™ 5Gbps Type-A downstream ports, as well as a USB-C® port that supports 5Gbps data transfer rate and up to 100W pass-through, providing all the connectivity you need for enhanced productivity and to connect your peripherals.
Features
- • Fits most laptops up to 16 in.
- • Aluminum construction with a weight capacity of up to 9 lbs. (4 kg)
- • Adjustable viewing angles and heights help reduce eye strain and improve posture
- • Nonslip protective pads help prevent slipping and scratches
- • Foldable design for easy storage and portability
- • Supports 4K HDMI™ or dual 1080p HDMI™ display on compatible USB-C® laptops with DisplayPort™ 1.2 alt mode with MST support*
- • Integrated USB-C® mini dock features a 4K HDMI™ output and three USB™ SuperSpeed 5Gbps ports
- ◦ Easily create a 4K HDMI™ or dual 1080p HDMI™ setup with your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode
- ◦ Two 5Gbps Type-A ports for data transfer and syncing, or charging your USB™ devices
- ◦ One USB-C® port with 5Gbps data transfer and support for 100W power pass-through
- ◦ Reliable network connectivity via the Gigabit Ethernet port
-
-
System Requirements
- • Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device. - • DisplayPort™ v1.2 required on graphics card or video source to support 4K resolution @ 30 Hz.
- • The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.2 to achieve dual-monitor configuration
- • The MST protocol is not currently supported by macOS®
*macOS® only supports SST, which means all connected monitors will show the same content.
Hardware Warranty 2-Year Limited Number of Tiers N/A Adjustable Angle N/A Maximum Weight Capacity 9 lbs. (4 kg) Additional Storage No Assembly Required No Docking Station Included Yes Host Connector 1 – USB-C® Female Video Output 2 – HDMI™ Female Power Source Bus-powered or self-powered Network Interface Yes Audio Supported Yes Ports 1 – USB-C® 5Gbps (Data transfer & Power Delivery 3.0) 2 – USB™ 5Gbps Type-A
2- HDMI™ (4K for Single display, 1080p for Dual display)
1 – Gigabit Ethernet
Performance Maximum Display Resolution 3840 x 2160 Maximum Display Refresh Rate 4K @ 30 Hz Displays Supported 2 Wide Screen Supported Yes Audio Channel 2.1 via HDMI™ Power Power Delivery Up to 100W Power Consumption ≤ 900 mA Input Current Up to 5A Input Voltage Up to 20V Output Current Up to 4.5A Output Voltage Up to 20V Physical Specifications Color Space Grey Stand Material Aluminum Enclosure Type Aluminum Cable Length 23.6 in. (60 cm) Product Height 11.4 in. (290 mm) Product Width 8.9 in. (226 mm) Product Depth 2.08 in. (53 mm) Product Weight ≈ 2.89 lbs. (1.31 kg) (including cable) Operating Temperature 30 to 116°F (0 to 30°C) Operating Humidity < 85% non-condensing Storage Temperature 0 to 155°F (-10 to 65°C) Storage Humidity < 85% non-condensing Special Notes
- • A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
- • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
Package Contents
- • 1 – JTS427 Multi-Angle Dual HDMI™ Docking Stand
- • 1 – USB-C® 3.2 male to male host cable
- • 1 – Quick Installation Guide (QIG)
- • Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0
-
