Multiple Ports for Greater Efficiency
Features a 4K HDMI™, 2 x USB™ Type-A ports and PD 100W pass-through charging
Integrated USB-C® Mini Dock
4K HDMI™ output and three USB™ SuperSpeed 5Gbps ports
6-in-1 Functions
Laptop stand with multi-function docking station
Data Transfer 5Gbps
2 USB™ Type-A ports for data transfer and syncing, or charging your USB™ devices
Power Delivery 100W
1 USB-C® port with 5Gbps data transfer and support for 100W power pass-through

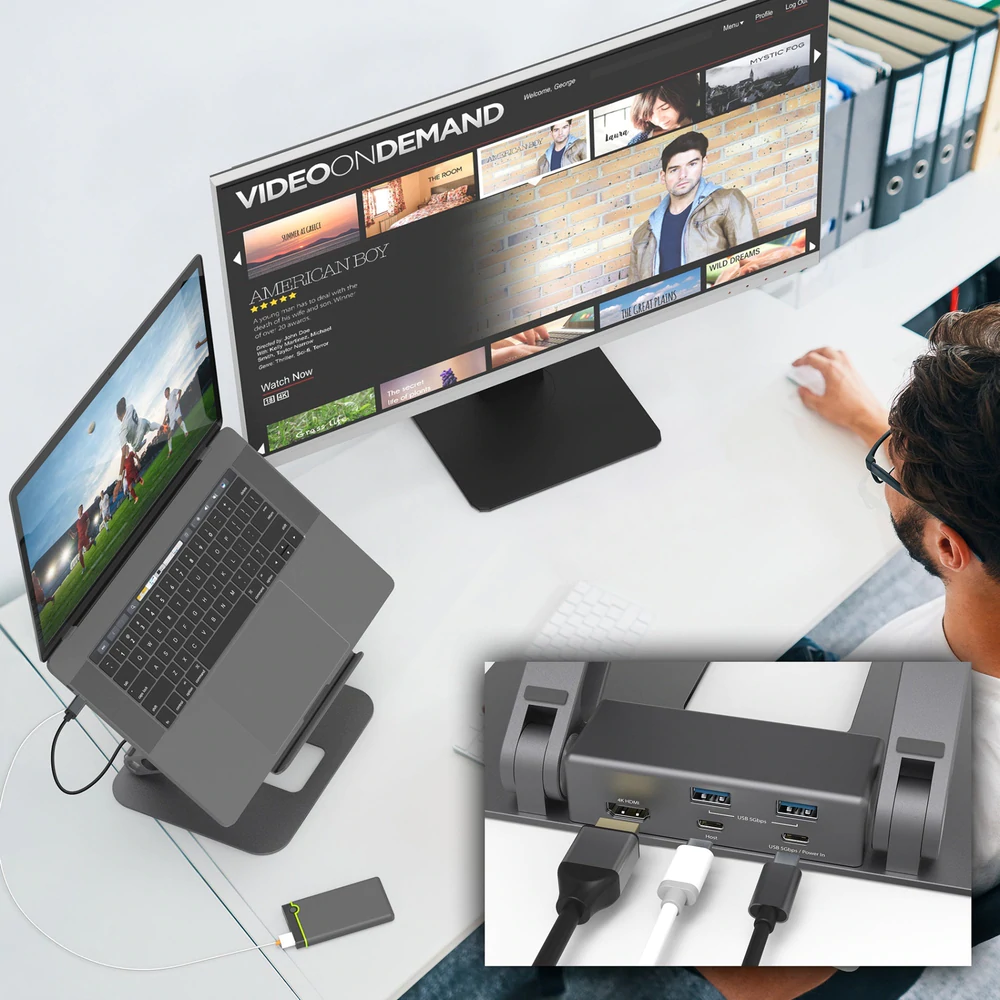

Create a 4K Display Workstation
Easily connect your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode to a 4K 30Hz display
Adjustable Angle and Height Options for Comfort

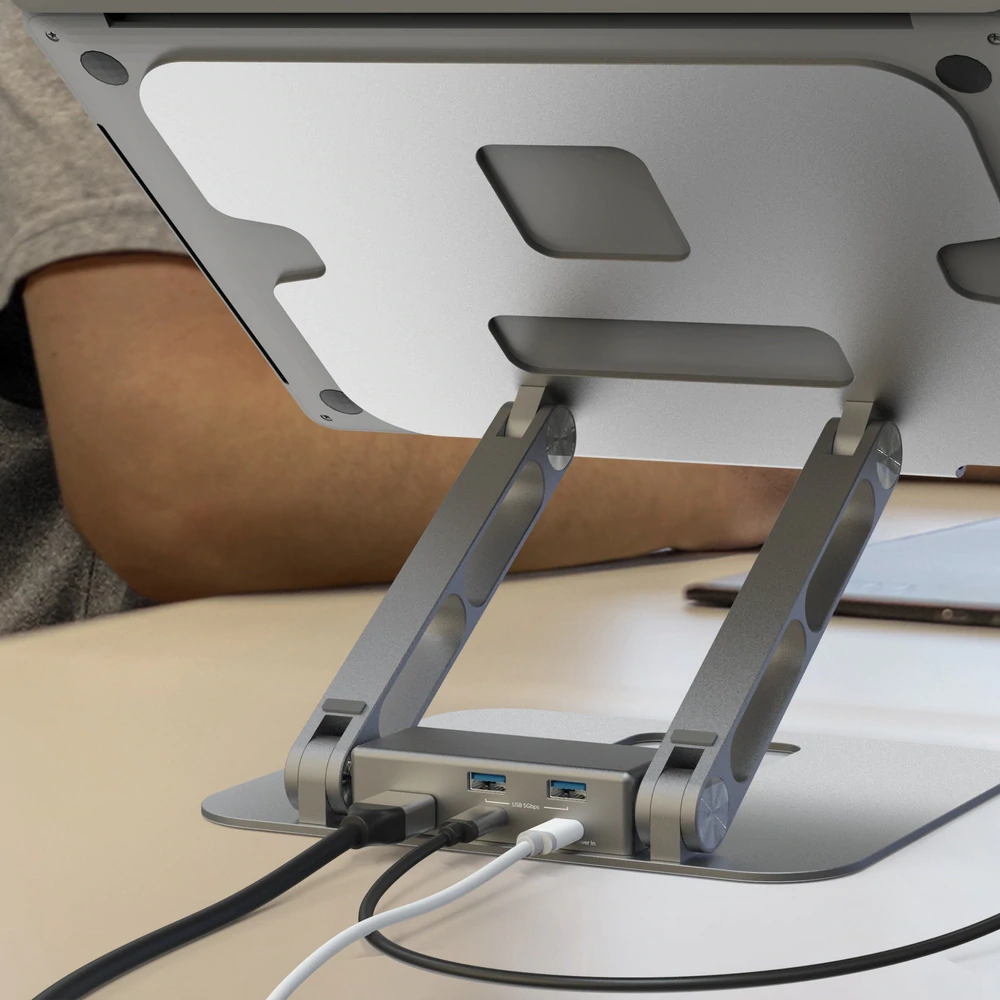

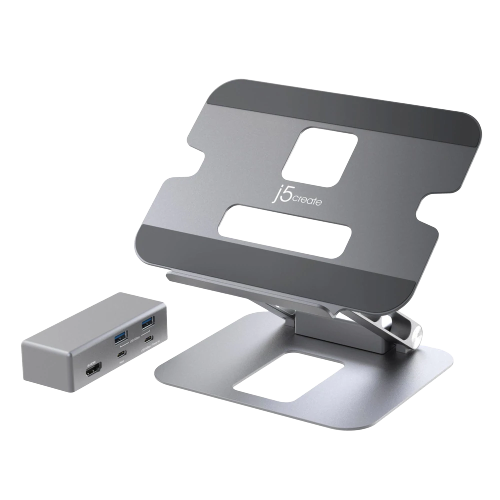

Dock Attaches Magnetically For Easy Assembly And Independent Use
Open Design for Maximum Air-Flow and Heat Dissipation
Nonslip Protective Pads
Help Prevent Slipping and Scratches
Aluminum Construction
With a weight capacity of up to 9 lbs. (4 kg)
Durable Bearings and Axis
Made of high quality material to ensure stability
Universal Compatibility
Fits most laptops up to 16 in.
Cable Management For Better Desk Organization

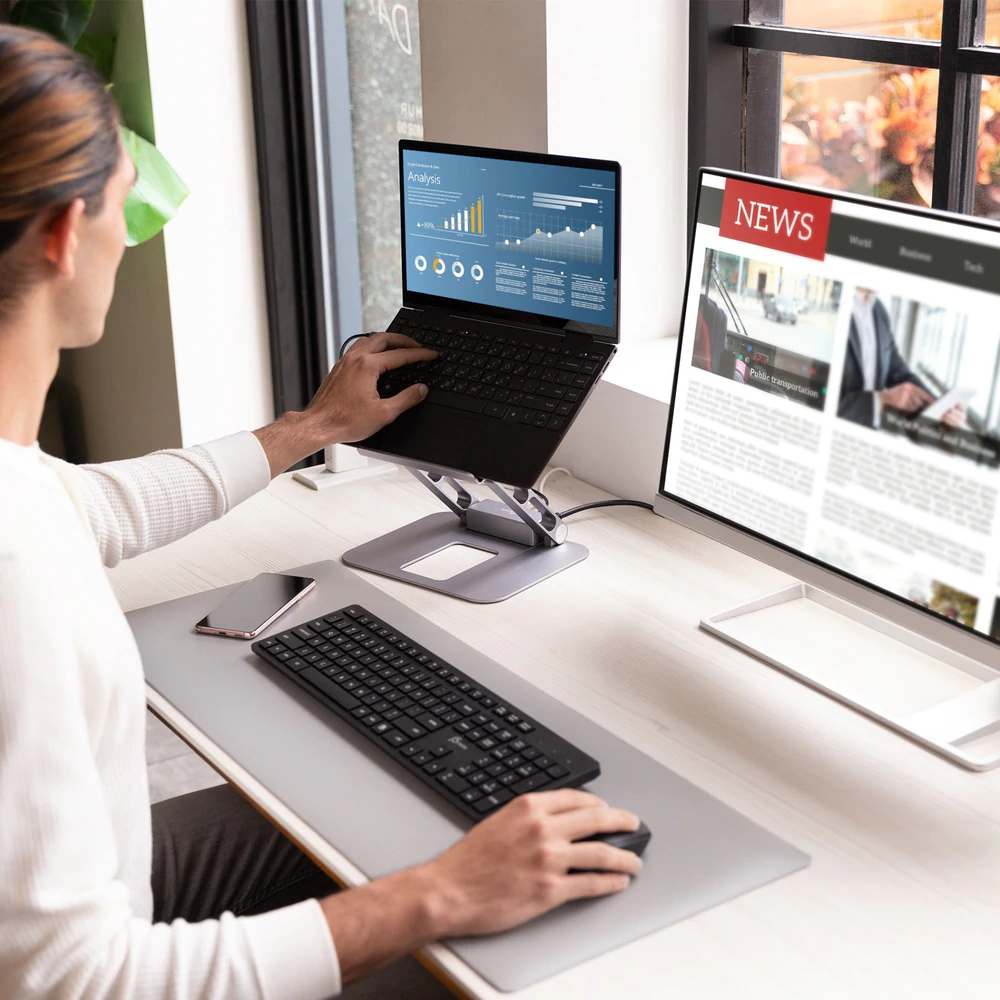

Comfortable Viewing Angle
Adjustable viewing angles and heights help reduce eye strain and improve posture
Comparison for the JTS Series
-
About This Product

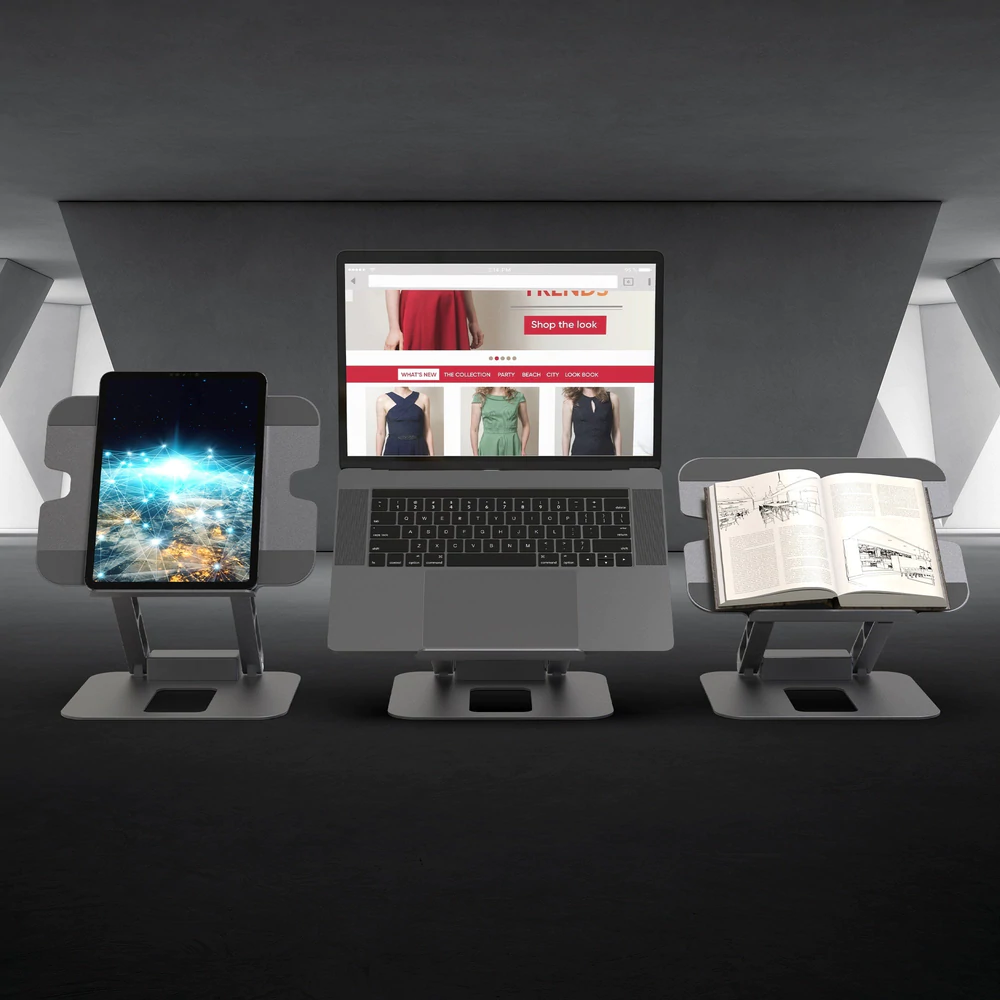

This multi-angle stand is made of durable aluminum and can support a variety of items in addition to a laptop including tablets, books, etc. Its foldable design allows for easy storage or transport, while the viewing angles and heights can be adjusted to fit your needs and optimize your viewing experience. This versatile stand gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
The integrated USB-C® mini dock features a 4K HDMI™ output, two USB™ 5Gbps Type-A ports, as well as a USB-C® port that supports 5Gbps data transfer rate and up to 100W pass-through, providing all the connectivity you need for enhanced productivity and to connect your peripherals.
Features
- • Fits most laptops up to 16 in.
- • Aluminum construction with a weight capacity of up to 9 lbs. (4 kg)
- • Adjustable viewing angles and heights help reduce eye strain and improve posture
- • Nonslip protective pads help prevent slipping and scratches
- • Foldable design for easy storage and portability
- • Integrated USB-C® mini dock features a 4K HDMI™ output and three USB™ SuperSpeed 5Gbps ports
- ◦ Easily connect your Thunderbolt™ 3/4 or USB-C® laptop with DP™ Alt mode to a 4K 30Hz display
- ◦ 2 x Type-A ports for data transfer and syncing, or charging your USB™ devices
- ◦ 1 x USB-C® port with 5Gbps data transfer and support for 100W power pass-through
System Requirements
- • Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device. - • DisplayPort™ v1.2 required on graphics card or video source to support 4K resolution @ 30 Hz.
Hardware | |
Warranty | 2-Year Limited |
Number of Tiers | N/A |
Adjustable Angle | Yes |
Maximum Weight Capacity | 9 lbs. (4 kg) |
Additional Storage | No |
Assembly Required | No |
Docking Station Included | Yes |
Host Connector | 1 – USB-C® Female |
Video Output | 1 – HDMI™ Female |
Power Source | Bus-powered or self-powered |
Network Interface | Yes |
Audio Supported | Yes |
Ports | 1 – USB-C® 5Gbps (Data transfer & Power Delivery 3.0)
2 – USB™ Type-A 5Gbps 1 – 4K HDMI™ |
Performance | |
Maximum Display Resolution | 3840 x 2160 |
Maximum Display Refresh Rate | 4K @ 30 Hz |
Displays Supported | 1 |
Wide Screen Supported | Yes |
Audio Channel | 2.1 via HDMI™ |
Power | |
Power Delivery | Up to 100W |
Power Consumption | ≤ 900 mA |
Input Current | Up to 5A |
Input Voltage | Up to 20V |
Output Current | Up to 4.5A |
Output Voltage | Up to 20V |
Physical Specifications | |
Color | Space Grey |
Stand Material | Aluminum |
Enclosure Type | Aluminum |
Cable Length | 23.6 in. (60 cm) |
Product Height | 11.4 in. (290 mm) |
Product Width | 8.9 in. (226 mm) |
Product Depth | 2.08 in. (53 mm) |
Product Weight | ≈ 2.89 lbs. (1.31 kg) (including cable) |
Operating Temperature | 30 to 116°F (0 to 30°C) |
Operating Humidity | < 85% non-condensing |
Storage Temperature | 0 to 155°F (-10 to 65°C) |
Storage Humidity | < 85% non-condensing |
Special Notes
- • A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
- • To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
Package Contents

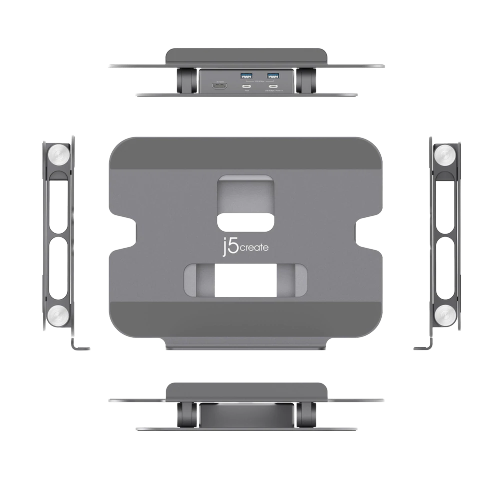

- • 1 – JTS327 Multi-Angle 4K Docking Stand
- • 1 – USB-C® 3.2 male to male host cable
- • 1 – Quick Installation Guide (QIG)
