About This Product
- • Full 1080p resolution
- • USB™ 3.0 host connection
- • USB™ 3.0 charging connection x2
- • Gigabit Ethernet connection
- • VGA connection
- • Audio connection
- • Microphone connection
- • HDMI™ connection
- • USB™ 3.0 connection x2
- • Use up to 6 adapters with Windows®
- • Use up to 4 adapters with Mac®
- • Solid aluminum construction
- • Simple, easy to use and install

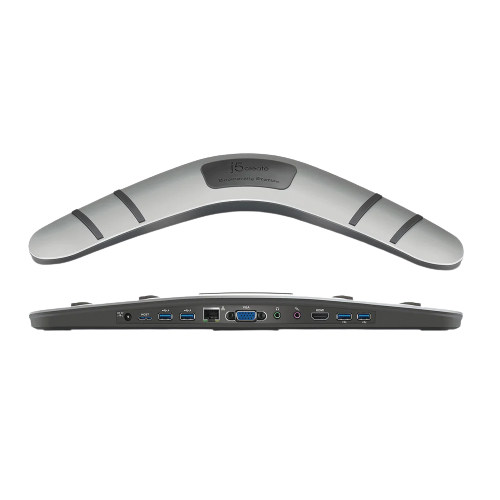

The JUD481 USB™ 3.0 Boomerang Docking Station enables you to add a second monitor instantly via HDMI™ and VGA connectors. When you need to get things done fast, simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone, etc. to your laptop with a single USB™ 3.0 cable. It is the perfect solution for expanding virtually any laptop into a full-sized workstation.
Interface | |
Host Interface | USB™ 3.0 Micro B Female connector |
Cable | USB™ 3.0 Micro B to Type A |
Video Interface | VGA-DB 15 pin Female connector |
Standard HDMI™ Female connector (with Audio) |
|
Ethernet | RJ-45 Female connector (Gigabit Ethernet) |
USB™ Ports |
(Two ports that provide additional power of up to 2A for fast-charging an iPad, smartphone, tablet, or similar products) |
Audio Jack | Microphone: 3.5 mm stereo audio in Speaker: 3.5 mm stereo audio out |
Power | |
Power Adapter | Input: AC 100-240V, 50 – 60 Hz Output: DC 5V/3A (US/JP/TW) or 5V/4A (EU/UK/AU/CN) |
Power Mode | Self-Powered |
Functions | |
Display | Video Playback:1080p Display Resolution: 2048 x 1152 @ 32 bit Display Modes: Primary, Extended, Mirror Display Rotation: 0°, 90°, 180°, 270° |
Ethernet | Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes:
|
Physical Specifications | |
Dimensions | Main body: 13.77 (W) x 1.18 (H) x 4.76 (D) in. 35(W) x 3(H) x12.1(D) cm Cable length: 23.62 in. (60 cm) |
Weight | Approximately 0.38 lbs. (0.174 kg) |
Housing Material | ABS Plastic |
Resolutions and Color Depth
System Requirements
- Microsoft® Windows® 7 or higher (32 bit or 64 bit)
- macOS® X 10.8 or later
- Available USB™ 3.1/3.0/2.0 port (USB™ 3.1/3.0 recommended)
Minimum Requirements
- CPU: Intel® Core i3 Dual Core 2.8 GHz
- RAM: 2 GB memory or higher
Playback Requirements
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core i5 Quad Core
- RAM: 4 GB memory or higher
Full Screen Video Playback
- Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core i7 Quad Core
- RAM: 8 GB memory or higher
- Graphics card: Intel® HD Graphics 4000/ ATI™ HD 7xxx/ NVIDIA® 5XXM or higher
Note for Video Player:
- Windows® 8.1/8/7 users: Windows® Media Player is recommended for video playback.
- Windows® 10 users: “Movies & TV” is recommended for video playback
Package Contents
- JUD481 USB™ 3.0 Boomerang Docking Station
- USB™ 3.0 cable
- Power Adapter (5V/3A or 5V/4A)
- Quick Installation Guide
