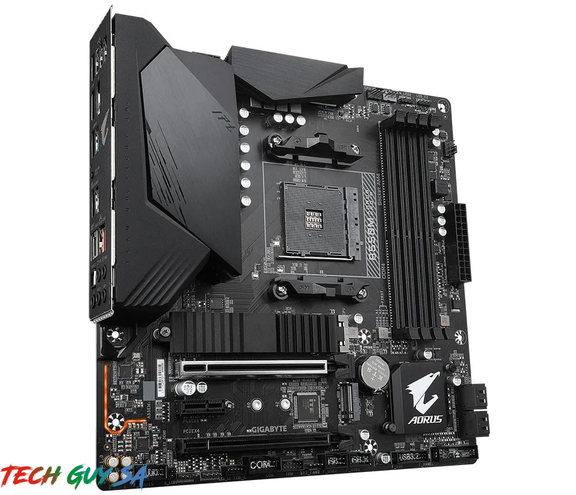

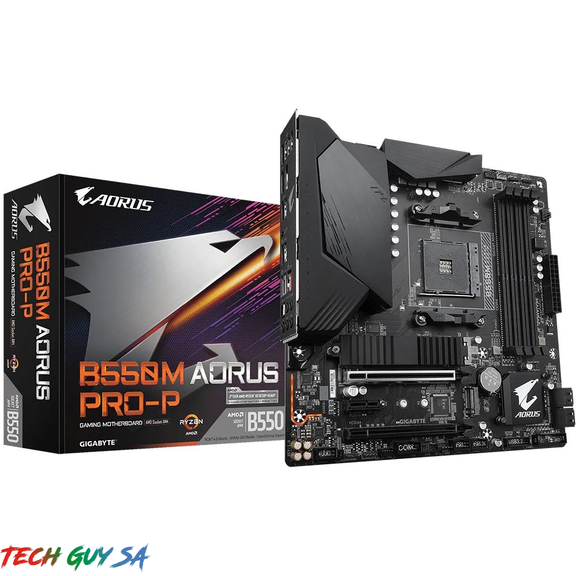

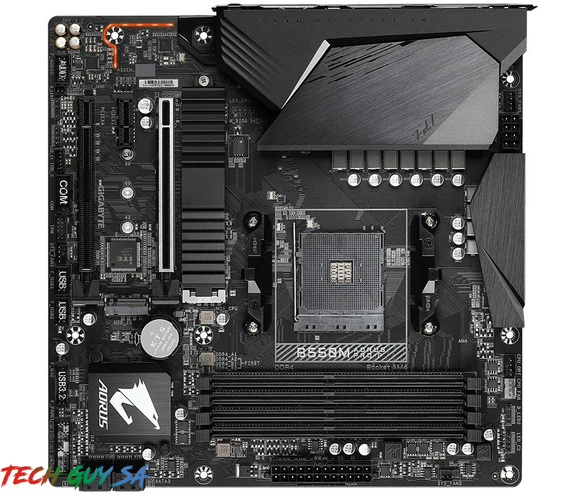

Gigabyte B550M AORUS PRO-P (rev. 1.0)
R3,700 Incl VAT
Pay R3,589 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
AMD B550 AORUS Motherboard with 10+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
- AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged VRM Heatsinks
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
- AMP-UP Audio with ALC1200 and premium capacitor
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
| Specifications | |
|---|---|
| CPU |
|
| (Please refer “CPU Support List” for more information.) | |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 3rd Gen AMD Ryzen™ Processors: | |
| Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| Maximum shared memory of 16 GB | |
| Audio | Realtek® ALC1200 codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode | |
| New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: | |
| Supporting PCIe 3.0 x4 mode | |
| 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: | |
| Supporting PCIe 3.0 x1 mode | |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: |
| 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs | |
| New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs | |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: | |
| Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Chipset+1 USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 1 x CPU cooler LED strip/RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x serial port header | |
| 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1 x Clear CMOS jumper | |
| 1 x Thunderbolt header | |

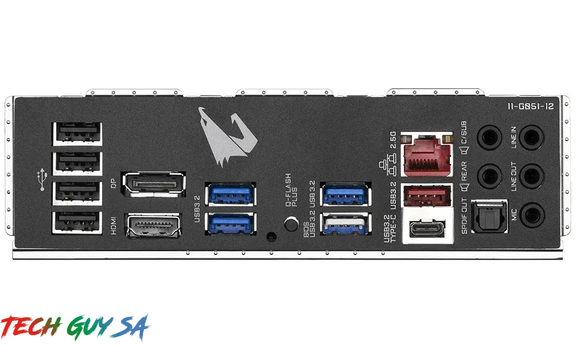

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 4 x USB 3.2 Gen 1 ports | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x USB Type-C™ port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 1 x optical S/PDIF Out connector | |
| 5 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | Norton® Internet Security (OEM version) |
| Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
| Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. | |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
| Brand |
Gigabyte |
| Socket |
AM4 |
| CPU Support |
AMD Ryzen 3000 Series ,AMD Ryzen 4000 Series ,AMD Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD B550 |
| Form Factor |
mATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR4 |
| On-Board WiFi |
No |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
