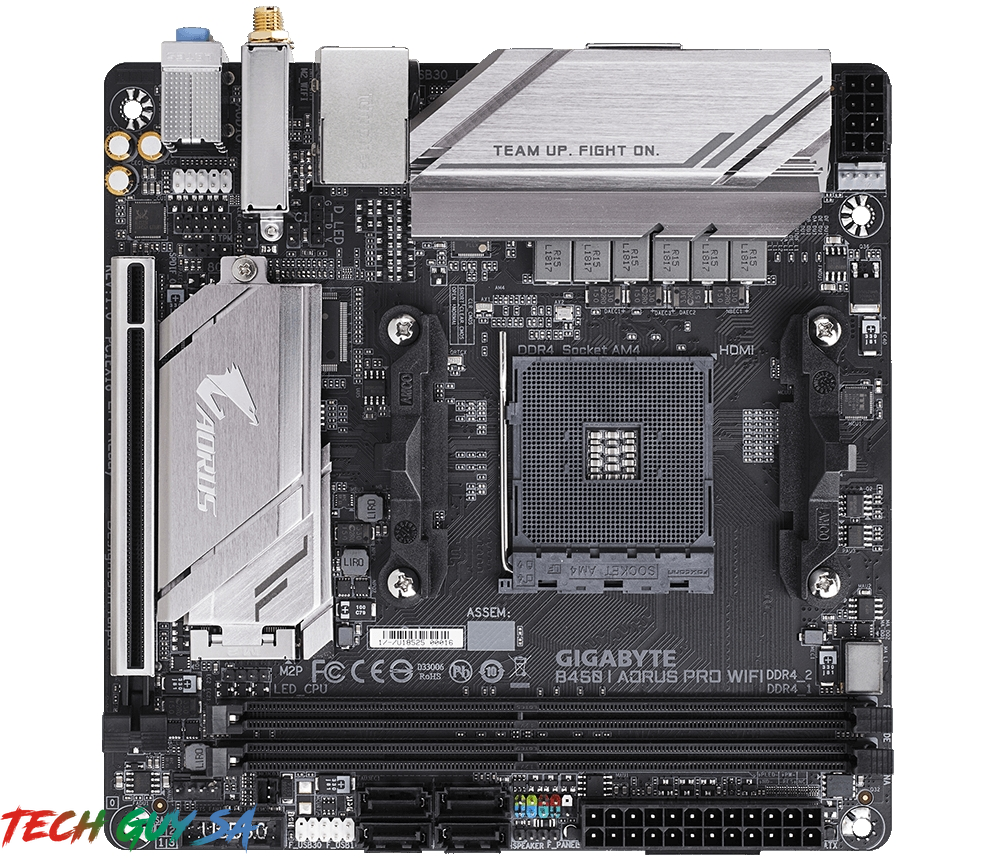

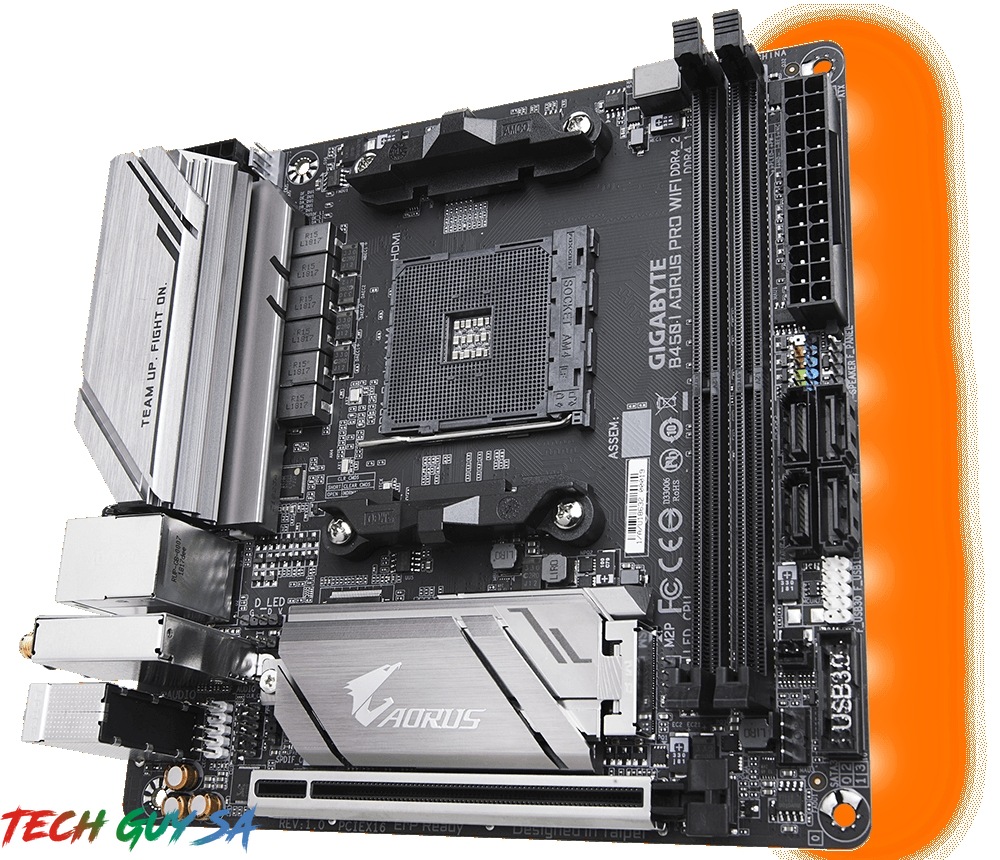

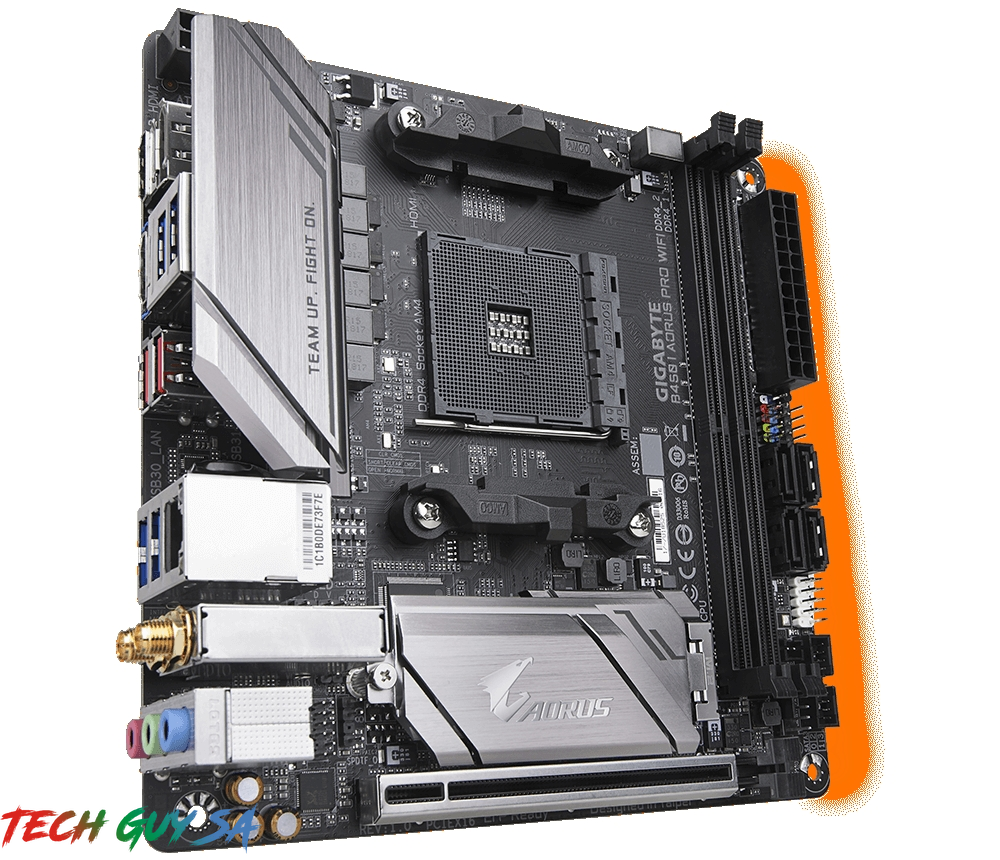

Gigabyte B450 I AORUS PRO WIFI (rev. 1.0) - End of Life

Gigabyte B450 I AORUS PRO WIFI (rev. 1.0) – End of Life

SKU / Product is End of Life

Pay R0 When paying via EFT at checkout.

0 People watching this product now!

AMD B450 AORUS Motherboard with 4+2 Phase IR Digital PWM, Intel^® Dual Band 802.11ac Wave2 WIFI, M.2 with Thermal Guard, RGB FUSION 2.0, ALC1220-VB Audio, Intel^® GbE LAN with cFosSpeed, CEC 2019 ready

Specifications
CPU	AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
	(Please refer “CPU Support List” for more information.)
Chipset	AMD B450
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
	Dual channel memory architecture
	Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
	* ECC is only supported with AMD Ryzen™ and Athlon™ of PRO-series CPU.
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor:
	1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
	* Support for DisplayPort 1.2 version.
	2 x HDMI ports, supporting a maximum resolution of 4096×2160@60 Hz(Note)
	* Support for HDMI 2.0 version and HDCP 2.2.(Note)
	* One of HDMI function is limited if using an AMD Athlon™ 200-series APU.
	Support for up to 3 displays at the same time
	Maximum shared memory of 16 GB
	(Note) Actual support may vary by CPU.
Audio	Realtek® ALC1220-VB codec
	High Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
	Support for S/PDIF Out
LAN	ntel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module	Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 5
	Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.
	** Intel WIFI driver only support for Win10-64bit
Expansion Slots	1 x PCI Express x16 slot, running at x16(Note)
	(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
	1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
	(Note) Actual support may vary by CPU.
Storage Interface	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
	2 x USB 3.1 Gen 1 ports available through the internal USB header
	2 x USB 2.0/1.1 ports available through the internal USB header
	Integrated in the APU:
	4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x digital LED strip header
	1 x CPU cooler LED strip/RGB LED strip header
	4 x SATA 6Gb/s connectors
	1 x M.2 Socket 3 connector
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x speaker header
	1 x USB 3.1 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
	1 x Clear CMOS jumper
	1 x chassis intrusion header

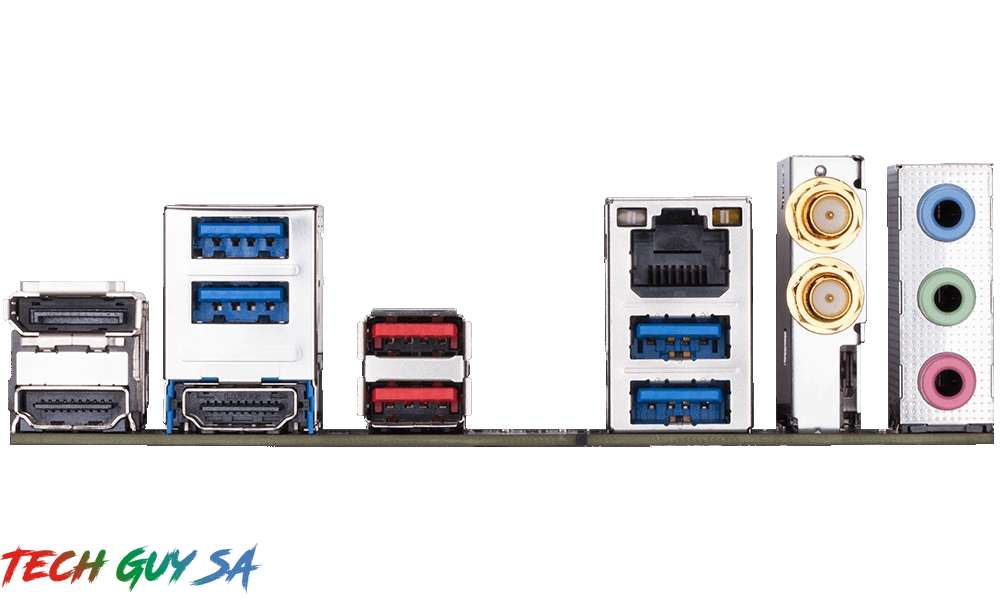

Back Panel Connectors	1 x DisplayPort
	2 x HDMI ports
	2 x USB 3.1 Gen 2 Type-A ports (red)
	4 x USB 3.1 Gen 1 ports
	1 x RJ-45 port
	2 x SMA antenna connectors (2T2R)
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
Unique Features	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	AutoGreen
	Cloud Station
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	Smart Survey
	System Information Viewer
	USB Blocker
	V-Tuner
	Support for Q-Flash
	Support for Xpress Install
	Norton® Internet Security (OEM version)
	cFosSpeed
Operating System	Support for Windows 10 64-bit
	Support for Windows 7 64-bit
	* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
	* Intel WIFI driver only support for Win10-64bit
	* Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
	Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Weight

2 kg

Dimensions

28.2 × 27.2 × 7.1 cm
