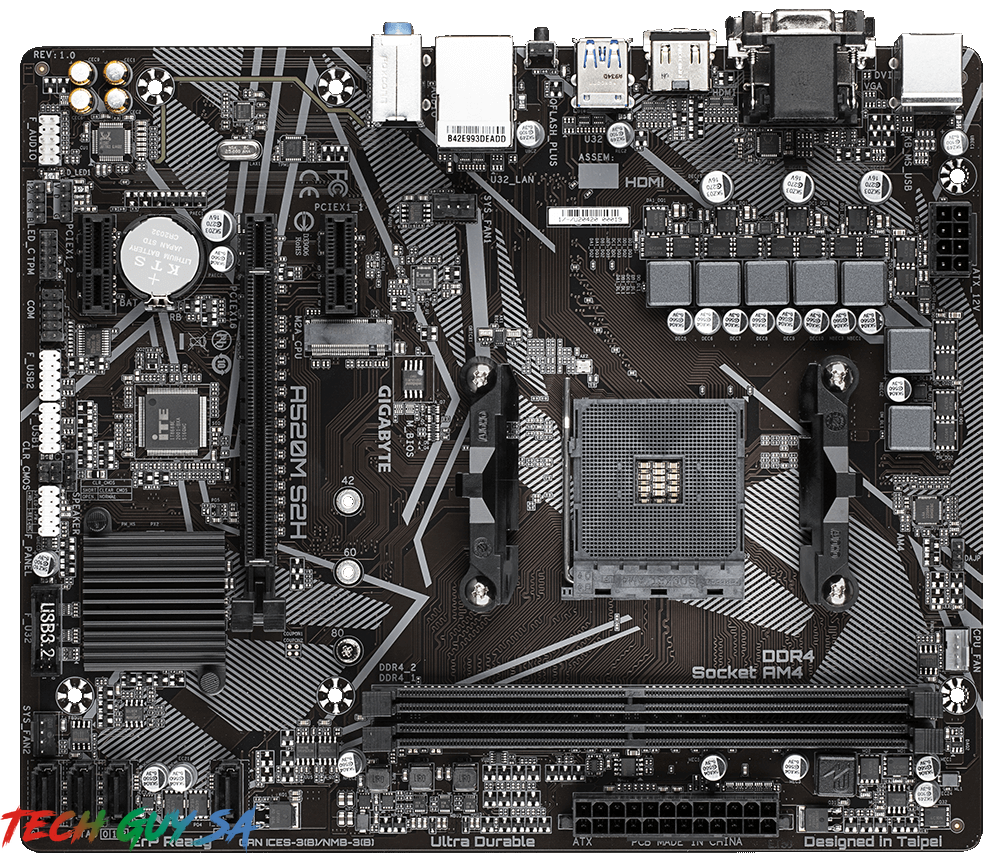

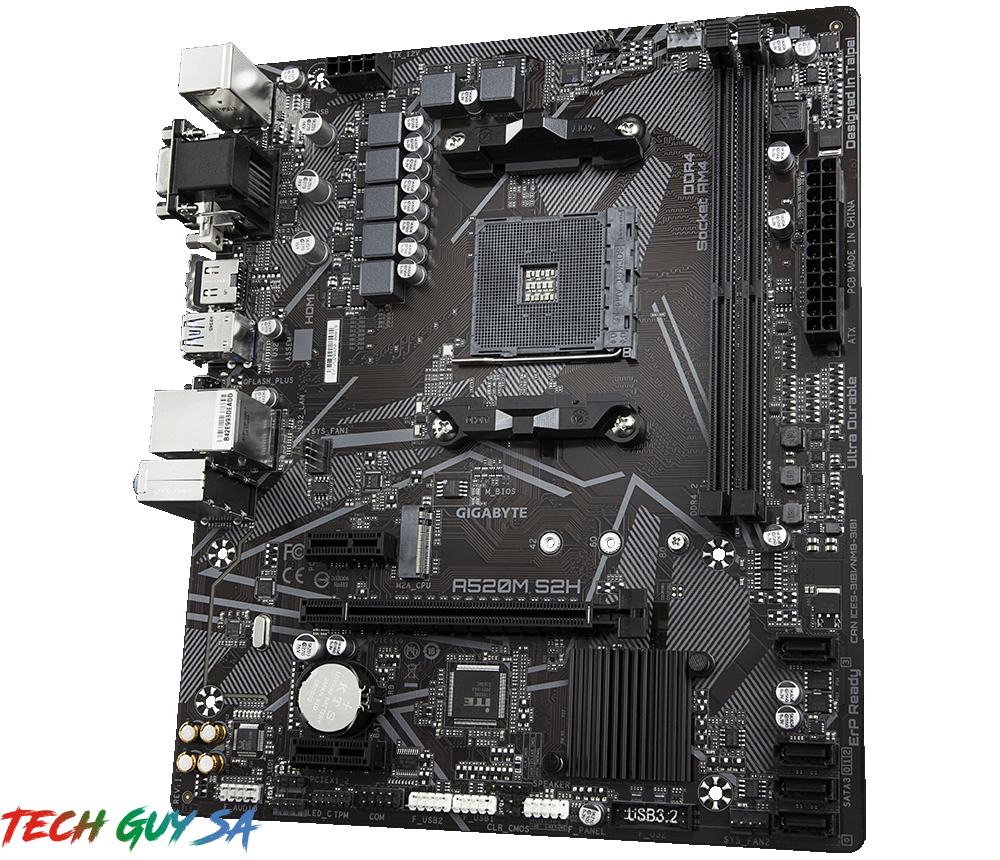

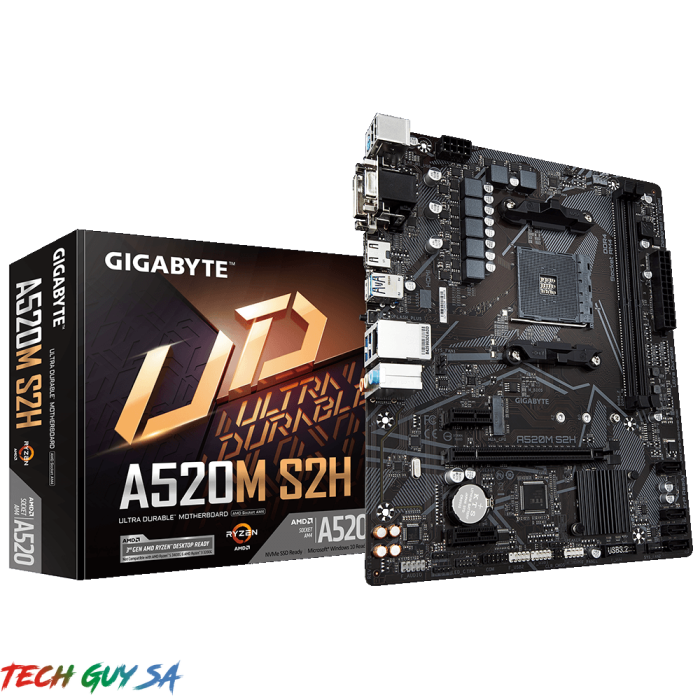

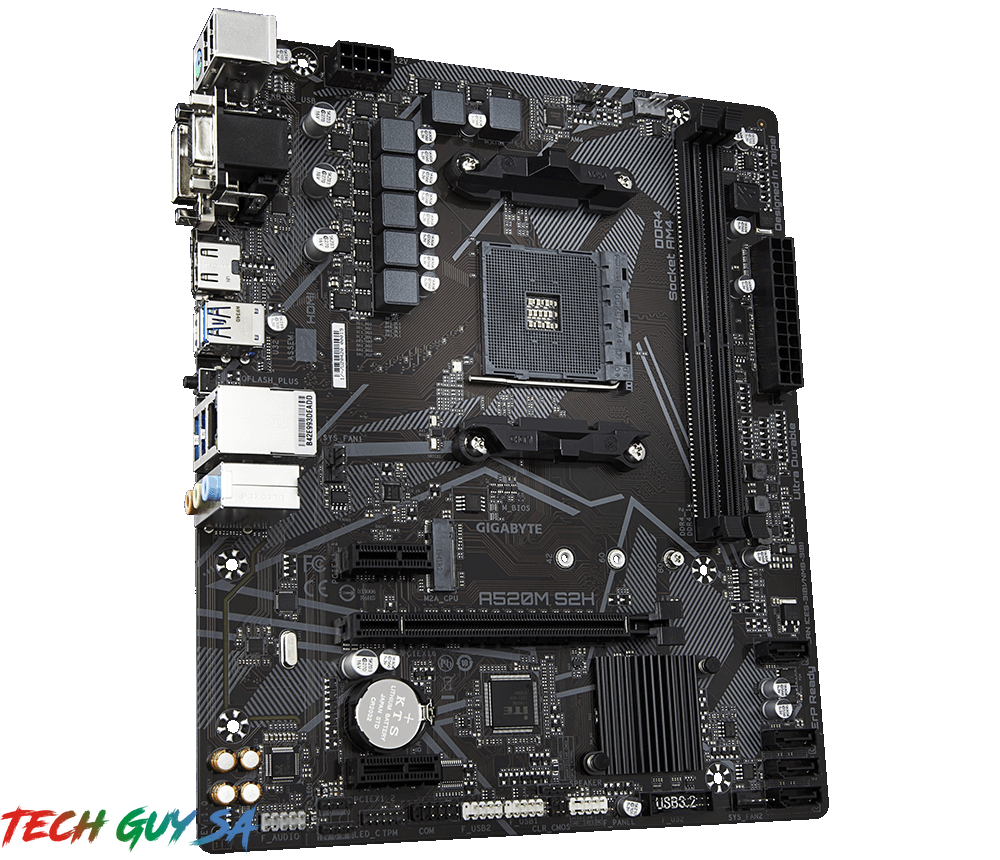

Gigabyte A520M S2H AM4 Motherboard
R1,280 Incl VAT
Pay R1,242 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
| Specification | |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors |
| (Please refer “CPU Support List” for more information.) | |
| Chipset | AMD A520 |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| 3rd Gen AMD Ryzen™ Processors: | |
| Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: | |
| Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: |
| 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz | |
| 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Support for up to 3 displays at the same time | |
| Maximum shared memory of 16 GB | |
| Audio | Realtek® ALC887 codec |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. | |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| Chipset: | |
| 2 x PCI Express x1 slots, supporting PCIe 3.0 | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Chipset: | |
| 4 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| 1 x serial port header | |
| 1 x speaker header | |
| 1 x chassis intrusion header | |
| 1 x Clear CMOS jumper | |

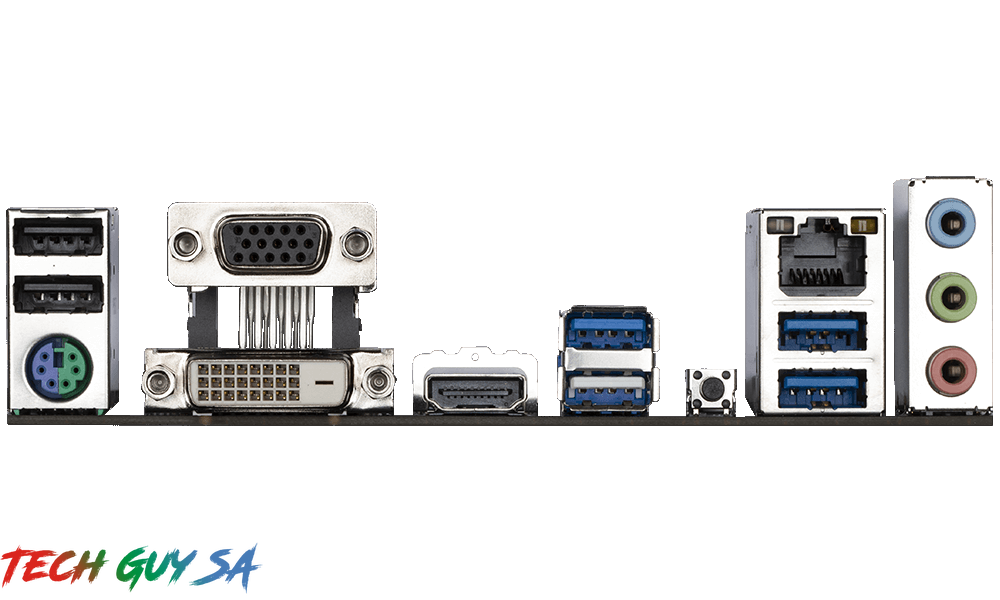

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port | |
| 1 x DVI-D port | |
| 1 x HDMI port | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 1 x Q-Flash Plus button | |
| 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Overheating warning | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| Support for Q-Flash Plus | |
| Support for Q-Flash | |
| Support for Xpress Install | |
| Bundled Software | Norton® Internet Security (OEM version) |
| Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Remark | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website. |
| Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. | |
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
| Brand | Gigabyte |
| Socket | AM4 |
| CPU Support | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Chipset Manufacture | AMD |
| Chipset Model | AMD A520 |
| Form Factor | mATX |
| Memory Slots Available | 2 Slots |
| Memory Type | Desktop DDR4 |
| On-Board WiFi | No |
| Reverse Connectors | No |
| GPU High Powered Connector | No |
| Windows Compatibility | Windows 10, Windows 11 ( Possibly Requires TPM ) |
| Colour | Black |
