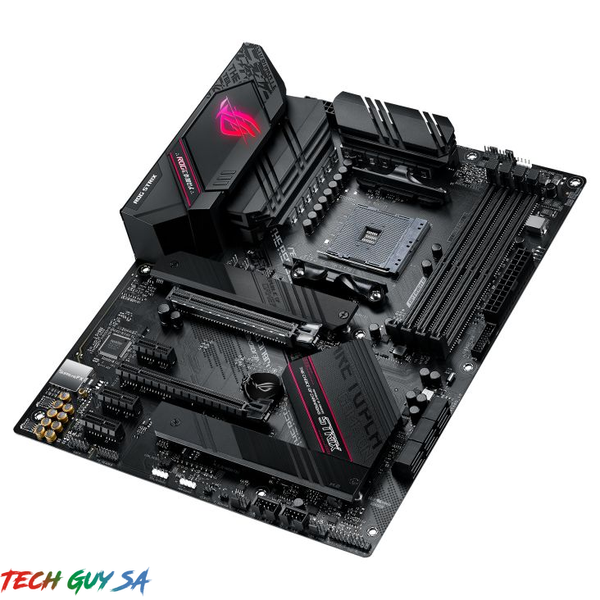

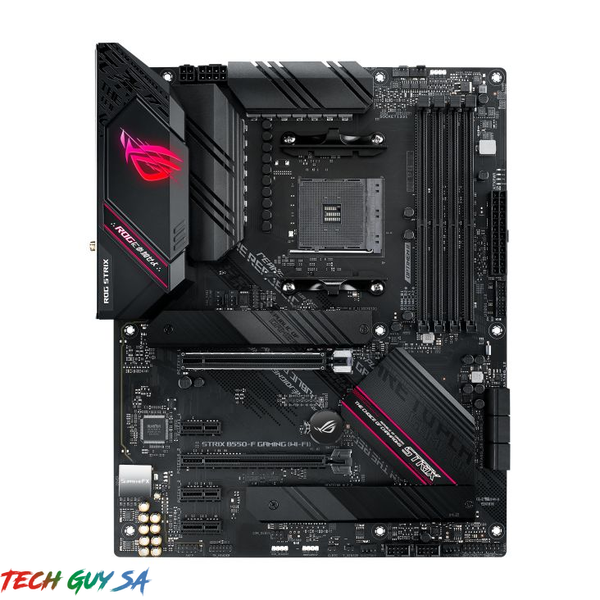

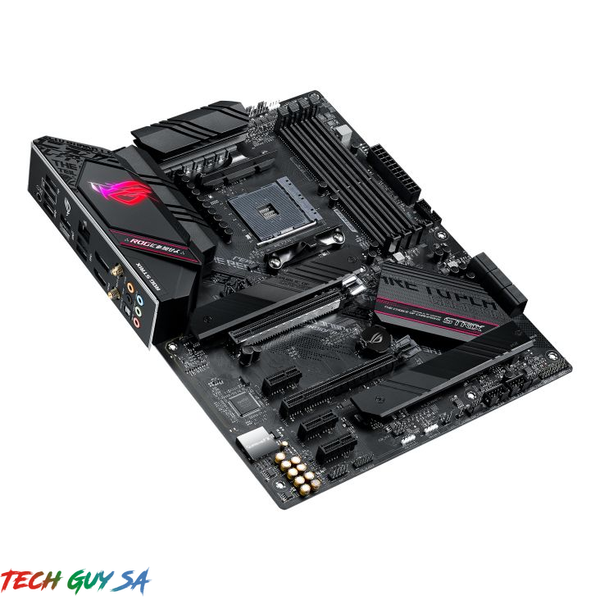

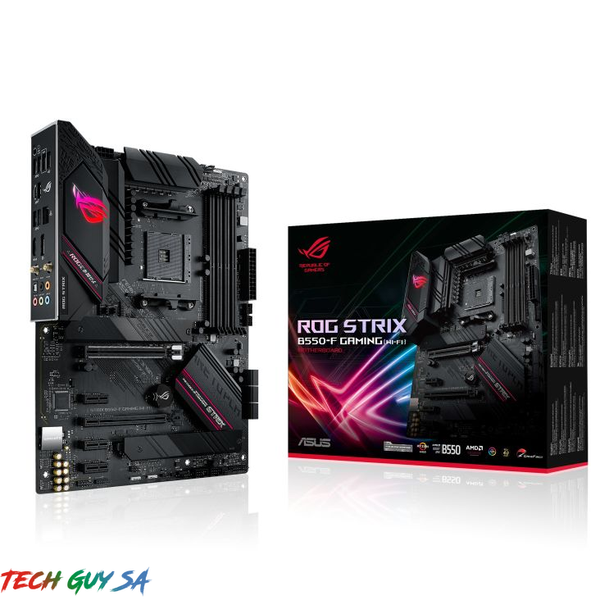

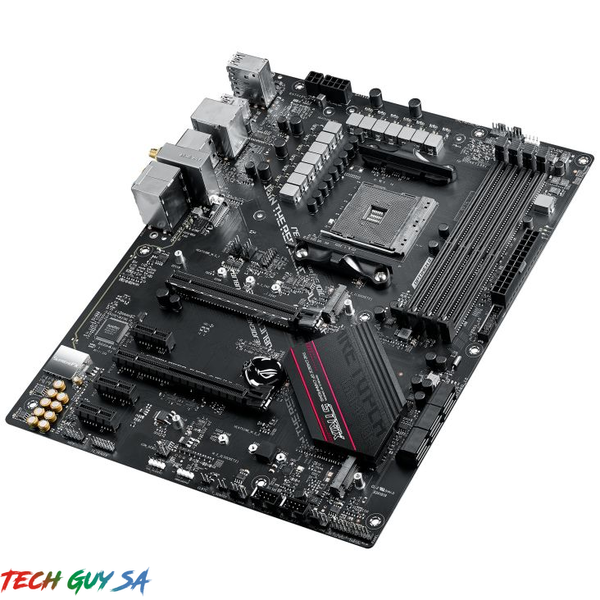

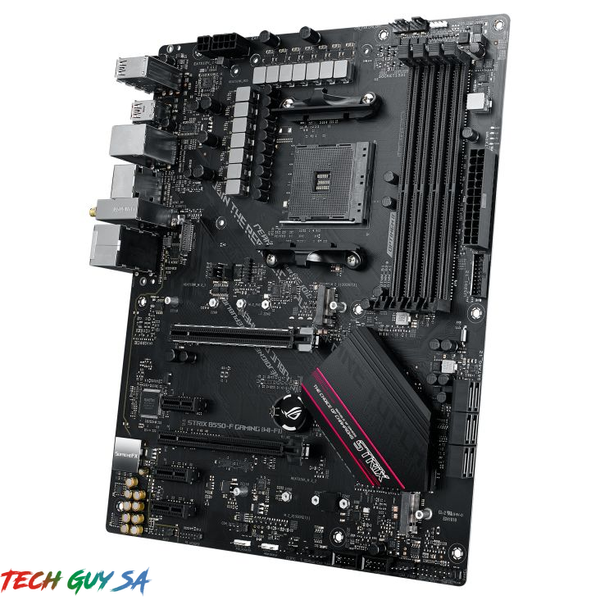

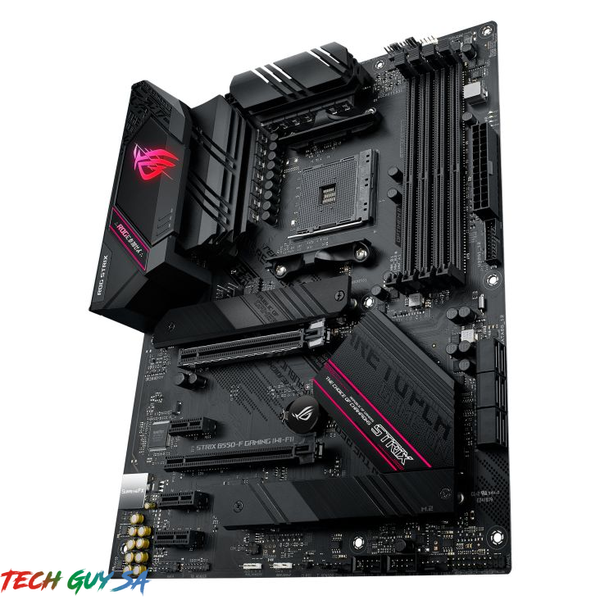

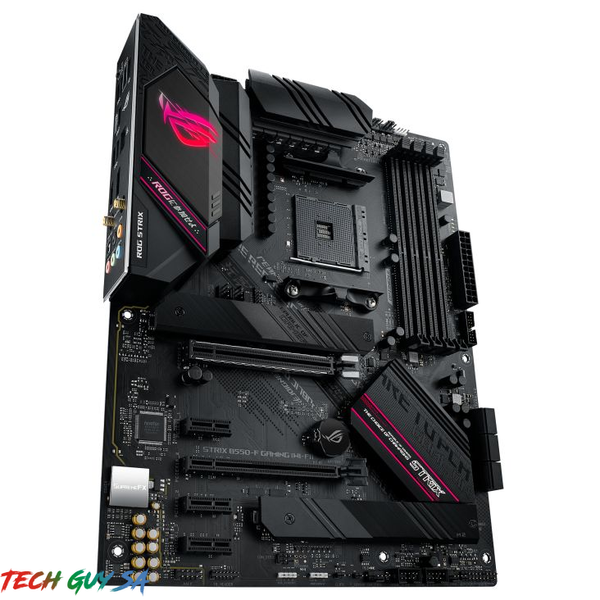

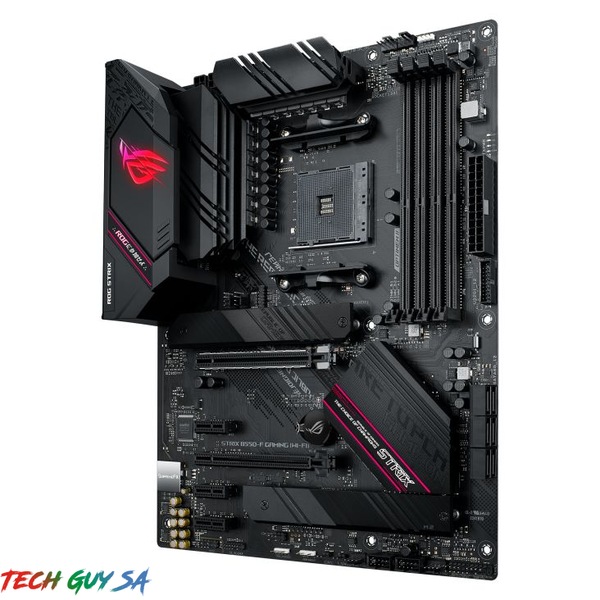

Asus ROG STRIX B550-F GAMING(WI-FI) AM4 Motherboard
R4,600 Incl VAT
Pay R4,462 When paying via EFT at checkout.
Supplier out of stock
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming (Wi-Fi) gives you a head start on your dream build.
ASUS ROG STRIX B550-F GAMING(WI-FI). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen. Supported memory types: DDR4-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600,4800,5000 MHz. Supported storage drive interfaces: M.2,Serial ATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Processor
| Processor socket | Socket AM4 |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen |
| Maximum number of SMP processors | 1 |
Network
| Wi-Fi | Y |
|---|---|
| Ethernet LAN | Y |
| Bluetooth | Y |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Wake-on-LAN ready | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.1 |
| LAN controller | Intel I225-V |

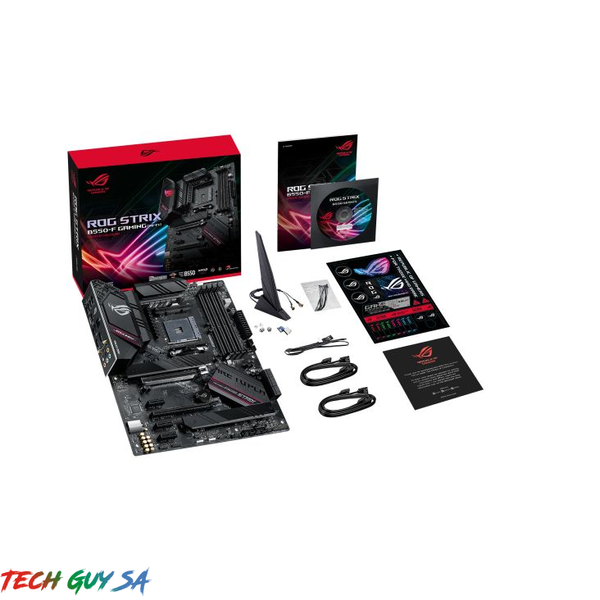

Packaging content
| Manual | Y |
|---|---|
| Cables included | SATA |
| Drivers included | Y |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Memory
| Maximum internal memory | 128 |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600,4800,5000 |
Features
| Component for | PC |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 |
| Cooling type | Active |
| Motherboard chipset | AMD B550 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64 |
| PC health monitoring | CPU,FAN |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 1 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express slots version | 3.0,4.0 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of SATA III connectors | 6 |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of EATX power connectors | 1 |
| Thunderbolt headers | 1 |

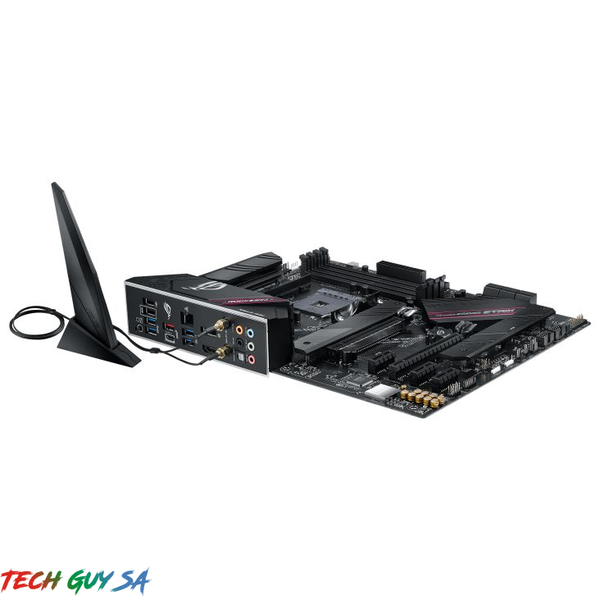

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| S/PDIF out port | Y |
| Digital audio optical out | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDMI version | 2.1 |
Storage controllers
| RAID levels | 0,1,10 |
|---|---|
| Number of HDDs supported | 6 |
| Supported storage drive interfaces | M.2,Serial ATA III |
| Supported storage drive types | HDD & SSD |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256000 |
| Weight | 2 kg |
|---|---|
| Dimensions | 28.2 × 27.2 × 7.1 cm |
| Brand |
Asus |
| Socket |
AM4 |
| CPU Support |
AMD Ryzen 3000 Series ,AMD Ryzen 4000 Series ,AMD Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
AMD B550 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| Memory Type |
Desktop DDR4 |
| On-Board WiFi |
Yes |
| Reverse Connectors |
No |
| GPU High Powered Connector |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
| Colour |
Black |
