Sold out
Asus ROG Crosshair
VIII Impact – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
0
People watching this product now!
Description
Crosshair VIII IMPACT
The ROG Crosshair VIII series heralds the arrival of Impact, the compact motherboard with colossal potential. Primped and primed for latest 3rd Gen AMD Ryzen CPUs, Crosshair VIII Impact’s Mini-DTX frame packs loads of ATX-grade features, including advanced power delivery and cooling, dual M.2, next-gen Wi-Fi 6 (802.11ax) and onboard SupremeFX audio. It’s the perfect choice for a small-form-factor gaming rig ready to rival full-size builds
AMD AM4 X570 Mini-DTX enthusiast gaming motherboard with an SO-DIMM.2 card (dual M.2), Wi-Fi 6 (802.11 ax), PCIe 4.0, SupremeFX audio, Aura Sync RGB LED lighting, SATA 6Gb/s and USB 3.2 Gen 2
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed

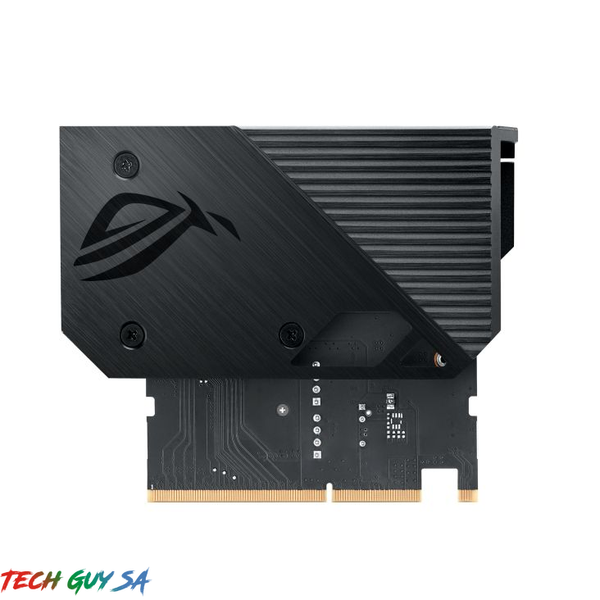

- SO-DIMM.2: Bundled expansion card with heatsink allows two M.2 drives to be connected via an SO-DIMM interface and helps control SSD thermals for maximum performance
- Comprehensive thermal design: An active VRM and chipset combo heatsink and full-sized aluminum backplate with heatpipe add mass to help absorb more heat
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support and Intel Gigabit Ethernet with ASUS LANGuard supports GameFirst V technologies
- Advanced water-cooling features: ROG water-cooling zone, water pump + header, and radiator headers enable easy integration with a custom water-cooling loop
- 5-Way Optimization: Automated system-wide tuning creates overclocking and cooling profiles tailor made for your rig
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot and IMPACT Control Card IV , which adds BIOS FlashBack™, Clr CMOS, Q-Code and FlexKey functionality
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen. 2 addressable headers
- Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9023P for enthusiast-grade audio performance, Sonic Studio III and DTS Sound Unbound
Processor
| Processor socket | Socket AM4 |
|---|---|
| Processor manufacturer | AMD |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Compatible processor series | AMD Ryzen 3 2nd Gen,AMD Ryzen 3 3rd Gen,AMD Ryzen 5 2nd Gen,AMD Ryzen 5 3rd Gen,AMD Ryzen 7 2nd Gen,AMD Ryzen 7 3rd Gen,AMD Ryzen 9 3rd Gen |
Memory
| Maximum internal memory | 64 |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800 |
| Supported memory module capacities | 4GB,8GB,16GB,32GB |
Network
| Wi-Fi | Y |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Ethernet interface type | 10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet |
| LAN controller | Intel I211-AT |
Weight & dimensions
| Depth | 170 |
|---|---|
| Width | 203 |
Features
| Cooling type | Passive |
|---|---|
| Windows operating systems supported | Windows 10 |
| Motherboard chipset | AMD X570 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Audio output channels | 8.0 |
| Audio chip | SupremeFX S1220A |
| Component for | Mini PC |
| Number of mounting holes | 4 |
| Motherboard form factor | Mini DTX |
Packaging content
| Drivers included | Y |
|---|
Internal I/O
| USB 2.0 connectors | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Power fan connector | Y |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Audio connector | Y |

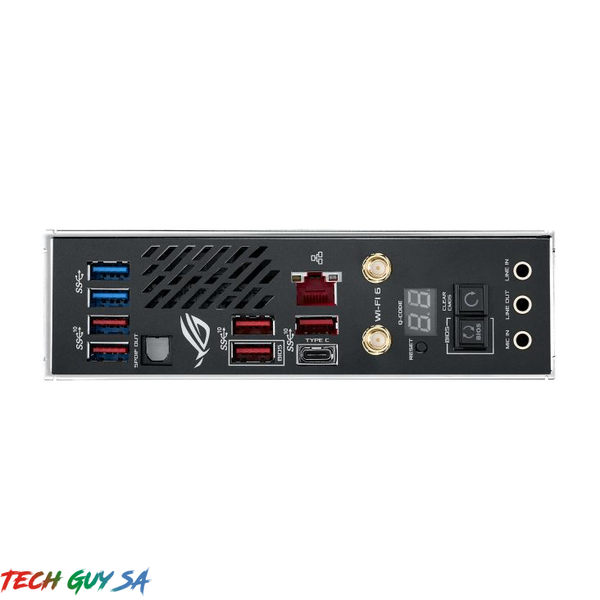

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
Storage controllers
| RAID levels | 0,1,10 |
|---|---|
| Supported storage drive types | HDD,SSD |
| Supported storage drive interfaces | Serial ATA III |
| Number of HDDs supported | 4 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 |
| Clear CMOS jumper | Y |
| ACPI version | 6.2 |
| System management BIOS (SMBIOS) version | 3.2 |
Other features
| Quick installation guide | Y |
|---|---|
| BIOS switch button | Y |
| HDD size | 2.5/3.5 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 27.4 × 26.7 × 8.4 cm |
| Brand |
Asus |
| Socket |
AM4 |
| CPU Support |
Ryzen 2000 Series ,Ryzen 3000 Series ,Ryzen 4000 Series ,Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
X570 |
| Form Factor |
Mini DTX |
| Memory Slots Available |
2 Slots |
| On-Board WiFi |
Yes |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
