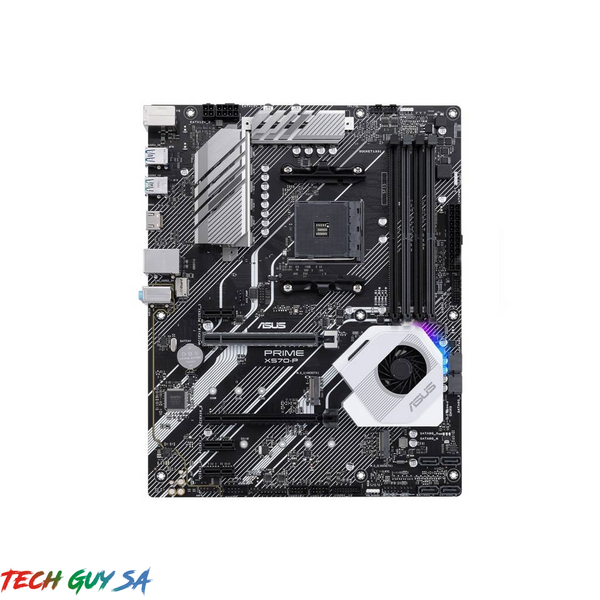

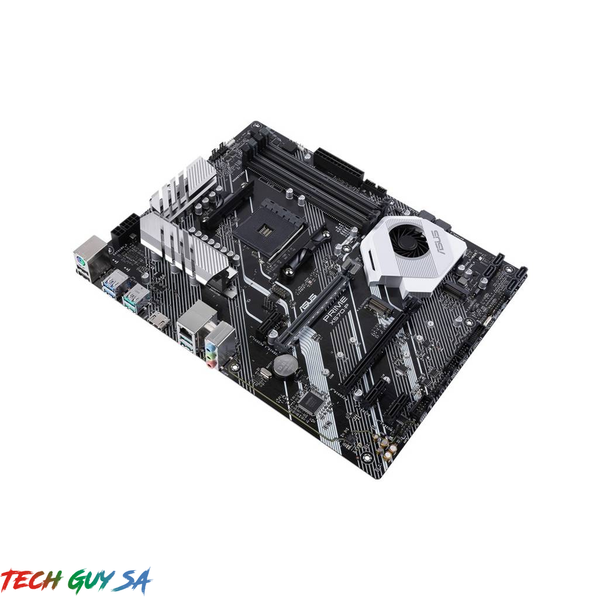

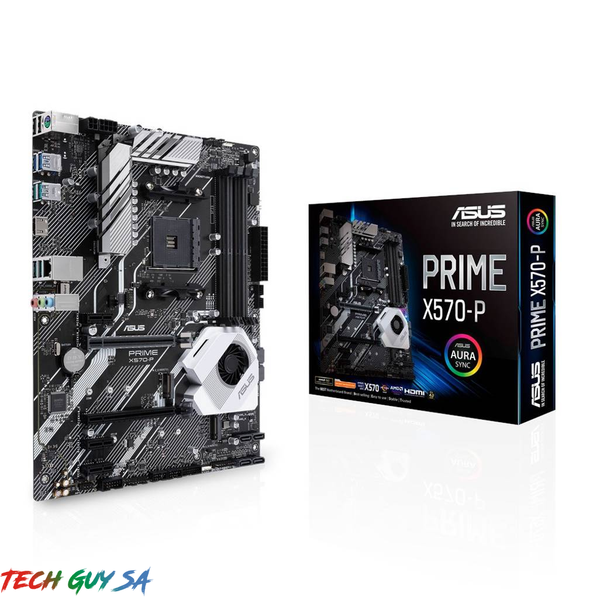

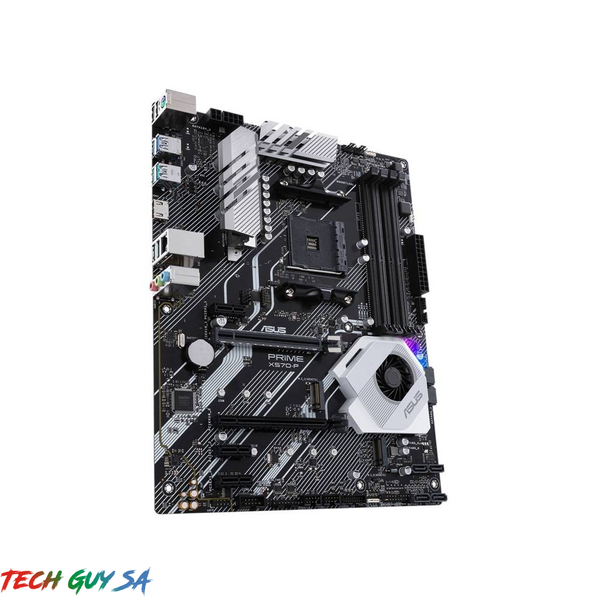

Asus PRIME X570-P AMD Motherboard AM4 – End of Life
R3,400 Incl VAT
SKU / Product is End of Life
Pay R3,298 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
AMD AM4 ATX motherboard with PCIe 4.0, 12 DrMOS power stages, DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB header
- AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+4 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports
- Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips
Processor
| Processor socket | Socket AM4 |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen |
| Maximum number of SMP processors | 1 |
Memory
| Memory channels | Dual |
|---|---|
| Maximum internal memory | 128 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Y |
Network
| Wi-Fi | N |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Y |
| LAN controller | Realtek RTL8111H |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Graphics
| Maximum resolution | 4096 x 2160 |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
Features
| Component for | PC |
|---|---|
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64 |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD X570 |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 |
Packaging content
| Cables included | SATA |
|---|---|
| Quick installation guide | Y |
| Drivers included | Y |
Expansion slots
| Number of M.2 (M) slots | 2 |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 3 |
| TPM connector | Y |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Number of EATX power connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 3 |

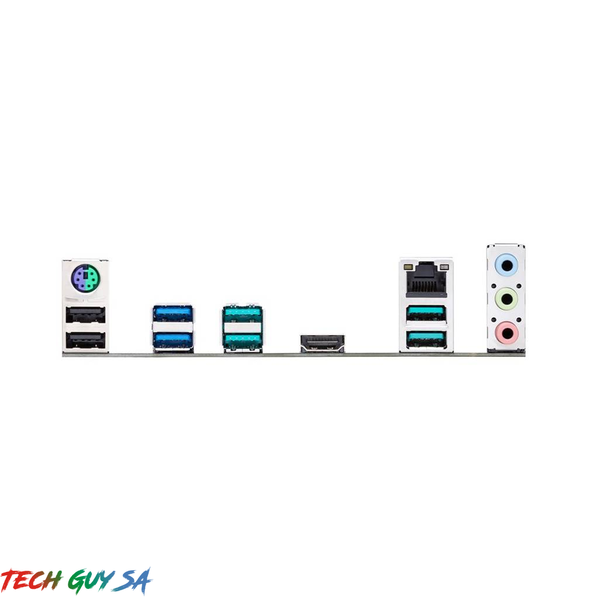

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
Storage controllers
| RAID levels | 0,1,10 |
|---|---|
| Supported storage drive interfaces | Serial ATA III |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 |
| Clear CMOS jumper | Y |
| ACPI version | 6.2 |
| System management BIOS (SMBIOS) version | 3.2 |
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 33 × 27.2 × 5.6 cm |
| Brand |
Asus |
| Socket |
AM4 |
| CPU Support |
Ryzen 2000 Series ,Ryzen 3000 Series ,Ryzen 4000 Series ,Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
X570 |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
