Adventech APAX-5620KW PAC W/MARVEL X-SCALE
R21,600 Incl VAT
Pay R20,952 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
Description

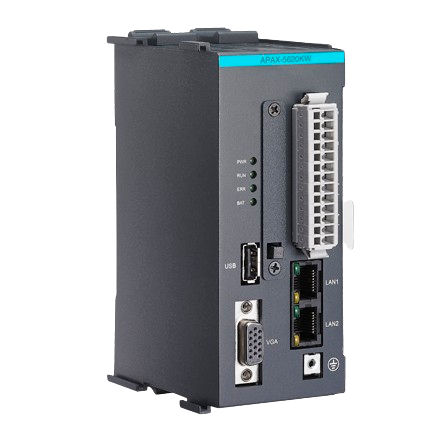

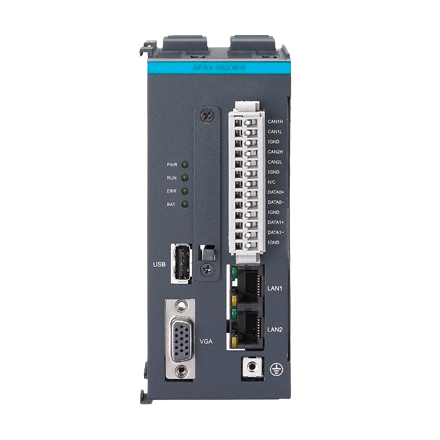

APAX-5620KW is a RISC-based Controller with an Intel XScale PXA270 CP. It also features two CAN bus interfaces, which support CANOpen stack (DS301 & 302), and two RS-485 ports allowing it to connect to remote I/O devices as well as being able to support up to 32 APAX I/O modules. The APAX-5620KW supports Microsoft Visual Studio, and .Net programming language, thereby allowing PC-based users to easily develop their own applications. It is also compatible with IEC-61131-3 based Multiprog KW languages, which allow users to download change functions and time deterministic support. With these great features, the APAX-5620 is an excellent cost-effective solution for a wide range of applications, such as steel production monitoring, spinning & weaving machinery, factory automation, and tunnels & freeways.
Specification
APAX-5620KW-AE Specs
| General/Power Consumption | 5 W @ 24 VDC (typical) |
| General/Certifications | CE, FCC class A |
| General/Weight | 310 g |
| General/Dimensions | 60 x 139 x 100 mm |
| General/Enclosure Housing | ABS+PC |
| System Hardware/CPU | Marvel XScale PXA270 520 MHz |
| System Hardware/Memory | 32M bytes, SDRAM 64M bytes |
| System Hardware/Storage | 1 x Type II CompactFlash card slot |
| System Hardware/USB Ports | 1 x USB 1.1 |
| Processor System/Watchdog Timer | Yes |
| System Hardware/Battery Backup Memory | 256 KB file system, 256 KB direct access |
| System Hardware/Real-time Clock | Yes |
| System Hardware/VGA | DB15 connector |
| General/OS Support | Windows CE |
| Software/Control Software | C/C++ and .NET library KW Multiprog (development tool), KW ProConOS (runtime kernel) |
| Environment/Temperature (Operating) | -10 ~ 55°C (when mounted vertically) |
| Environment/Temperature (Storage) | -40 ~ 70°C |
| I/O Expansion/Connected I/O Modules | 32 (max.)* |
| I/O Expansion/Digital Signals | 768 (max.) |
| I/O Expansion/Analog Signals | 192 (max.) |
| Communications (Ethernet)/LAN | 2 x RJ-45 Port, 10/100 Mbps |
| Communications (Serial)/Medium | 2 x Isolated RS-485 (2-wire, isolated) |
| Communications (CAN)/Medium | 2 x Isolated CAN |
| Communications (CAN)/Speed | Maximum 1 Mbps |
| General/Dimensions (W x H x D) | 60 x 139 x 100 mm |
| General/Enclosure | ABS+PC |
| System Hardware/Memory Flash | 32 MB, SDRAM 64MB |
| System Hardware/Watchdog Timer | Yes |
| Software/OS Support | Windows CE |
| Environment/Relative Humidity | 5 ~ 95% (non-condensing) |
Additional information
| Brand |
Advantech |
|---|
