Description
an extremely short time with the easy-to-use and intuitive graphic utility.
Specification

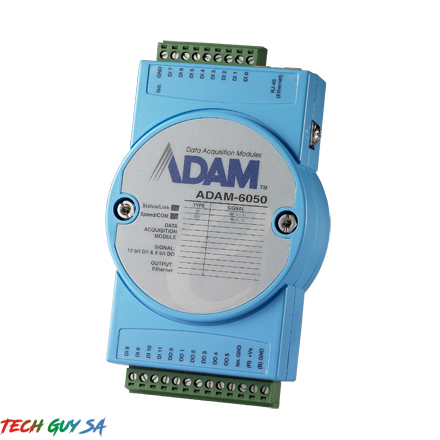

ADAM-6050-CE Specs
General/Description | 18-ch Isolated Digital I/O Modbus TCP Module |
Display/LED Indicators | Status, Comm, Link, Speed |
Power Supply/Power Requirement | 10~30 VDC |
General/Watchdog Timer | System (1.6 second) & Communication (programmable) |
General/Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) |
General/Temperature (Operating) | -20 ~ 70Ā°C (-4 ~ 158Ā°F) |
General/Humidity | 20~95 %RH |
General/Temperature (Storage) | -30 ~ 80Ā°C (-22 ~ 176Ā°F) |
General/Interface | 10/100Base-T(X) |
General/Peer-to-Peer | Yes |
General/GCL | Yes |
General/Isolation Protection | 2000 VDC |
General/Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP |
General/Communication Speed | Ethernet: 10/100Mbps |
General/Comm. Distance | Ethernet: 100 m |
Digital Input/Channels | 12 |
Digital Input/Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 3 VDC max. Logic level 1: 10~30 VDC |
Digital Output/Channels | 6 (Sink type) Open collector to 30V, 100 mA max. load Support 5 kHz pulse output |
