Vantec 2-Port USB 3.1 PCIe (10Gbps) USB C & USB Type-A
Pay R0 When paying via EFT at checkout.
2-Port USB 3.1 PCIe (10Gbps) USB C & USB Type-A
UGT-PC371AC

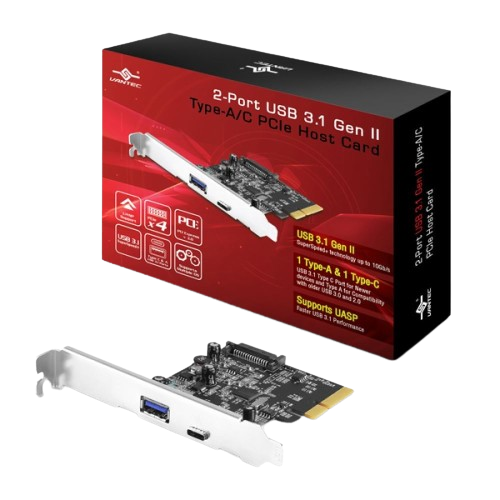

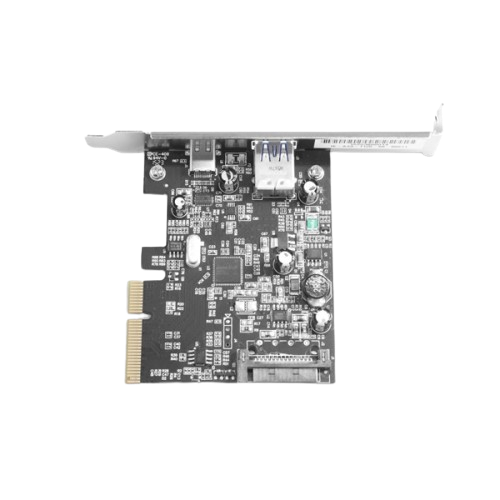

2-Port USB 3.1 Gen II Type A/C PCIe Host Card
The Vantec 2-Port USB 3.1 Gen II Type A/C PCIe Host Card is design to offer the latest in USB 3.1 Technology. This Card provides clocking speed of up to 10Gbps, twice of USB 3.0 (5Gbps) and almost 20 times of USB 2.0(480Mbps). USB 3.1 SuperSpeed Plus enables you to access and transfer data extremely faster and simple with external storage devices. It is backward compatible to USB 3.0, USB 2.0 and USB 1.1, to ensuring compatibility with existing external USB devices. The ports are design to provide better power for bus powered devices.
- Super Speed Plus USB 3.1 10Gbps Gen II Connection to give you the Maximum File Transfer or Backup.
- Support UASP Devices on both ports for extra boost in speed when using latest OS.
- Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.
- Support PCI-Express x4 slot interface, uses x2 lanes for data.
- Support for Windows and Linux OS for latest Technology.
- USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and USB 2.0.
More Features:
- Half height PCI_E add on card with 2 port USB 3.1 interface
- ASMedia Chipset, PCI Express to USB 3.1 host controller
- Compliant to Universal Serial Bus 3.1 specification Revision 1.0
- Backward compatible to USB 3.0 and 2.0
- Compliant with extensible Host Controller interface specification Revision 1.1
- Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
- PCI Express with clocking speed up to 10Gbps
- Comes with low profile bracket for Slim Design Chassis
- Supports PCIe Card Electromechanical Specs 2.0 (will not support x1 negotiation)
- Supports PCI Bus Power Management Interface Specification Release 1.2
- Support Windows 7 and native drivers for Windows 8/8.1/10
- Support Linux kernel 3.13.0 & above
Model: UGT-PC371AC
Device Support: USB 3.1 Gen 2, Type A and C (backward compatible with USB 3.0/2.0)
Ports: 2, USB 3.1 Type A and C ports, each 5V @ 1.5A
Bus Technology: PCI-Express x2 lanes (will not fit x1 slot)
Power connector: SATA power connector
Dimension: 82 x 70 x 19 mm
System Requirements:
PCI-Express x4, x8 or x16 slots
Microsoft Windows 7, 8, 8.1, 10, Server 2012R2 64bit and Linux Ubuntu 12.10 Kernel 3.13.0 or later
System with 4GB RAM or more
USB 3.1 devices preferred to get maximum speed
What’s included:
2-Port USB 3.1 Gen II Type-A and C PCIe Host Card
Driver CD for Older OS, Newer OS like Windows 10 do not require drivers
Low Profile bracket
Quick Installation Guide
UPC: 844767020693
EAN: 4716872102389
