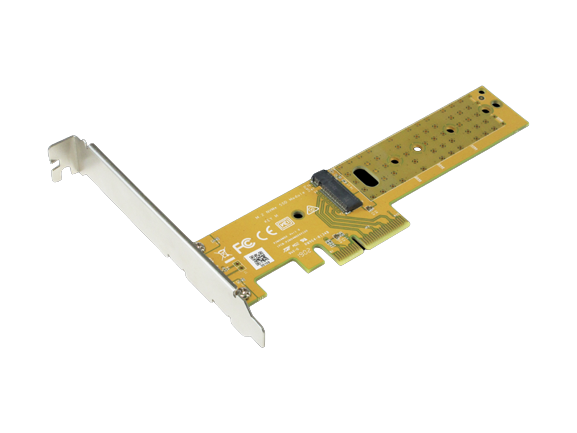

Sunix P2M04M00
PCIe x4 to NVMe M.2 Key-M Card
R370 Incl VAT
Pay R359 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
P2M04M00
PCIe x4 to NVMe M.2 Key-M Card
- Maximum bandwidth up to PCIe Gen3 x4 specification.
- Compliant with PCI Express M.2 specification 1.0.
- Supports M.2 modules in format 2280, 2260, 2242 and 2230 with Key-M or Key-B+M based on PCI Express communication.
- PCBA layout routing length less than 1.5inch between PCIe and M.2 slot.
- Compliant Full High and Low Profile PCIe bracket (Optional Accessory).
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, VCCI, BSMI, and RoHS approval.
- Driver free under Windows, Linux, or other operating systems.
Note:
SUNIX P2M04M00 card is NOT compatible with a M.2 SATAĀ SSD with Key-B, nor M.2 SATA SSD with Key-B+M module.
SUNIX P2M04M00 card is NOT compatible with a M.2 SATAĀ SSD with Key-B, nor M.2 SATA SSD with Key-B+M module.
Introduction
SUNIX P2M04M00 PCI Express x4 card expands a M.2 module (Key-M) into desktop or server PC, allowing user accesses new generation NVM Express interface (Non-Volatile Memory Host Controller Interface Specification) to capitalize on the low latency and internal parallelism of solid-state storage devices. It supports M.2 NVMe SSD storage module in 2280, 2260, 2242, or 2230 format with driver free feature. To maximum the highest performance of M.2 NVMe SSD, this card ensures the PCBA layout routing length less than 1.5inch between PCI Express and M.2 slot. It is the best M.2 NVMe SSD adapter card solution for desktop, server, gaming, or industrial applications.
Specifications
| Model | P2M04M00 |
| Description | PCIe x4 to NVMe M.2 Key-M Card |
| M.2 Interface | 1 x 67 pin M.2 Key-M slot |
| PCIe Interface | PCI Express x4 Ve3.0 |
| Regulatory Approvals | CE, FCC, VCCI, BSMI |
| Green Environment | RoHS, CRoHS, WEEE |
| Environment | Operation temp. 0 Ā°C ļ½ 40 Ā°C (32-104Ā°F) Operation humidity: < 85% non-condensing Storage temp. -10 Ā°C ļ½ 85 Ā°C (14~176Ā°F) |
| Weight | 40g |
| Dimension | 156.1(L)x40.8(W)x1.6(H)mm |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 15 × 3 cm |
| Brand |
Sunix |
