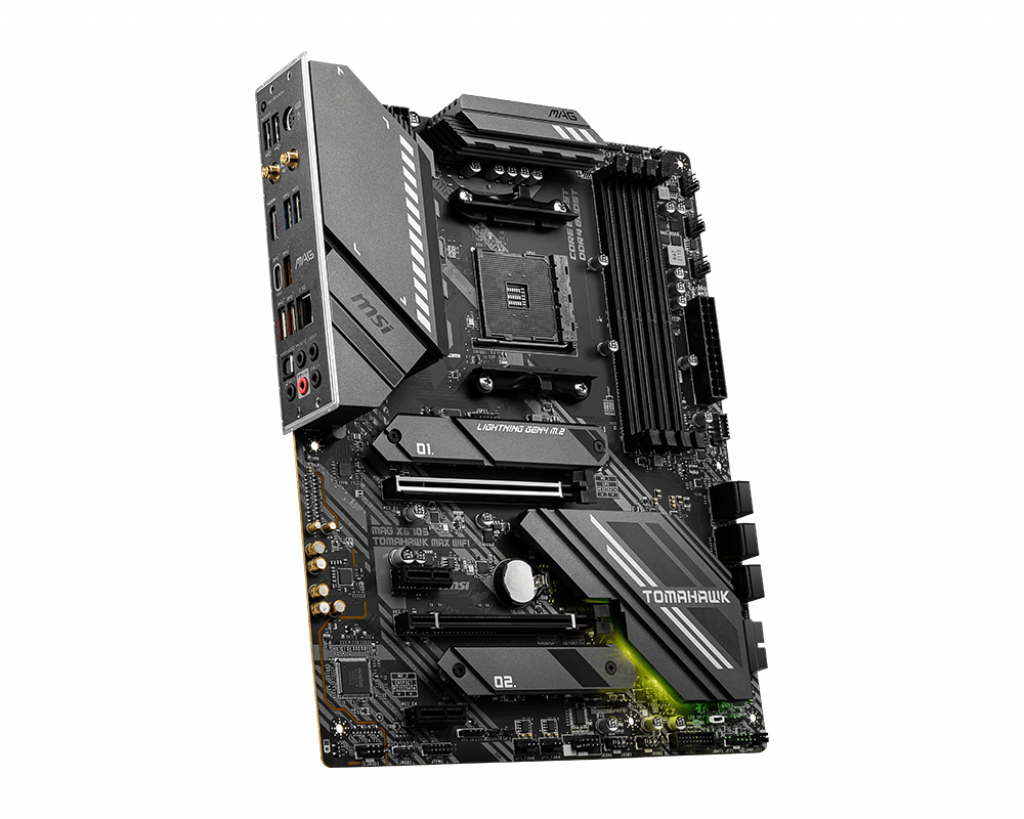

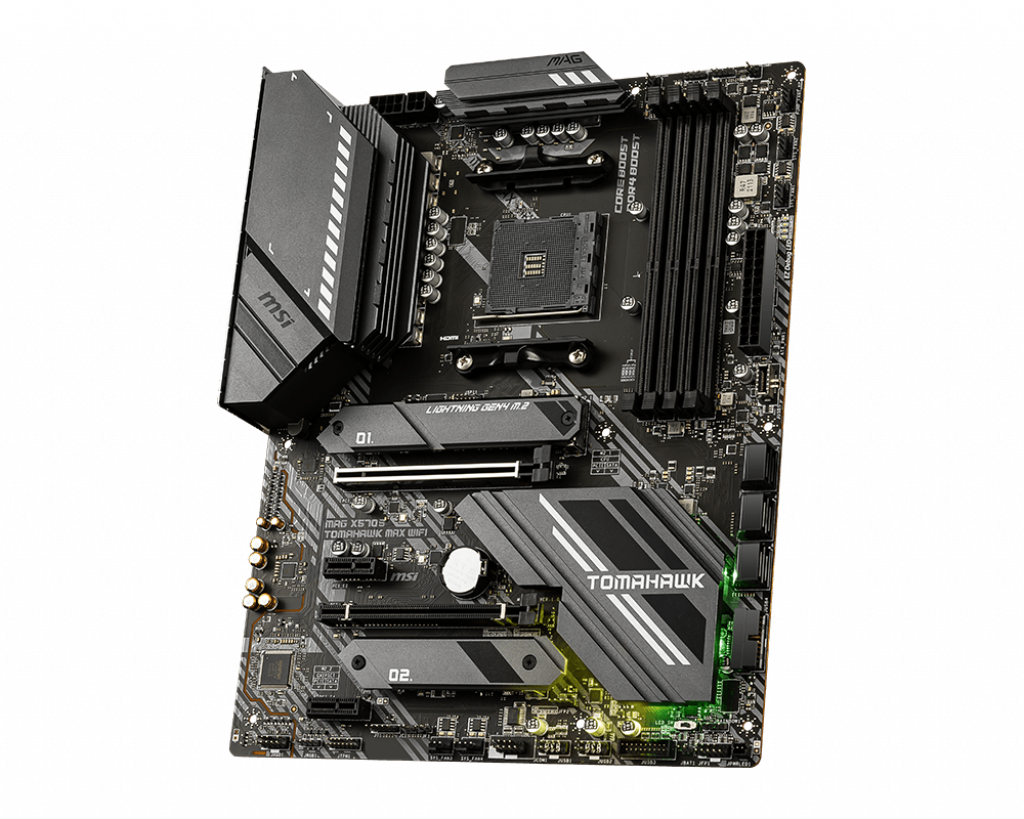

MSI MAG X570S TOMAHAWK MAX WIFI – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FEATURES:
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for high-performance systems and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel Armour PCIe slots. Supports 2-Way AMD Crossfire™
SPECIFICATIONS:
- Socket: AMD Socket AM4
- CPU (Max Support): Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update
- Chipset: AMD® X570 Chipset
- DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E x1: 2
- SATAIII: 6
- M.2 Slot: 2
- RAID: 0/1/10
- LAN: 1 x Realtek® 8125B 2.5G LAN
- WiFi and Bluetooth: Intel® Wi-Fi 6E AX210
- USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2, Type C), 2(Gen 2, Type A), 2(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 2 (Type-A)
- Audio ports (Rear): Realtek® ALC4080 Codec
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Crossfire: Yes
- Operating System: Support for Windows® 10 64-bit
WHAT’S IN THE BOX:

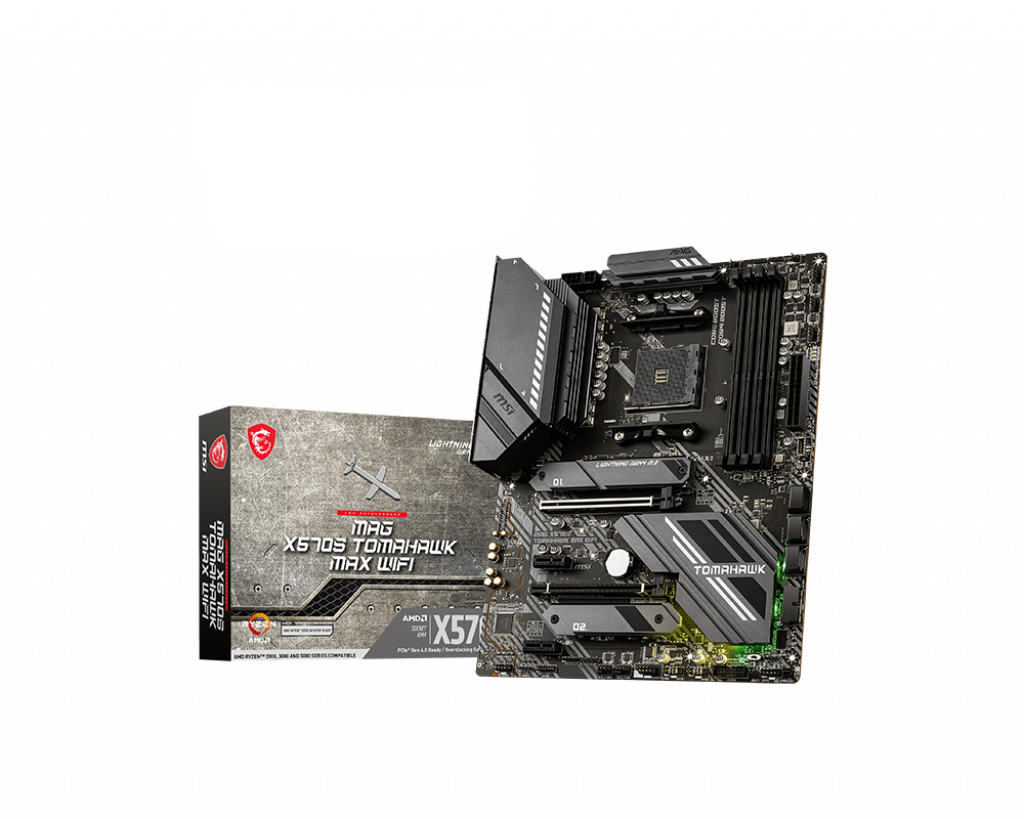

- MSI X570S TOMAHAWK MAX WIFI AM4 ATX Motherboard – Black x1
- WiFi Antenna x2
- SATA cables x2
- Standoff Screws/Sets x3
- USB Drive x1
- MAG Stickers Pack x1
- Quick Install Guide x1
- User Manual x1
| Weight | 2.04 kg |
|---|---|
| Brand |
MSI |
| Socket |
AM4 |
| CPU Support |
Ryzen 2000 Series ,Ryzen 3000 Series ,Ryzen 4000 Series ,Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
X570S |
| Form Factor |
ATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
Yes |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
