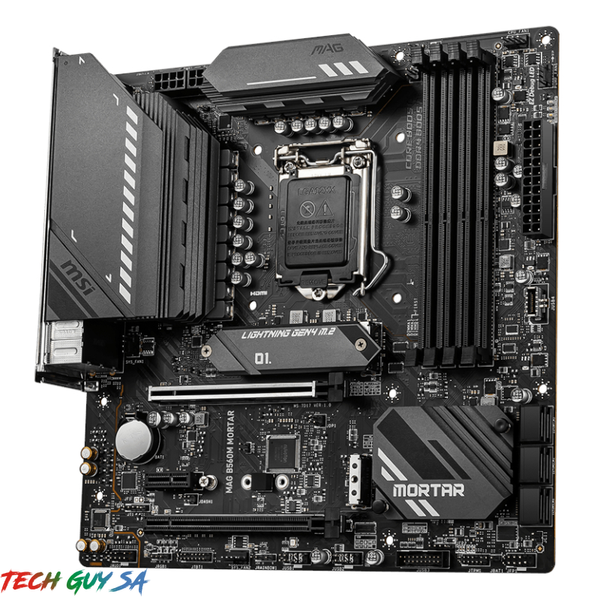

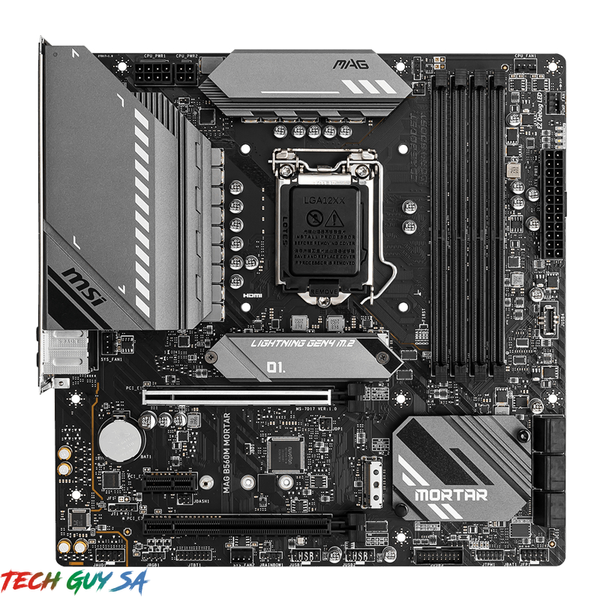

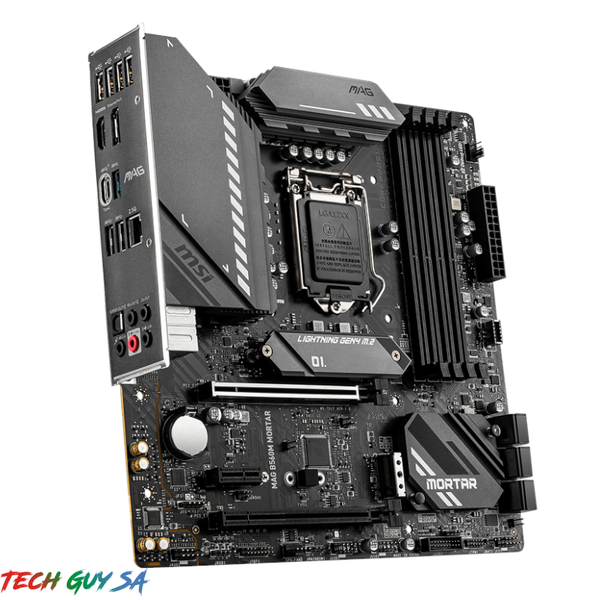

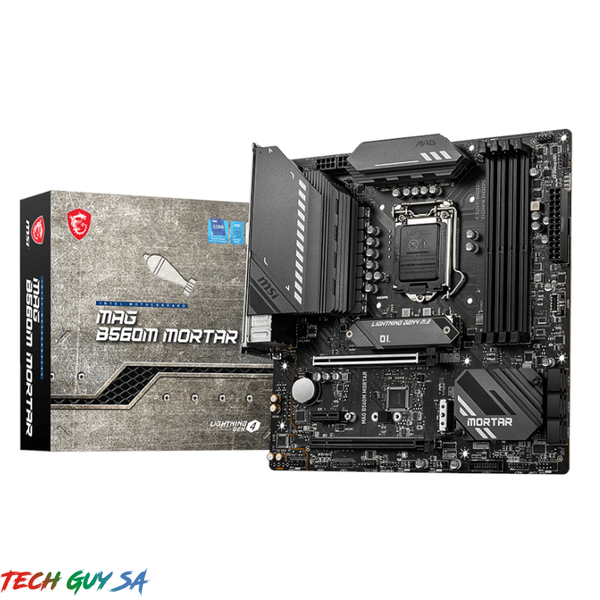

MSI MAG B560M MORTAR
LGA1200 – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
The MSI MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers and more demanding users alike. With more coresā processors, thermal and power design is more important to make sure the temperature keeps lower.
MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youāre a gamer, prosumer, or PC enthusiast.
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speeds. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
FEATURES:
- Supports 10th Gen IntelĀ®Ā Coreā¢, 11th Gen IntelĀ®Ā Coreā¢, PentiumĀ®Ā Gold and CeleronĀ®Ā processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armour PCIe slots. Supports AMD Crossfire Technologyā¢
SPECIFICATIONS:
- Socket: 1200
- CPU (Max Support): i9
- Chipset: IntelĀ® B560 Chipset
- DDR4 Memory: 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E x1: 1
- SATAIII: 6
- M.2 Slot: 2
- LAN: 1x RealtekĀ® 8125B 2.5Gbps LAN
- USB 3.2 ports (Front): 1(Gen 2, Type C), 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 1(Gen 2Ć2, Type C), 3(Gen 1, Type A)
- USB 2.0 ports (Front): 4
- USB 2.0 ports (Rear): 4
- Audio ports (Rear): RealtekĀ® ALC897 Codec
- DisplayPort: 1
- HDMI: 1
- Form Factor: Micro-ATX
- CrossFire: Yes
- Operating System: Support for WindowsĀ® 10 64-bit
WHATāS IN THE BOX:
- MSI MAG B560 Mortar Intel 1200 Micro-ATX Motherboard ā Black x1
- SATA cables x2
- M.2 Screws/Standoff Sets x2
- Driver DVD x1
- User Manual x1
- Quick Install Guide x1
| Weight | 2 kg |
|---|---|
| Dimensions | 28 × 8 × 27 cm |
| Brand |
MSI |
| Socket |
LGA 1200 |
| CPU Support |
10įµŹ° Generation ,11įµŹ° Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
B560 |
| Form Factor |
mATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
