MSI LGA1200 Z490 4XDDR4 3XM.2 NVME ML – End of Life

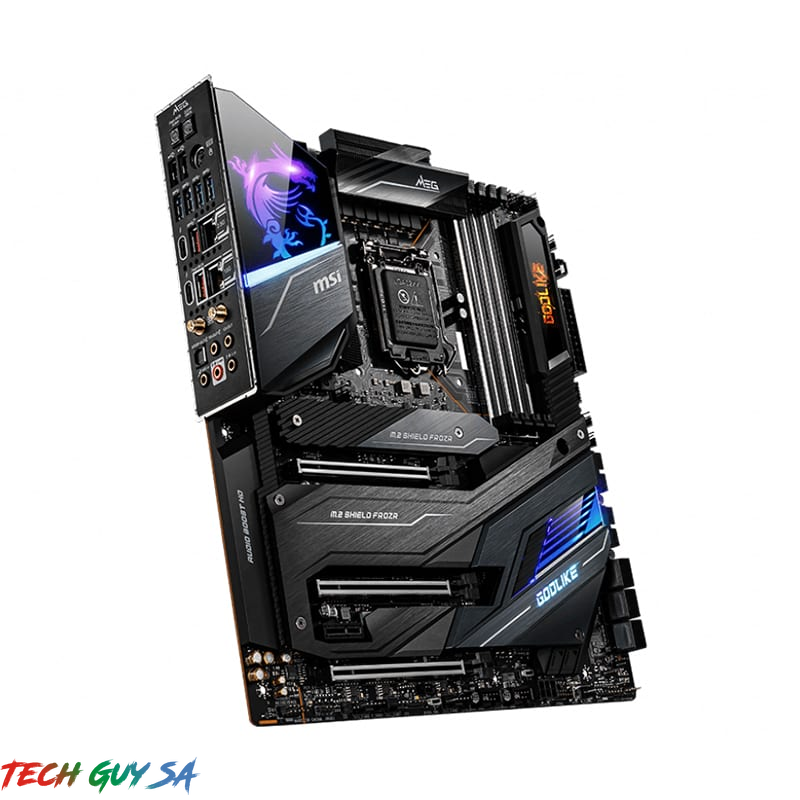

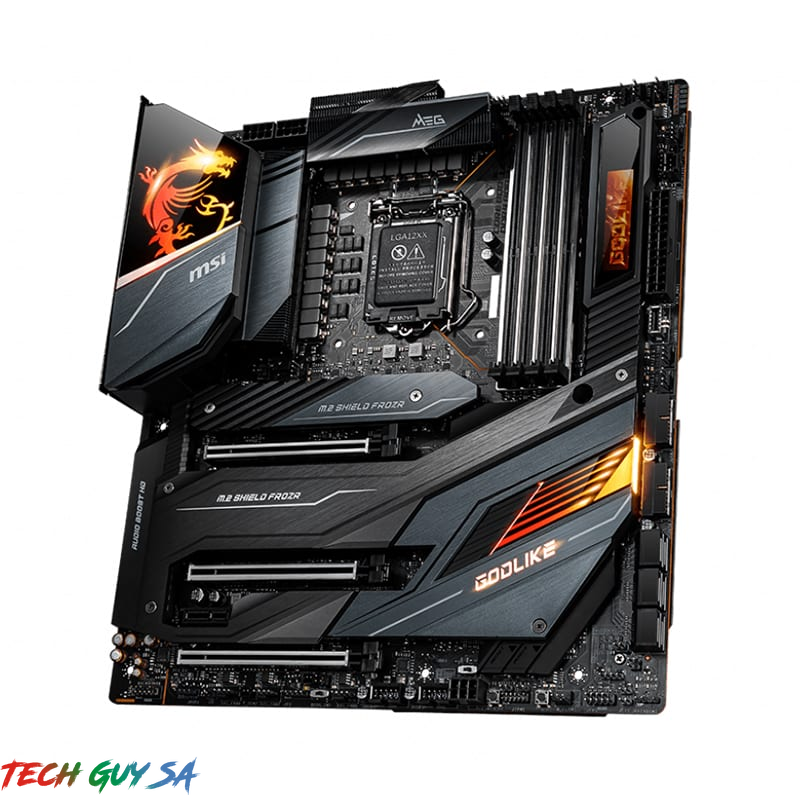

The MSI MEG Z490 Godlike Intel 1200 E-ATX Motherboard seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

FEATURES:

• Supports 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5000(OC) MHz
• Ready 4 the Future: Support Lightning Gen 4 Solution for the future
• Dual Thunderbolt™ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
• Dynamic Dashboard II: Built-in colorful OLED screen panel indicates the status of GODLIKE and shows off your own personality.
• Extreme Power Design: INTERSIL digital PWM, 16+1+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
• Outstanding Cooling Solution: Stacked Fin Array, VRM Heat-pipe, Frozr Heatsink, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp.
• Latest Network Solution: Onboard 10G Super LAN, 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
• Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
• M.2 XPANDER-Z GEN 4 S: This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed.

SPECIFICATIONS:

• Socket: 1200
• CPU (Max Support): i9
• Chipset: Intel® Z490 Chipset
• DDR4 Memory: 5000(OC)/4800(OC)/4600(OC)/4533(OC)/4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 128
• PCI-E x16: 3
• PCI-E x1: 1
• SATAIII: 6
• M.2 Slot: 3
• RAID: 0/1/5/10
• LAN: 1x Aquantia® AQC107 10G LAN controller – 1x Realtek® RTL8125B 2.5G LAN controller
• USB 3.2 ports (Front): 1(Gen2, Type C), 4(Gen1, Type A)

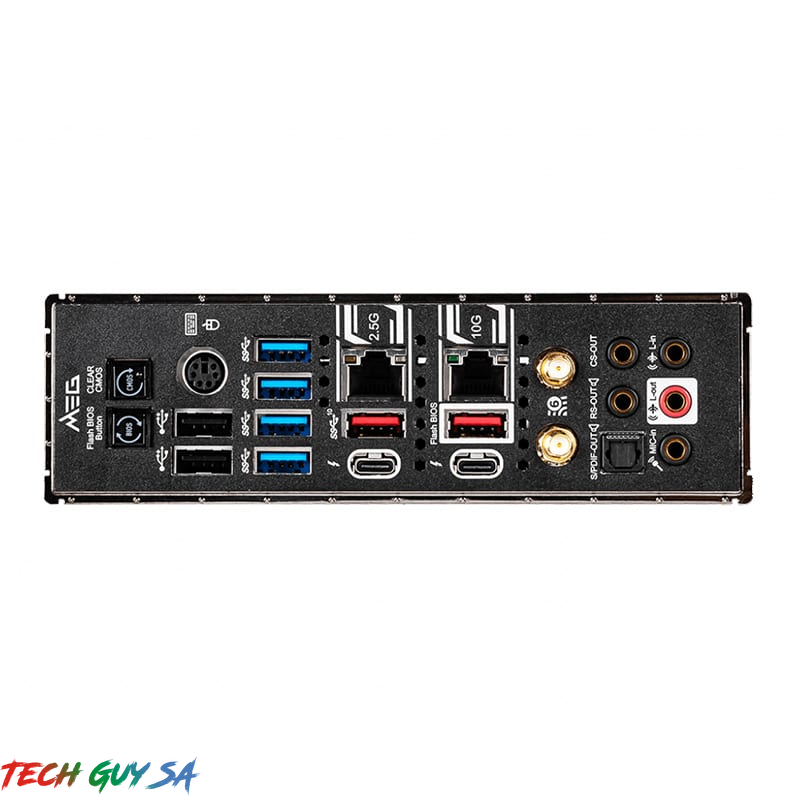

• USB 3.2 ports (Rear): 2(Gen2, Type C), 2(Gen2, Type A) ,4(Gen1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2
• Audio ports (Rear): Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
• DisplayPort: 1
• DirectX: 12
• Form Factor: E-ATX
• SLI: Yes
• CrossFire: Yes
• Operating System: Support for Windows® 10 64-bit

WHAT’S IN THE BOX:

• MSI MEG Z490 Godlike Intel 1200 E-ATX Motherboard – Black x1
• SATA cables x3
• Driver USB Pen Drive x1
• Godlike Quick Guide x1
• User Manual x1
• Quick Install Guide x1
• M.2 Xpander-Z Gen4 S x1
• Wi-Fi Antenna x1
• 1 to 2 RGB LED Extension Y Cable x1
• Rainbow RGB LED Extension Cable x1
• Corsair RGB LED Extension Cable x1
• Thermistor Cable x2
• MSI Draw Pocket x1
• SATA Cable Labels x1
