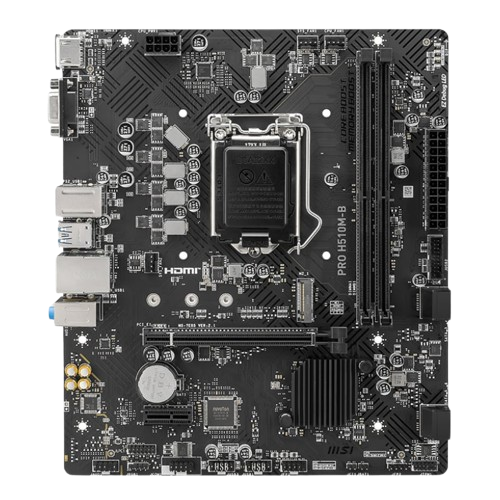

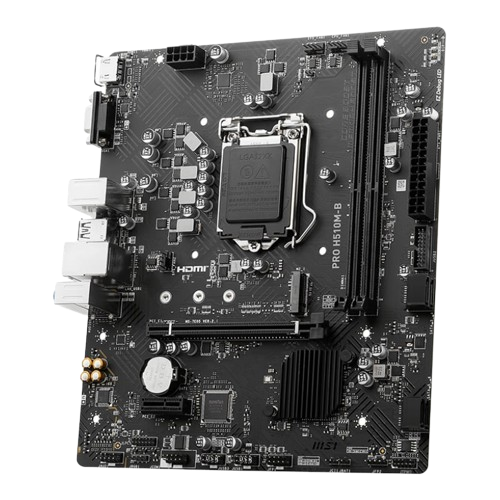

MSI H510m Pro-B Intel Lga1200 M-Atx Motherboard

The PRO Series Motherboards enhances user productivity by providing an efficient and effective working experience. They not only optimise professional workflows but also reduce troubleshooting and ensure longevity.

The system utilises MSI AI ENGINE to detect CPU and GPU temperatures and automatically adjust the fan duty of system fans to an appropriate value. MSI motherboards provide the capability to control the speeds and temperatures of all the fans in your system, including those for your CPU. You have the option to set up to four temperature targets for both the CPU and motherboard. This will allow the fan speeds to be adjusted automatically based on these temperature thresholds.

MSI conducts comprehensive memory testing using the most popular memory brands in extreme conditions to ensure the stability of your system under any circumstances. We have partnered with well-known brands such as Corsair, Crucial, Kingston, G.Skill, and many others to enhance memory modules and configurations for optimal performance.

The Core Boost technology from MSI combines a premium layout and optimised power design. This results in faster and undistorted current delivery to the CPU with pin-point precision. In addition to supporting multi-core CPUs, our product also provides the optimal conditions for overclocking your CPU.

FEATURES:

• Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933MHz (MAX)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

• Socket: 1200
• Chipset: Intel® H470 Chipset
• Memory Channel: Dual
• Memory Support: DDR4 2933/ 2666/ 2400/ 2133 MHz
• DIMM Slots: 2
• Max Memory (GB): 64
• XMP Support: Yes
• PCI-E x16: 1
• PCI-E X1: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM Header: 1

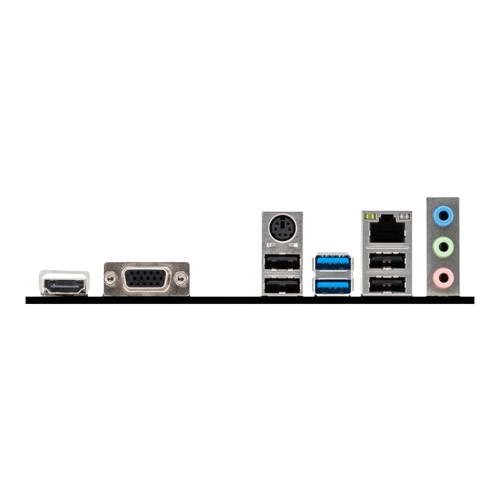

• LAN: 1x Realtek® 8111H Gigabit LAN
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 2(Gen 1, Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4
• Serial Ports (Front): 1
• Audio ports (Rear): Realtek® ALC897 Codec
• HDMI: 1
• VGA: 1
• DirectX: 12
• Form Factor: m-ATX
• Operating System: Support for Windows^® 11 64-bit, Windows® 10 64-bit

WHAT’S IN THE BOX:

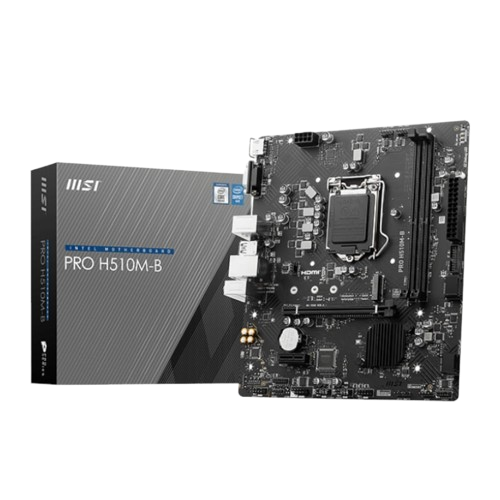

• MSI PRO H510M-B Intel DDR4 m-ATX Motherboard – Black x1
• SATA cable x1
• M.2 Screw/Standoff Set x1
• I/O Shield x1
• Quick Install Guide x1
