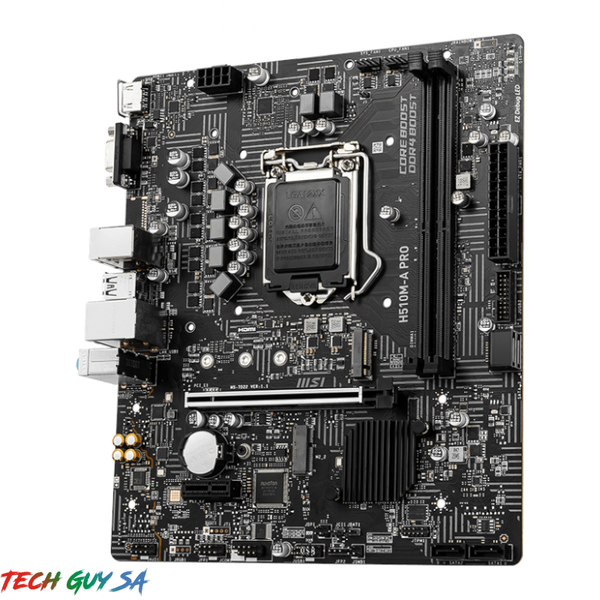

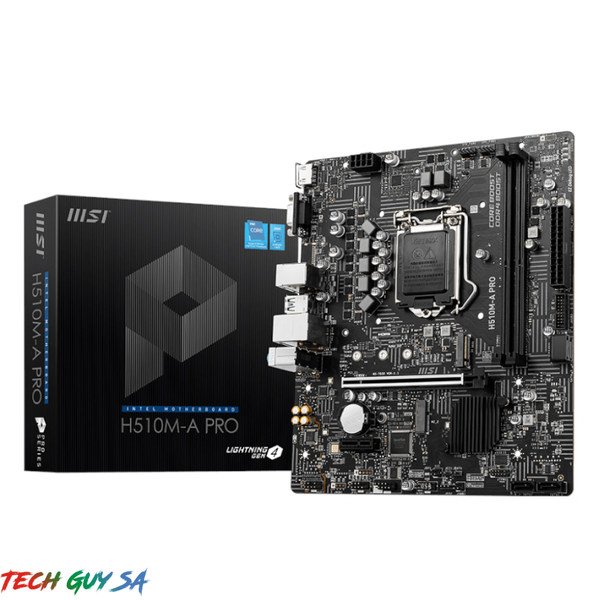

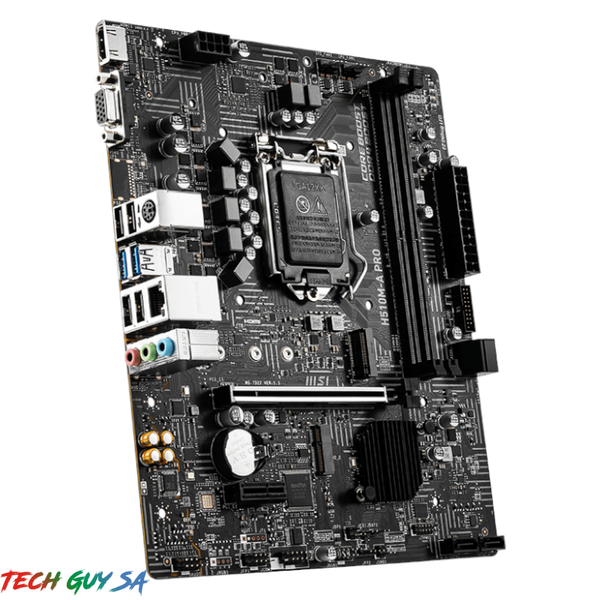

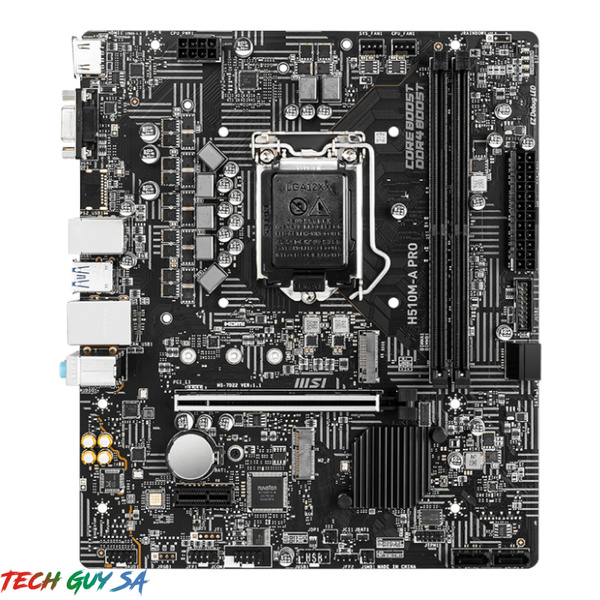

MSI H510M-A PRO Intel LGA1200 M-ATX Motherboard – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
MSI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it so easy to install your own motherboard without any issue.
The most important thing about DIY is expandability. MSI PRO Series motherboards feature plenty of possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
Elevate your listening pleasure and enjoy the extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
FEATURES:
- Supports 10thĀ Gen IntelĀ®Ā Coreā¢, 11thĀ Gen IntelĀ®Ā Coreā¢, PentiumĀ®Ā Gold and CeleronĀ®Ā processors for LGA 1200 socket
- Supports DDR4 Memory, up to 3200(Max) MHz
- Core Boost:Ā With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost:Ā Advanced technology to deliver pure data signals for the bestĀ performance and stability.
- Lightning Fast Experience: PCIe 4.0
- Turbo M.2:Ā Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor:Ā Protecting VGA cards against bending and EMI for better performance, stability and strength.
SPECIFICATIONS:
- Socket: 1200
- CPU (Max Support): i9
- Chipset: IntelĀ® H510 Chipset
- DDR4 Memory: 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Memory Channel: Dual
- DIMM Slots: 2
- Max Memory (GB): 64
- PCI-E x16: 1
- PCI-E Gen: Gen4
- PCI-E x1: 1
- SATAIII: 4
- M.2 Slot: 2
- LAN: 1x IntelĀ® I219V Gigabit LAN controller
- USB 3.2 ports (Front): 2(Gen 1, Type A)
- USB 3.2 ports (Rear): 2(Gen 1, Type A)
- USB 2.0 ports (Front): 2
- USB 2.0 ports (Rear): 4
- Serial Ports: 1
- Audio ports (Rear): RealtekĀ® ALC897 Codec
- VGA: 1
- HDMI: 1
- DirectX: 12
- Form Factor: Mirco-ATX
- Operating System: Support for WindowsĀ® 10 64-bit
WHATāS IN THE BOX:
- MSI H510-A PRO Intel 1200 Micro-ATX Motherboard ā Black x1
- SATA cables x2
- M.2 Screws/Standoff Sets x1
- I/O Shield x1
- Driver DVD x1
- Quick Install Guide x1
| Weight | 1 kg |
|---|---|
| Dimensions | 26 × 26 × 6 cm |
| Brand |
MSI |
| Socket |
LGA 1200 |
| CPU Support |
10įµŹ° Generation ,11įµŹ° Generation |
| Chipset Manufacture |
Intel |
| Chipset Model |
H510 |
| Form Factor |
mATX |
| Memory Slots Available |
2 Slots |
| On-Board WiFi |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
