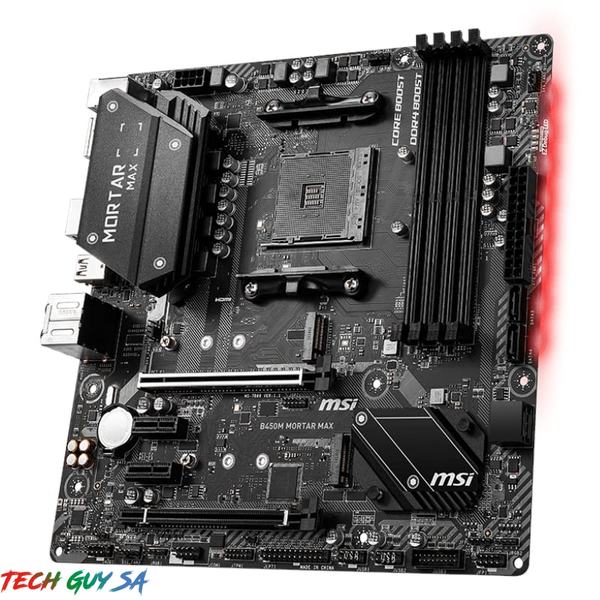

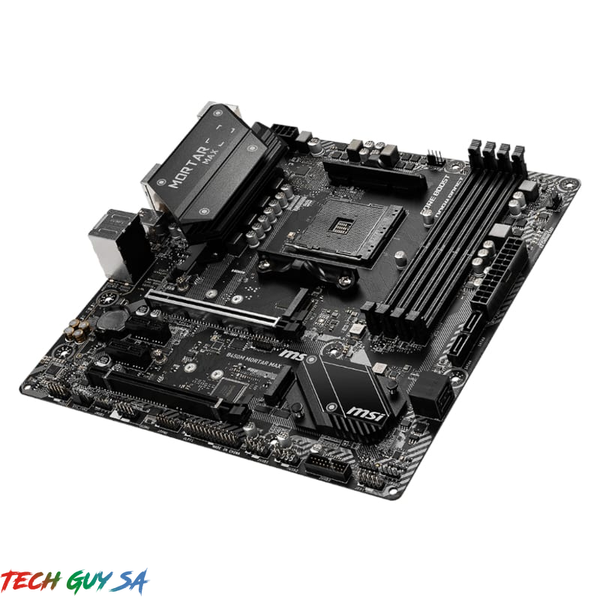

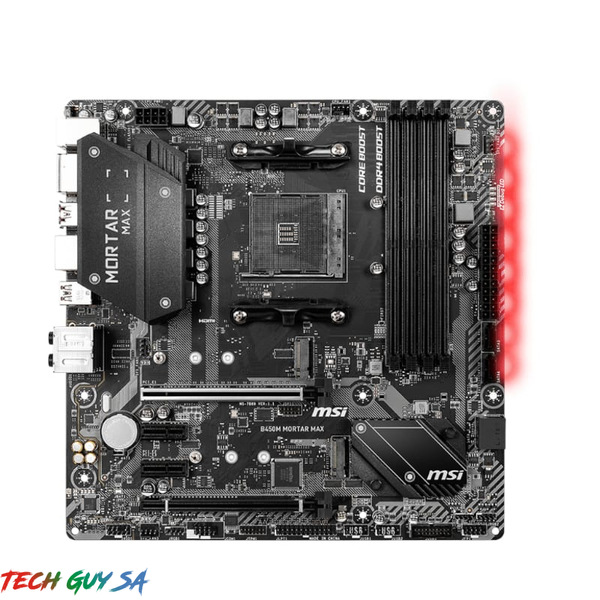

MSI B450M MORTAR MAX AMD AM4 M-ATX Gaming Motherboard – End of Life
SKU / Product is End of Life
Pay R0 When paying via EFT at checkout.
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
FEATURES:
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
SPECIFICATIONS:
- Socket: AM4
- CPU (Max Support): RYZEN 9
- Chipset: AMD® B450 Chipset
- DDR4 Memory: 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) | For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) | For AMD Other CPU – 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E X16: 2
- PCI-E Gen: Gen3(PCI_E1), Gen2(PCI_E4)
- PCI-E X1: 1
- SataIII: 4
- M.2 Slot: 2
- Raid: 0/1/10
- TPM (Header): 1
- LAN: 1x Realtek® RTL8111H-CG

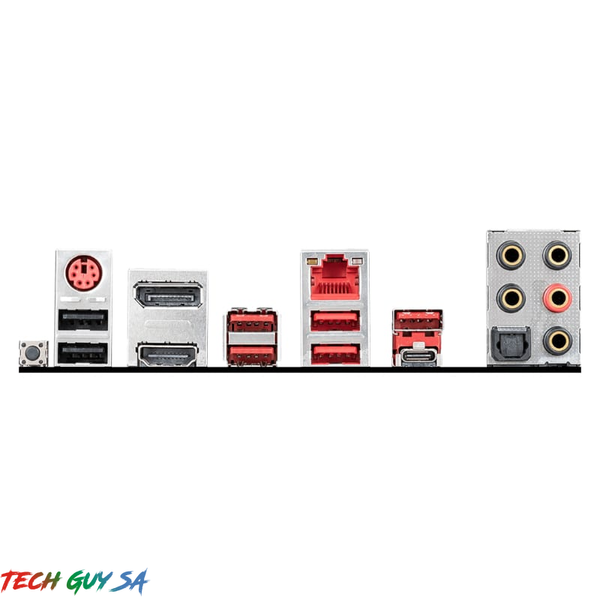

- USB 3.2 Ports (Front): 2(Gen1, Type A)
- USB 3.2 Ports (Rear): 1(Gen2, Type C), 1(Gen2, Type A), 4(Gen1, Type A)
- USB 2.0 Ports (Front): 4
- USB 2.0 Ports (Rear): 2
- Serial Ports(Front): 1
- Parallel Port(Front): 1
- Audio Ports (Rear): Realtek® ALC892 Codec
- Displayport: 1
- HDMI: 1
- DirectX: 12
- Form Factor: Micro ATX
- Crossfire: Yes
- Operating System: Support for Windows® 10 64-bit / Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
WHAT’S IN THE BOX:
- MSI B450M Mortar Max AMD AM4 ATX Gaming Motherboard – Black x1
- SATA cables 15cm x2
- Driver CD x1
- IO Shield x1
- User Guide x1
- Quick Install Guide x1
| Weight | 2 kg |
|---|---|
| Dimensions | 28 × 27 × 7 cm |
| Brand |
MSI |
| Socket |
AM4 |
| CPU Support |
Ryzen 1000 Series ,Ryzen 2000 Series ,Ryzen 3000 Series ,Ryzen 4000 Series ,Ryzen 5000 Series |
| Chipset Manufacture |
AMD |
| Chipset Model |
B450 |
| Form Factor |
mATX |
| Memory Slots Available |
4 Slots |
| On-Board WiFi |
No |
| Windows Compatibility |
Windows 10 ,Windows 11 ( Possibly Requires TPM ) |
