Mecer 1KW Plug And Play Inverter System All In One
THE BEST PORTABLE PLUG AND PLAY INVERTER
This plug and play inverter is easily transported to where ever you need it and its compact size makes it easy to store away when not in use.
Its plug-and-play ability makes it the perfect companion during load shedding and it will run your essential loads. This unit does not need to be installed so you wonĀt have to spend on solar installations which makes it even more cost-effective.
– Pure Sinewave for Sensitive Electronics & Motorized Loads
– Microprocessor Control Optimizes Reliability
– Input Power Factor Correction
– Output Power Factor 1.0
– Comprehensive Display Allows Easy Monitoring & Access of UPS Status
– Built-in MPPT solar charger
– 2 x USB 5 V DC output and 2 x 12 V DC output
– Battery cut off switch for safety
– Pre-installed batteries
Specifications
– RATED POWER: 1000 W
– OUTPUT VOLTAGE: 220 VAC
– OUTPUT FREQUENCY: 50 / 60 Hz
– OUTPUT WAVEFORM: Pure Sine Wave
SOLAR INPUT
– MAXIMUM PHOTOVOLTAIC VOLTAGE (VDC): ~ 25 V
– CHARGE VOLTAGE (VDC): 10 V – 25 V
– RATED CHARGE CURRENT (A): 30 A
– MAXIMUM POWER (Wp): 360 Wp
– VOLTAGE OVERCHARGE PROTECTION (VDC): 14.2 V
– VOLTAGE OVERCHARGE RECOVERY (VDC): 14.0 V
– VOLTAGE OF FLOATING CHARGE (VDC): 13.7 V
OUTPUT
– AC OUTPUT: 2 x SA 3 Pin Socket – 230 V 50 Hz, 1000 VA / 1000 W Max. (Combined)
– USB OUTPUT: 2 x USB Type A Port – 5 VDC 2 A Max.
– DC OUTPUT: 2 x 12 V DC Port 2 A Max.
– BATTERY TYPE: 1 x 12 DC 100 AH Deep Cycle VRLA Gel Battery

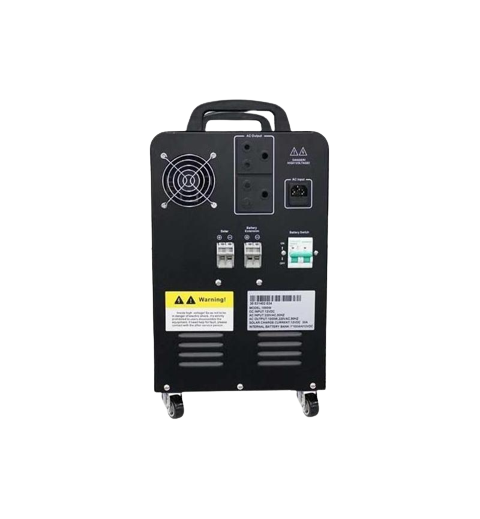

Ports and Interfaces
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch
