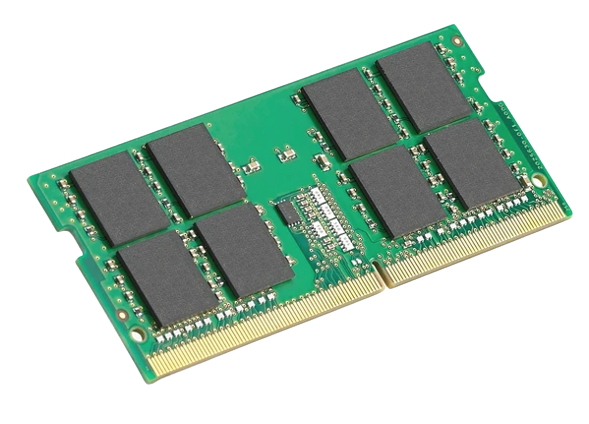

Kingston Valueram 16GB DDR4 3200MT/s CL 22 Non-ECC Unbuffered SODIMM – KVR32S22D8/16

DESCRIPTION SPECIFICATIONS

KVR32S22D8/16

16GB 2Rx8 2G x 64-Bit PC4-3200

CL22 260-Pin SODIMM

FEATURES

This document describes ValueRAM’s KVR32S22D8/16 is a 2G x

64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),

2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit

FBGA components. The SPD is programmed to JEDEC standard

latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM

uses gold contact fingers. The electrical and mechanical

specifications are as follows:

CL(IDD)

Row Cycle Time (tRCmin)

Refresh to Active/Refresh

Command Time (tRFCmin)

Row Active Time (tRASmin)

UL Rating

Operating Temperature

Storage Temperature

22 cycles

45.75ns(min.)

350ns(min.)

32ns(min.)

94 V – 0

0o C to +85o C

-55o C to +100o C

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for

data, strobe, and mask signals

• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8

via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

kingston.com Document No. VALUERAM1616A 05/10/19 Page 1

Memory Module Specifi cations

MODULE DIMENSIONS

continued HyperX

Document No. VALUERAM1616A Page 2

1.20

3.7 Max

Side

All measurements are in millimeters.

(Tolerances on all dimensions are ±0.12 unless otherwise specified)
