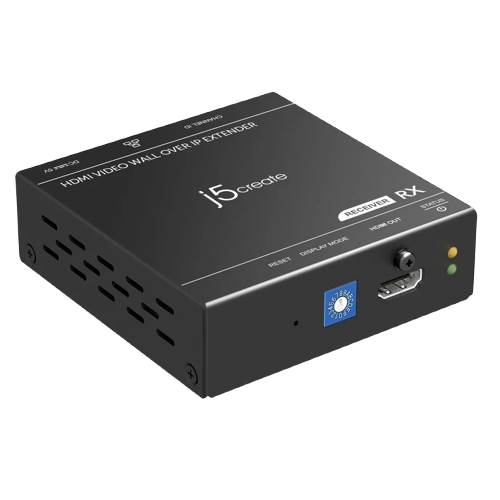

J5create JVAE52 HDMI Video Wall over IP Extender – Reciever
R1,520 Incl VAT
Pay R1,474 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
About This Product
The HDMI™ Video Wall over IP Extender is cost effective and includes a transmitter and receiver kits. It can send high definition video and audio signals to an HDMI™ or DVI enabled TV set, projector or LCD PC monitor display device with a receiver distance up to 100 meters with uncompressed signal and nearly zero latency. Users can extend other HDMI™ full HD sources from a Blu-Ray Disc™ player, DVD player, PC, notebook, gaming machine (e.g. SONY™ PlayStation™, Nintendo Switch™, etc.). It is HDCP compliant. The HDMI™ supports resolutions up to 1080p full HD and stereo digital audio.
Easily build a matrix display, no software or utilities required. The JVAE52 is specifically designed for a 10-position rotary switch for 10 TX-RX pairing and 16-position rotary switch for video display. Configuration supports 1×2, 2×2 or 3×3 matrix displays & different display modes. With a Gigabit Ethernet network switch (must support IGMP snooping), the JVAE52 can be point-to-point, point-to-multipoint, and multipoint-to-multipoint on the same IP LAN. Achieve multiple screens for all kinds of environments, such as, digital surveillance systems, digital signage, trade shows, college campuses, airports, shopping centers and conference centers.
Features
-
- • Extend high definition video signal over Ethernet (100 Mbps/1 Gbps)
- • Point-to-point up to 330 feet (100 meters) over cat5e/cat6 Ethernet cable, supports Ethernet topology (must support IGMP snooping). Specifically designed for a 10-position rotary switch for 10 TX-RX pairing
- • Easily build a matrix display, no software or utilities required. 16-position rotary switch for video display configuration; supports 1×2, 2×2 or 3×3 matrix displays and different display modes
- • A friendly additional GUI application for video wall remote settings and management
- • Near zero signal latency and frame delay
- • Each pairing process can be broadcasted up to 250 locations (TVs/Projectors)
- • Supports 480i/576i/720i/1080i/480p/576p/720p/1080p and HDTV compatible
- • Supports HDMI™ 1.3, HDCP 1.2 and DVI 1.0 compliant. Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
- • Supports many connection configurations:
– Direct connect from transmitter (TX) unit to receiver (Rx) unit – TX unit to network switch to RX unit
– TX unit to network switch (must support IGMP snooping) to multiple Rx units
– TX unit to network topology (must support IGMP snooping) to multiple Rx units
– Multiple TX units to network switch (must support IGMP snooping) to multiple Rx units - • A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- • Compatible with PlayStation® and Xbox™ game systems, Blu-ray™ players, set-top boxes and more
- • VESA mounting bracket supported
JVAE52 Specfications
Technical Model Name JVAE52 Transmitter (TX) JVAE52-TX (Not Included) Receiver (RX) JVAE52-RX HDMI™ Compliance HDMI™ v1.3 HDCP Compliance HDCP 1.2 Video Impedance 100 Ω HDMI™ Audio Formats Stereo digital audio Video Resolution Input Resolution Range:
640 x 480 to 1600 x 1200 and 1920 x 1080, 480p/i, 576p/i,
720p/i, 1080p/i @60/50Hz
Output Resolution Range:
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800,
1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900,
1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080
HDTV: HDTV 480p, 576p, 720p, 1080i, 1080pMax. Video Data Rate 4.96 Gbps Max. Ethernet Cable Distance Point-to-point 330 feet (100 meters) over cat5e/6 cable. Supports Ethernet topology (must support IGMP snooping). Ethernet Cable Requirements Solid conductor, 24 AWG or better ESD Protection Human bodymodel: air- gap discharge: +-15kv
contact discharge: +-8kv

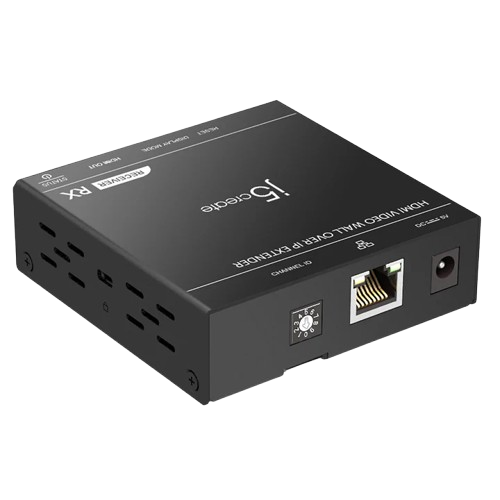

OVP Protection Voltage Protection Up to DC 20 Volts Input /Output HDMI™ Connector Type-A 19-pin female input with lock x1 Ethernet Connector RJ45 port (100/1000BASE-TX Ethernet) female 8P/8C with 2 LED indicators x1 Power Supply DC jack 3.5 mm 10-Position Dip Rotary Switch TX and RX each have a 10 group DIP switch for TX-RX pairing. Dip rotary switch color: black

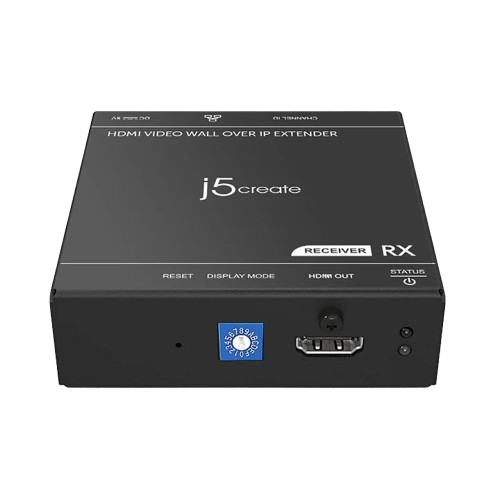

16-Position Dip Rotary Switch RX has a 16-position video display configuration, supports full screen, 1 x 2, 2 x 2 or 3 x 3 matrix Dip rotary switch color: blue
LED LED x 2 Upper amber LED: product status indicator
Bottom green LED: power ON indicator
Buttons Recall to default button x1 Mechanical Enclosure Type Aluminum Enclosure Color Black Enclosure Dimensions
(W x D x H)87.20 x 88.00 x 27.00 mm Enclosure Dimensions
with Bracket (W x D x H)112.00 x 88.00 x 27.00 mm Product Weight 120g Product Weight with Bracket 156g Power Supply Input: 100 – 240V AC, 50 – 60 Hz, 0.4A Output: 5V DC, 2A, 10 watts
Power Consumption Max. ≦ 4 watts Operation Environment Operation Temperature +32 to +122 °F (0 to +50 °C) Storage Temperature -40 to +158 °F (-40 to +70 °C) Relative Humidity 20% to 80% RH, non-condensing Regulatory Compliance CE, FCC Class A, RCM, UL, VCCI, BSMI
Complies with the appropriate requirements of RoHS, WEEEProduct Limited Warranty 2 years Package Contents
- • JVAE52-RX HDMI™ Video Wall over IP Extender Receiver x 1
- • 5V/2A Universal Power Adapter x 1
- • Screwdriver for Dip Rotary Switch Adjustment x 1
- • Wall Mounting Bracket x 1
- • Hook & Loop Fastener x 1
- • Installation Manual x 1
