Supports 4K capture and 4K60 HDR pass-through
View your gameplay at high resolutions with the 4K capture and 4K HDR pass-through
Perfect for live streaming and recording gameplay
Compatible with OBSā¢, XSplitĀ®, CameraFiā¢, QuickTimeĀ®, and other video streaming software. Suitable for gaming consoles such as PlayStationā¢ 4/5, Xboxā¢ Series X/S, Xboxā¢ One X / S and Switchā¢

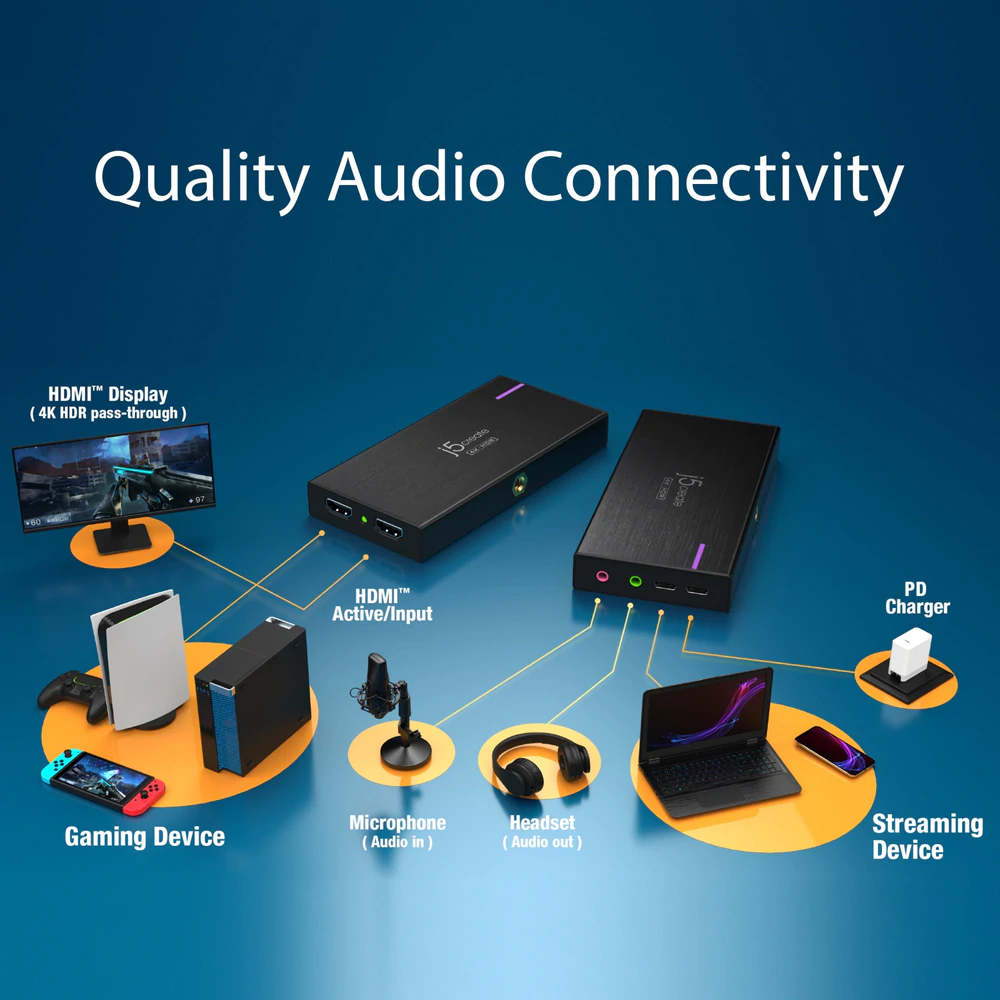

Quality Audio Connectivity
The JVA14 features a flexible audio connection via HDMIā¢ or analog 3.5 mm ports so you can record audio directly from game consoles, computers, or output to speakers/mixers
Low-latency streaming with a USBā¢ 3.2 connection
High-speed USBā¢ connection allows for quick data transfer and high quality streaming

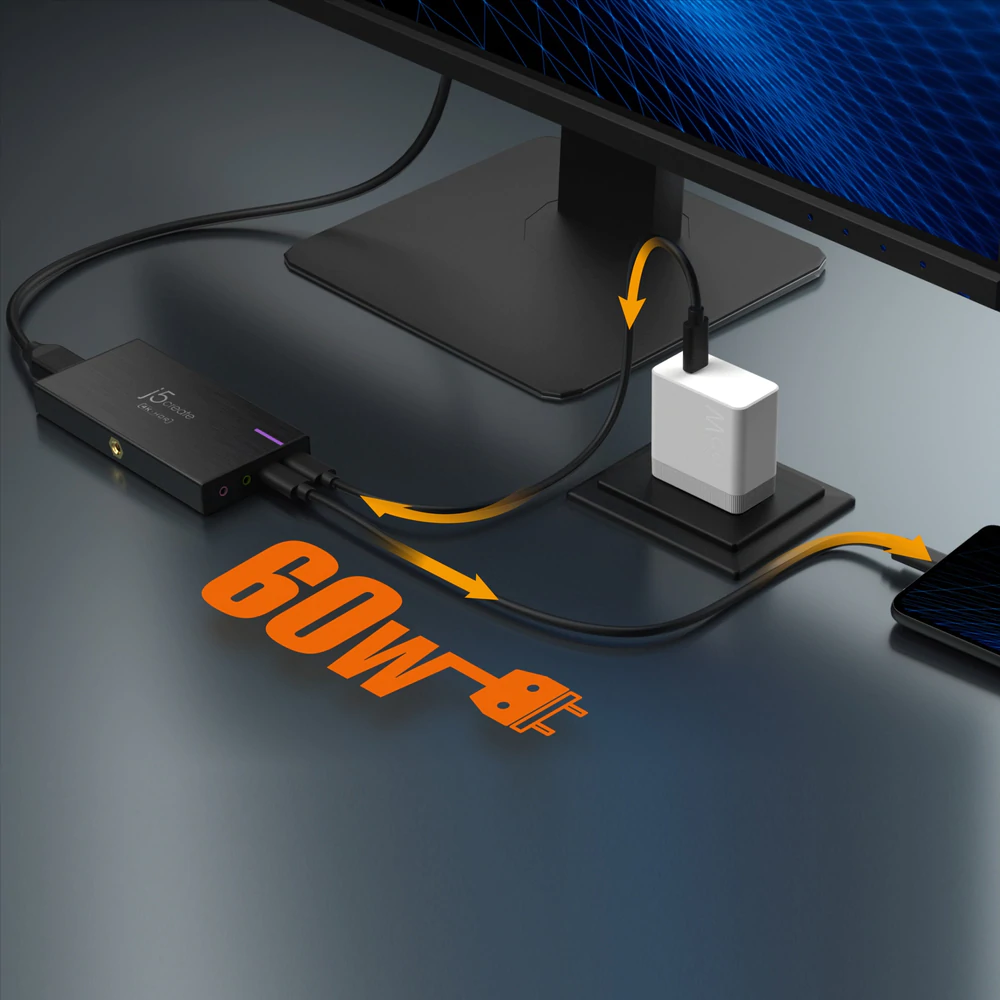

60W Power Delivery 3.0
Allows phones and laptops with USB-CĀ® power delivery to stay charged while being used as a streaming device
Easy DSLR attachment with 2 cold shoes embedded
LED indicator to keep track of USBā¢ speeds and compression rates
– USBā¢ 3.0 connection: Purple
– USBā¢ 2.0 connection: Blue
– Power Only: Orange
No driver installation required
-
About This Product

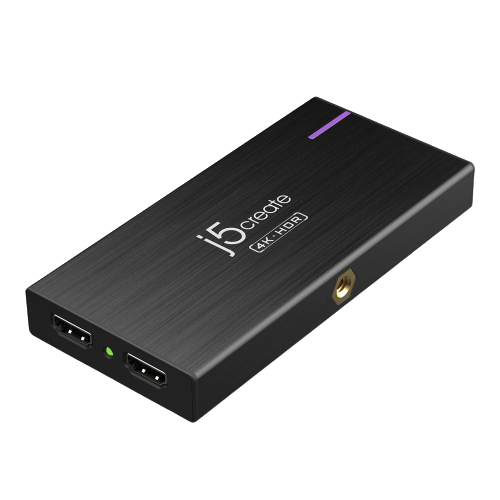

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStationā¢ 4 / 5, Xboxā¢ Series X / S, Xboxā¢ One X / S. It is fully compatible with OBSā¢ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOSĀ® and WindowsĀ® laptops and desktops.
Features
- ā¢ Uncompressed 4K@30 Capture + 4K@60 Loop Out
- ā¢ 4K60 pass-through support (Uncompressed)
- ā¢ Power Only: Orange
- ā¢ No driver installation required

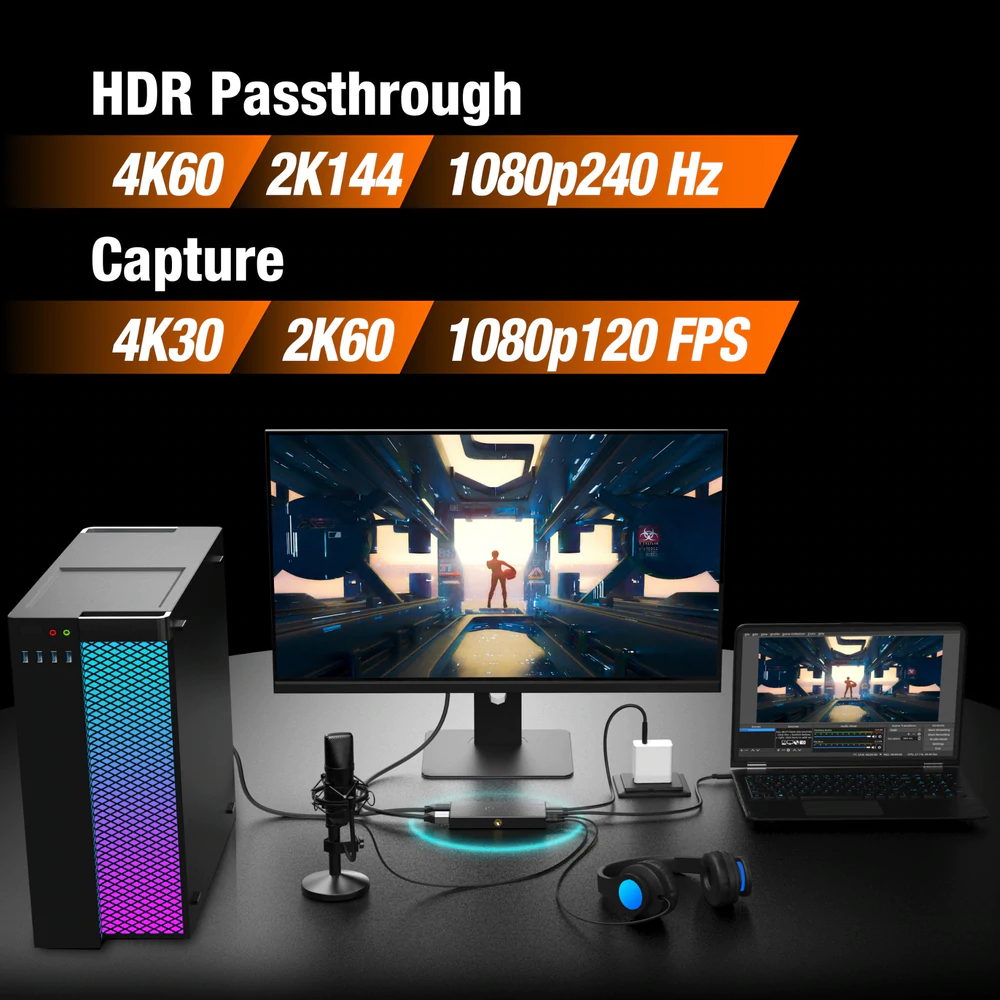

- ā¢ HDR Passthrough: Supports resolutions up to 4K @ 60 Hz, 1440p @ 144 Hz, and 1080p @ 240 Hz
- ā¢ Ultra-low latency stream with high-performance USB-CĀ® 3.2 connection
- ā¢ LED indicator to keep track of USBā¢ speeds and compression rates
- ā¦ USBā¢ 3.0 connection: Purple (Uncompressed)
- ā¦ USBā¢ 2.0 connection: Blue (Uncompressed)
System Requirements
- ā¢ Available USB-CĀ® or USBā¢ Type-A port (USBā¢ 3.2 / 3.0 is recommended)
- ā¢ WindowsĀ® 7 or later
ā¢ macOSĀ® 10.12 or later
ā¢ Androidā¢ 8.1 or later - ā¢ CPU: IntelĀ® Coreā¢ i7 6700HQ & above
- ā¢ GPU: NVIDAĀ® GTX 960M & above
- ā¢ RAM: 8 GB or higher
Hardware | |
Warranty | 2 Year Limited |
Host Connector | 1 – USB-CĀ® 3.2 Female |
Video Input | 1 – HDMIā¢ Female |
Video Output | 1 – HDMIā¢ Female |
Audio Input | 1 – 3.5mm AUX |
Audio Output | 1 – 3.5mm AUX |
Video Switcher | N/A |
Audio Switcher | N/A |
Power Source | Bus-powered |

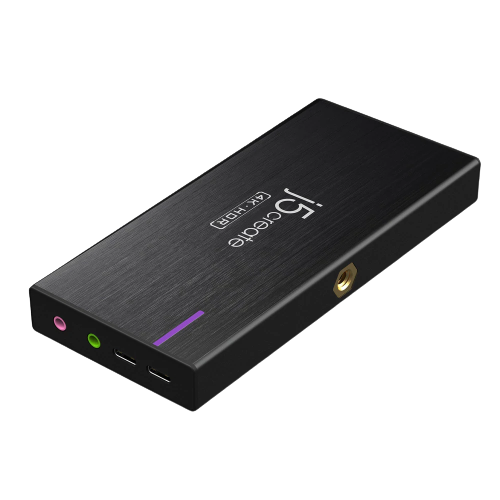

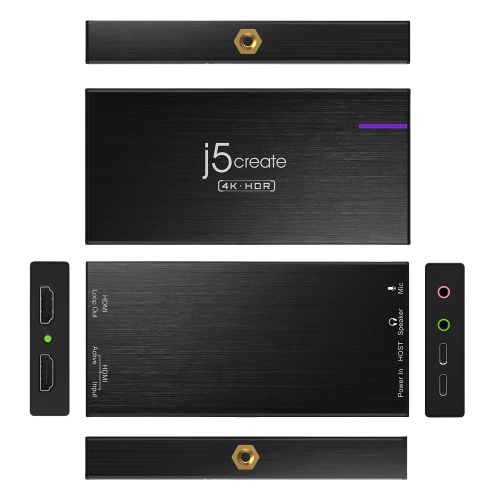

Ports | 1 – USB-CĀ® 3.2 Gen 1 1 – HDMIā¢ Input 1 – HDMIā¢ Output 1 – Audio Out (3.5 mm) 1 – Mic In (3.5 mm) |
Performance | |
Maximum Capture Resolution | 3840 x 2160 |
Maximum Passthrough Resolution | 3840 x 2160 |
Maximum Capture Refresh Rate | 4K30 FPS, 2K60 FPS, 1080p120 FPS |
Maximum Passthrough Refresh Rate | 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR |
Audio Channel | 2.1 via HDMIā¢ |
Audio Frequency | 48 kHz |
Microphone | Stereo microphone supported 24-bit sigma-delta ADC |
Headset | 2.1 Stereo |
Format | USBā¢ 3.0: RGB / YUV4:2:2 / YUV4:2:0 USBā¢ 2.0: YUV4:2:0 |
Maximum Capture Capability | USBā¢ 3.0: 3840 x 2160 @ 30 USBā¢ 2.0: 1280 x 720 @ 30 |
HDR Supported | Yes |
Power | |
Power Delivery | 60W via USB-CĀ® |
Power Consumption | ā¤900 mA |
Physical Specifications | |
Color | Black |
Enclosure Type | Aluminum |
Cable Length | 3.3 ft (1m) |
Product Height | 2.5 in. (63.7 mm) |
Product Width | 5.3 in. (134.6 mm) |
Product Depth | 0.7 in. (18.4 mm) |
Product Weight | 5.03 oz (142.5g) |
Storage Temperature | 14 to 149Ā°F (-10 to 65Ā°C) |
Storage Humidity | < 85% non-condensing |
Operation Temperature | 32 to 104Ā°F (0 to 40Ā°C) |
Operation Humidity | < 80% non-condensing |
Special Notes
- ā¢ N/A
Package Contents
- ā¢ 1 – JVA14 4K Game Capture Station
- ā¢ 1 – USB-CĀ® 3.0 to USBā¢ Type-A cable 1.96 ft / 60 cm
- ā¢ 1 – USB-CĀ® 3.0 to USB-CĀ® cable 1.96 ft / 60 cm
- ā¢ 1 – HDMIā¢ 2.0 cable 3.3 ft / 1m
- ā¢ 1 – Quick Installation Guide (QIG)
