Name: J5Create JVA08 Quad HDMI Video Capture Station
Brand: J5Create
SKU: GC-JVA08
Availability: OutOfStock

J5Create JVA08 Quad HDMI Video Capture Station

R6,900 Incl VAT

Pay R6,693 When paying via EFT at checkout.

Supplier out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

4 People watching this product now!

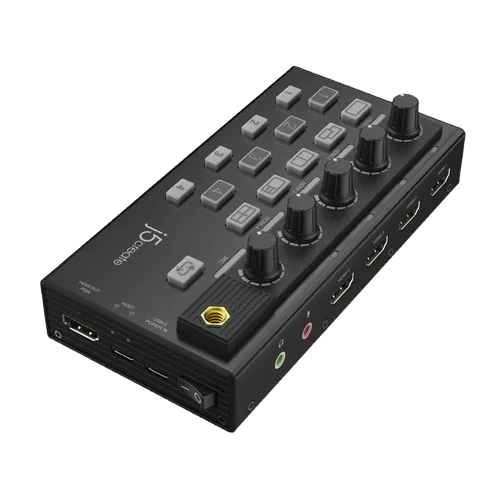

JVA08 Quad HDMI™ Video Capture Station

4 Channel HDMI™ Video Capture Support Live Streaming 1080p 60fps

Model: JVA08

The JVA08 Quad HDMI™ Video Capture Station Support Live Streaming 1080p 60fps High Resolution Multi-viewer USB™ 3.2 HD Recorder. Five modes (one source/PIP/PBP/Quad View [1+3]/Quad View). The casing pattern is displayed, the key operation is convenient, the image can be quickly switched, and the volume control adopts the knob. Easy Video Capture is a versatile USB™ video capture that works with all major platforms. It allows you to capture uncompressed 1080p video content from 4 HDMI™ sources simultaneously without compromising video quality. With a flexible audio connection via HDMI™ and analog 3.5 mm ports, you can record audio directly from game consoles, computers, or output to speakers/mixers. Volume control via knobs on 4 HDMI™ and analog 3.5mm ports lets you record audio directly from a game console, computer, or output to speakers/mixers. Whether you are streaming or webcasting an event or meeting, there are 5 screen mode configurations. The JVA08 4-in-1 HDMI™ Capture Live makes it easy to create professional multi camera productions for capture HD video or live streaming to YouTube. JVA08 4-in-1 HDMI™ Capture Live also allows exciting picture in picture effects, perfect for live commentary! To live stream, JVA08 has a USB output that works like a webcam, so you can connect to any video software. There’s also HDMI™ video out for projectors!

Featuring an audio mixer and cold shoe adapter for DSLR, the JVA08 is perfect for content producers, social media influencers, entrepreneurs, and others to livestream, broadcast, or edit videos for web series, webinars and more!

Take Your Streaming Production To The Next Level

Supports quad HDMI™ input and allows you to capture video from 4 channels simultaneously.

Exquisite and Flexible Control Panel

Set and control your streaming without any hassle.

Multiple Streaming Mode

Capturing video with 5 modes: Single View, PIP, PBP, Quad View [1+3], and Quad View.

Supports 1080p 60Hz uncompressed video capturing

Deliver smoother and sharper 1080p@60 streaming
* USB-C® or USB™ Type-A 5Gbps port is required on host device.

Flexible Audio Control

5 volume control knobs for individual volume control on 4 HDMI and analog 3.5mm ports

Perfect For Live Streaming And Broadcasting

It is fully compatible with OBS™, XSplit®, CameraFi™, QuickTime®, and other video streaming software. Compact design, suitable for field production

2 Embedded Cold Shoes For Easy Attachment

Can be fixed on the tripod with easy. Live streaming and multi signal control will be simpler and easier done.

Plug & Play

No driver installation needed, then it can start and run on the video software immediately.
* To ensure work properly: Available USB-C® or USB™ Type-A 5Gbps port on host is required. Please connect a USB-C® charger (10W or higher is recommended) to the USB-C® Power In port on the device when in use.

Dimensions And Package Contents

Suitable for Multiple Applications

4 HDMI™ inputs for capture with 5 modes
Full HD video and audio high performance record/playback through USB-C® 3.2 Gen1
Uncompressed 1080p 60 Hz capture via HDMI™ 1.3a
Supports 1080p 60 Hz HDMI™ loop out (PGM out)
5 screen mode (one source/PIP/PBP/Quad View [1+3]/Quad View)
8 buttons to quickly change display settings
5 volume control knobs for individual volume control on 4 HDMI™ and analog 3.5mm ports
Easy DSLR attachment with 2 cold shoes embedded
UVC standard, plug & play
LED activity indicator
- HDMI™ IN
- USB™ Link
- Volume Unit
- Mode selects

Hardware
audio input HDMI™ or 3.5 mm Mic in audio output HDMI™ or 3.5 mm Speaker out host connector 1 – USB-C® Male mode select button One source / Single display switch PIP (Picture in Picture) PBP (Picture by Picture) Quad View (1 + 3) Quad View (Split 4 screens) ports 1 – USB-C® 3.2 (host) 1 – USB-C® 3.2 (power) 4 – HDMI™ input 1 – HDMI™ output 1 – Mic in 1 – Speaker out 2 – Cold shoes power source Self-Powered (USB-C® DC IN–5V) return button Return video input 4 – HDMI™ Female video output 1 – HDMI™ Female warranty 2 Year Limited
Performance
audio channel 5 audio frequency 48 kHz compressions USB™ 2.0: YUY2 / NV12 USB™ 3.0: XRGB / YUY2 / NV12 hdr supported No headset 40 mW output power into 16Ω at 3.3V THD -75 dB at 20 mW SNR 90 dB with 16Ω load max display refresh rate 60 Hz microphone Stereo microphone supported 24-bit sigma-delta ADC supported resolution – input (HDMI™ format support) Progressive: 640 x 480 @ 60 720 x 480 @ 60 720 x 576 @ 50 800 x 600 @ 60 1024 x 768 @ 60 1280 x 720 @ 50 1280 x 720 @ 60 1280 x 800 @ 60 1920 x 1080 @ 24 1920 x 1080 @ 25 1920 x 1080 @ 30 1920 x 1080 @ 50 1920 x 1080 @ 60 supported resolution – output (HDMI™ format support) Progressive: 800 x 600 @ 60 1024 x 768 @ 60 1280 x 720 @ 60 1920 x 1080 @ 60 1280 x 1024 @ 60
Power
input current Max 2A input voltage 5V output current N/A output voltage N/A power consumption ≤ 2A power delivery N/A
Physical Specifications
cable length USB-C® to USB-C® 3.0 Cable: 23.6 inch (60 cm) color Black enclosure type Zinc Alloy #3 operating humidity < 85% non-condensing operating temperature 32 to 118°F (0 to 45°C) product depth 2.99 inch (76 mm) product height 1.85 inch (47 mm) product weight ≈ 20.6 oz (585 g) product width 5.94 inch (151 mm) storage humidity < 85% non-condensing storage temperature 14 to 149°F (-10 to 65°C)
Package Contents
1 – JVA08 Quad HDMI™ Video Capture Station 2 – USB-C® to USB-C® 3.0 cable (23.6 inch /60 cm) 1 – HDMI™ cable (39.4 in./100 cm) 1 – Quick Installation Guide (QIG)

System Requirements
Computer Windows® 10 and later / macOS® 11 and later CPU: Intel® Core™ i7 Gen 4 & above RAM: 8GB memory or higher Available USB-C® or USB™ Type-A 5Gbps port Smart Phone / Tablet Android™ 7.0 and higher CPU: Core 2 GHz & above RAM: 4 GB memory or higher Available USB-C® 5Gbps port Recommended Software Windows®: OBS™, XSplit® Broadcaster macOS®: OBS™, QuickTime® Android™: CameraFi™ Live
Special Notes
USB-C® 3.0 cable for better image quality and performance. This product does not come with a USB-C® charger. To ensure work properly, please connect a USB-C® charger (5V / 2A / 10W or higher is recommended) to the USB-C® Power In port on the device when in use.

Please note that We use either following Couriers
Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Ram / Rhenus / RTT / DCB MTE Express, Citi Spirits (CPT only) and more.

Virtual Items are emailed, This process may take a few hours (during Business operating hours Monday to Friday 08:00 - 17:00).

Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.

Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.

Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT)
Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB / DSV).

Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved:
Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals

J5Create JVA08 Quad HDMI Video Capture Station

This product is currently sold out.

JVA08 Quad HDMI™ Video Capture Station

Reviews

Elgato Game Capture 4K60 Pro video capturing device Internal PCIe

Corsair Elgato Game Capture Hd60 Pro Capture Card

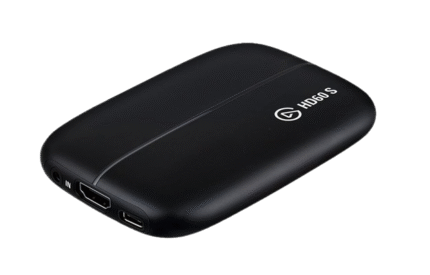

Elgato 1GC109901004 HD60 S External Capture Card
