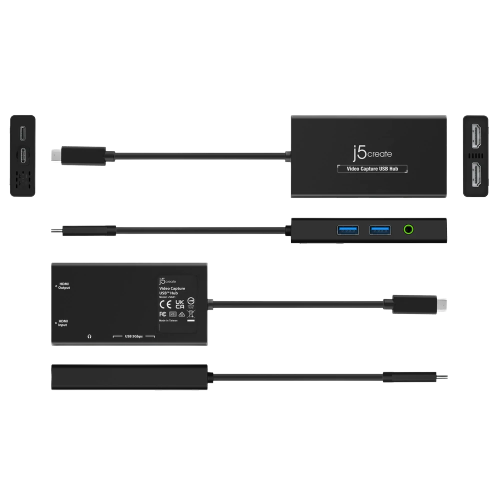

J5Create JVA01 Video Capture USB Hub
R1,000 Incl VAT
Pay R970 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
A unique USB-C® hub with video capture function, perfect for mobile live streaming from your phone or laptop
1080p video capture with ultra-low latency
Easily add an HDMI™ display with resolutions up to 4K
2 x SuperSpeed USB™ Type-A 5Gbps ports to connect additional peripherals
Supports PD Pass-Through charging up to 60W, so you can stream live without interruption
3.5 mm audio jack allows you to connect headphones or speakers
Perfect Gadget For Your Live Streaming
Portable Dock for USB-C® Game Consoles
Compliant with UVC standard. No driver installation required for Windows®, macOS®, or Android™.
Stream your online promotions or live shows easily with the JVA01
Perfect for on-the-go
Its compact and portable size make it a great tool for eld production
-
About This Product
The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.
Features
-
- • UVC Capture
- ◦ HDMI™ to USB-C® with 60W Power Delivery
- ◦ Power Delivery 3.0 lets you stream live without interruption
- ◦ Ultra-low latency stream through USB-C® 3.2 connection
- ◦ 3.5 mm audio jack allows you to connect headphones or speakers
- ◦ 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
- ◦ UVC standard – No driver installation required
- ◦ Field production made easy with its compact size
- • UVC Capture
- • USB-C® Hub with 4K HDMI™
- ◦ Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
- ◦ USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
- ◦ 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
- ◦ 3.5 mm audio jack allows you to connect headphones or speakers
- ◦ No driver installation required for Windows® or macOS®
-
System Requirements
For UVC Capture – Recommended software: OBS™ / CameraFi™ Live
- • Available USB-C® port that supports USB™ Power Delivery 2.0 or 3.0
- • Windows® 10 / 11
macOS® X 10.10 or later with UVC support
Chrome OS™ with UVC support
Android™ 7 and higher
For USB-C® Hub
- • Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended). Please refer to the manufacturer of your hardware for more information on your device.
- • DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
For USB-C® Game Consoles
- • When using your game console, we recommend using a charger higher than 30W PD USB-C® to charge your console.
| Hardware | |
| Warranty | 2 Year Limited |
| Host Connector | 1 – USB-C® 3.2 Female |
| Video Input | 1 – HDMI™ Female |
| Video Output | 1 – HDMI™ Female |
| Audio Input | No |
| Audio Output | 1 – 3.5mm AUX |
| Video Switcher | No |
| Audio Switcher | No |
| Power Source | Bus-powered or self-powered (USB-C® PD power) |
| Ports | 1 – USB-C® PD 3.0 1 – HDMI™ Input 1 – 4K HDMI™ Output 1 – 3.5 mm audio jack 2 – USB™ Type-A (5Gbps) |
| Performance | |
| Supported Resolutions | HDMI™ In: 3840 x 2160
USB-C® display: 3840 x 2160 Capture/Record: 1920 x 1080 |
| Maximum Display Refresh Rate | 30 Hz |
| Audio Channel | 2.1 via HDMI™ |
| Audio Frequency | 48 kHz |
| Microphone | N/A |
| Headset | 2.1 Stereo |
| Compression | USB™ 2.0: MJPEG |
| Encode Format | MJPEG |
| HDR Supported | No |
| Power | |
| Power Delivery | Up to 60W via USB-C® |
| Power Consumption | ≤ 450 mA |
| Input Current | 3A |
| Input Voltage | 20V |
| Output Current | 3A |
| Output Voltage | 20V |
| Physical Specifications | |
| Color | Black |
| Enclosure Type | Plastic |
| Cable Length | 11.8 in. (30 cm) |
| Product Height | 0.59 in. (15 mm) |
| Product Width | 1.98 in. (50.5 mm) |
| Product Depth | 3.79 in. (96.5 mm) |
| Product Weight | 2.43 oz (69g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operation Temperature | 32 to 104°F (0 to 40°C) |
| Operation Humidity | < 80% non-condensing |
Special Notes
- • The JVA01 can connect to a USB-C® port that does not support Power Delivery, but it will not pass power through the connected device.
- • The HDMI™ Input port is for capture only. Additional displays will not output from this port. An external display can be connected through the HDMI™ Output port instead.
- • For UVC capture, the 3.5 mm audio jack only works if the host connected to the monitor has built-in speakers.
Package Contents
- • 1 – JVA01 Video Capture USB™ Hub
- • 1 – Quick Installation Guide (QIG)
| Brand |
J5Create |
|---|
