9-in-1 Functions
All the connections you need for maximum productivity
4K HDMI™ Output
Mirror or extend your screen and directly output resolutions up to 4K UHD @ 60 Hz
Connect a High-Refresh Gaming Monitor
Supports 120 Hz at 1440p QHD resolution for a smooth gaming experience with sharp images
SuperSpeed USB™ 10Gbps Transfer Rate
1 USB-C® and 2 USB™ Type-A for data transfer and charging
100W Power Delivery Pass-Through
Use with a USB-C® power adapter for the added ability to charge your laptop and power connected peripherals
SD™ & microSD™ 4.0 Memory Card Reader/Writer
High-Speed Ethernet Port
Universal Compatibility
Works with a variety of USB-C® enabled devices, including tablets and phones
Quick Setup
Use the device immediately – no driver installation required
-
About This Product

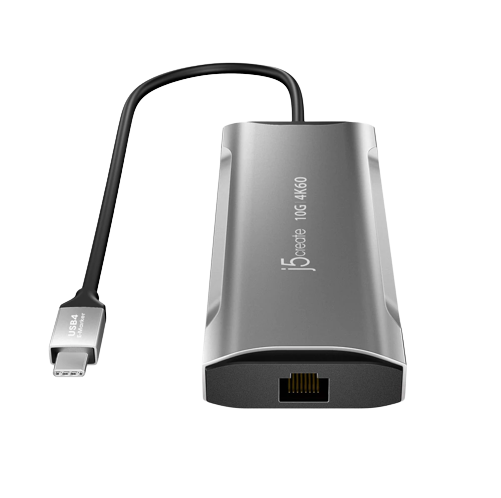

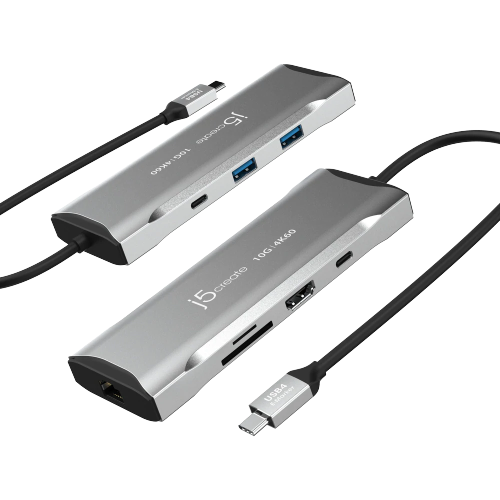

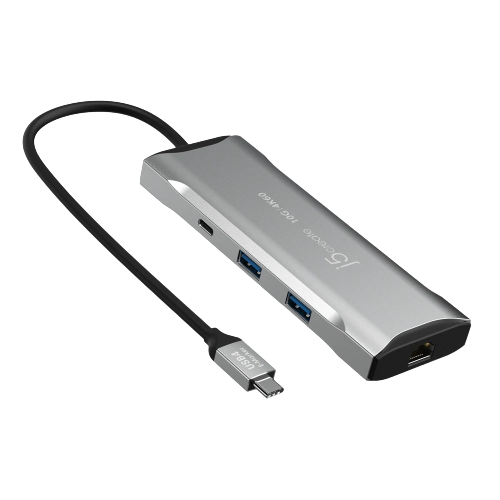

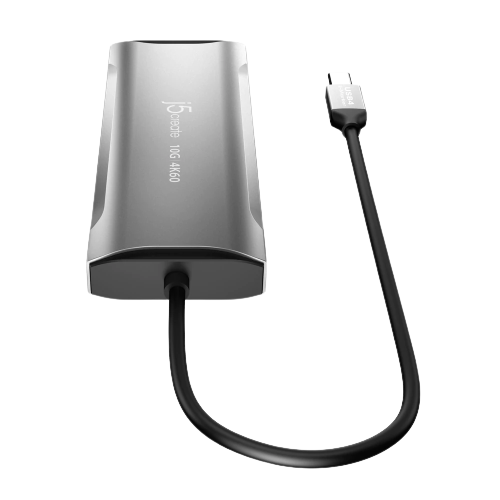

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Features
- • Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- • Backward compatible with USB™ 3.2/3.1
- • Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- • Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- • Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS
- • Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- • Charge and power connected laptop and peripherals with 100W Power Delivery
- • SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- • Easily add a wired network connectivity with the Gigabit Ethernet port
- • Plug-and-play, no driver installation required
System Requirements
- • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device - • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort™ 1.4 devices are listed as follows, but not limited to:
- • Macbook Air® 13″ 2019 or later
- • Macbook Pro® 15″ 2017 or later
- • Macbook Pro® 16″
- • iPad Pro® 11″/12″ 2018 or later
- • Surface™ Pro 7
- • Surface™ Laptop 3
Hardware | |
Warranty | 2 Year Limited |
Host Connector | 1 – USB-C® Male |
Video Output | 1 – HDMI™ Female |
Power Source | Bus-powered or self-powered |
Network Interface | RJ45 (Gigabit Ethernet) |
Audio Supported | Yes |
Ports |
|
Performance | |
Maximum Display Resolution | 3840 x 2160 |
Maximum Display Refresh Rate | 3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz (Windows®) |
Maximum Data Transfer Rate | 10Gbps |
Displays Supported | 1 |
Compatible Networks | 10/100/1000 |
Audio Channel | 2.1 via HDMI™ |
Power | |
Power Delivery | Up to 100W via USB-C® |
Power Consumption | ≤ 400 mA |
Input Current | Up to 5A |
Input Voltage | Up to 20V |
Output Current | Up to 4.25A |
Output Voltage | Up to 20V |
Physical Specifications | |
Color | Space Grey |
Enclosure Type | Aluminum |
Cable Length | 7.87 in. (200 mm) |
Product Height | 0.62 in. (16 mm) |
Product Width | 5.4 in. (138 mm) |
Product Depth | 1.96 in. (50 mm) |
Product Weight | 3.77 oz (107g) |
Storage Temperature | 0 to 155°F (-17 to 68°C) |
Storage Humidity | < 85% non-condensing |
Operating Temperature | 30 to 116°F (-1 to 41°C) |
Operating Humidity | < 85% non-condensing |
Special Notes
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
- • If connected to a DisplayPort™ 1.2 device performance will be limited to 3840 x 2160 at 30 Hz
- • The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
- • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
- • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
Package Contents
- • 1 – JCD393 4K60 Elite USB-C® 10Gbps Mini Dock
- • 1 – Quick Installation Guide (QIG)
