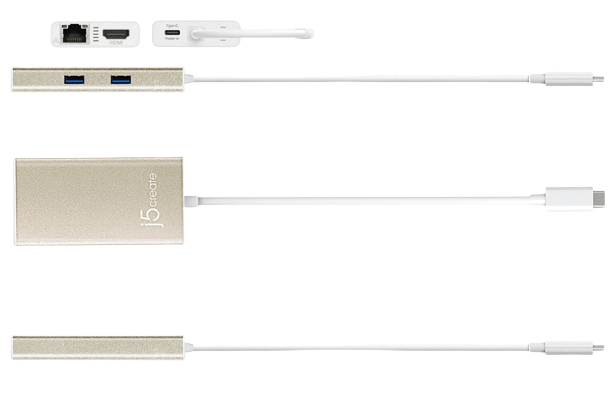

About This Product
Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 3.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
Features
- • Supports HDMI™ resolutions up to 4K @ 30 Hz
- • Reliable network connectivity via the Gigabit Ethernet port with LED indicators
- • Power your laptop with up to 60W pass-through charging using this adapter and a USB-C® power adapter
- • 2 x SuperSpeed USB™ 5 Gbps ports to connect additional peripherals transfer speed
- • Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- • Compact and lightweight design for maximum portability
-
-
System Requirements:
- • Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0.
Please refer to the manufacturer of your hardware for more information on your device - • DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 30Hz resolution
Special Notes:
- • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance.
- • To ensure files copy completely, do not remove the USB-C® power adapter while copying files
Hardware Warranty 2 Year Limited Host Connector 1 – USB-C™ Male Video Output 1 – HDMI™ Female Power Source Bus-powered or self-powered Network Interface RJ45 (Gigabit Ethernet) Audio Supported Yes Ports 2 – USB™ 3.0 Type-A
1 – RJ45 Gigabit Ethernet
1 – 4K HDMI™
1 – USB-C® for Power DeliveryPerformance Maximum Display Resolution 3840 x 2160 Maximum Display Refresh Rate 60 Hz @ 1920 x 1080
30 Hz @ 3840 x 2160Maximum Data Transfer Rate 5 Gbps Displays Supported Yes Compatible Networks 10/100/1000 Mbps Audio Channel 2.1 via HDMI™ Power Power Delivery Up to 60W via USB-C® Power Consumption ≥ 350 mA Input Current Up to 3A Input Voltage Up to 20V Output Current Up to 3A Output Voltage Up to 20V Physical Specifications Color Champagne Metallic Enclosure Type Aluminum Cable Length 3.93 in. (100mm) Product Height 0.59 In. (15 mm) Product Width 1.98 In. (50.5 mm) Product Depth 3.79 In. (96.5 mm) Product Weight 2.43 oz (69 g) Storage Temperature 14 to 140°F (-10 to 65°C) Storage Humidity < 85% non-condensing Operating Temperature 32 to 98°F (0 to 37°C) Operating Humidity < 85% non-condensing Package Contents
- • 1 – JCA374 USB-C® Multi-Adapter
- • 1 – Quick Installation Guide
- • Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0.
-
- 4K Video
- Transmits both audio and video from a USB-C™ computer or tablet to a 4K display (Driver not required)
- Power Delivery
- Supports upstream charging & power delivery 3.0 via USB Type-C™ charging Port
- Gigabit Ethernet
- Quickly connect your computer with USB-C™
- USB-C™ Compatible
- Designed to work with computers equipped with the newest USB-C™ port
- Surge Protection
- The JCA374 is equipped with surge protection so you can safely charge your devices
- Thin and Sleek Design
- Premium gold aluminum casing with a 9.8 inch cable, perfect for your notebook
