Intel NUC 13 Extreme Kit i7 NUC13RNGi7 – End of Life

Intel® Core™ i7-13700K processor
Up to 5.4 GHz Intel® Turbo Boost Max
Technology 3.0,
125W unlocked, 16 cores (8P+8E),
24 threads, 30MB Intel® Smart Cache
Intel® UHD Graphics 770

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Max Turbo Frequency
Max Turbo Frequency is the maximum single-core frequency at which the processor is capable of operating using Intel® Turbo Boost Technology and, if present, Intel® Turbo Boost Max Technology 3.0 and Intel® Thermal Velocity Boost. Frequency is typically measured in gigahertz (GHz), or billion cycles per second.

Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.

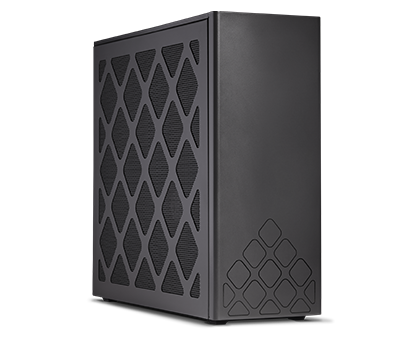

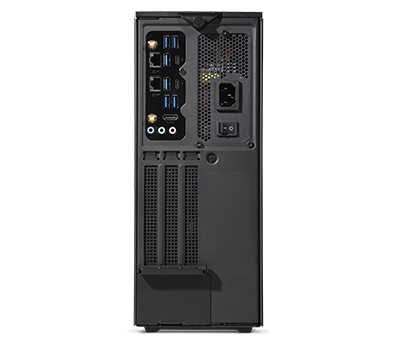

Intel nuc13RNGi7 Intel NUC 13 Extreme Kit – 337x318x129mm , support triple-slot discrete GPUs- intel Z690 Chipset , Intel rAptor lake lga1700 i7-13700K – 8x Performance-cores with Hyper-Threading + 8x Energy-efficient-cores , 24(16+8) threads , P-Core : 3.4Ghz / 5.3Ghz boost , E-Core : 2.5Ghz / 4.2Ghz boost , 24mb L2 cache + 30mb L3 cache , unlocked clock multiplier , 10nm , optional 2x DDR5-4800 so-dimm upto 64gb , 3x nGff/M.2 type2280 socket with Raid 0/1 support ( Gen4x4 ), 4/2 x2.5″ SATA + 0/1x 3.5″ SATA , on-board UHD770 graphics ( 32EU , 300/1600mh) , support upto 3x displays ( 1x HDMi out + 2x usb3 type-C/Thunderbolt4 ) , on-board dual lans ( AQC113 10Gb + i226-V 2.5Gb ) + WiFi 6E AX1690i dual-band wifi + BT + 7.1 audio via HDMi/DP + 2x USB4 type-C/Thunderbolt 4 (40Gbps) + 1x USB3 Gen2x2 type-C (20Gbps) + 6x USB3 Gen2 type-A (10Gbps) + 2x USB3 Gen1 type-A (5Gbps) + 3.5mm audio in+out , 750W 80+ Gold SFX psu
