- – Intel® Core™ i9 i9-14900KS
- – 36 MB Smart Cache LGA 1700
- – Processor cores: 24 64-bit
- – Maximum internal memory supported by processor: 192 GB DDR4-SDRAM, DDR5-SDRAM
- – On-board graphics card Intel UHD Graphics 770
- – Box

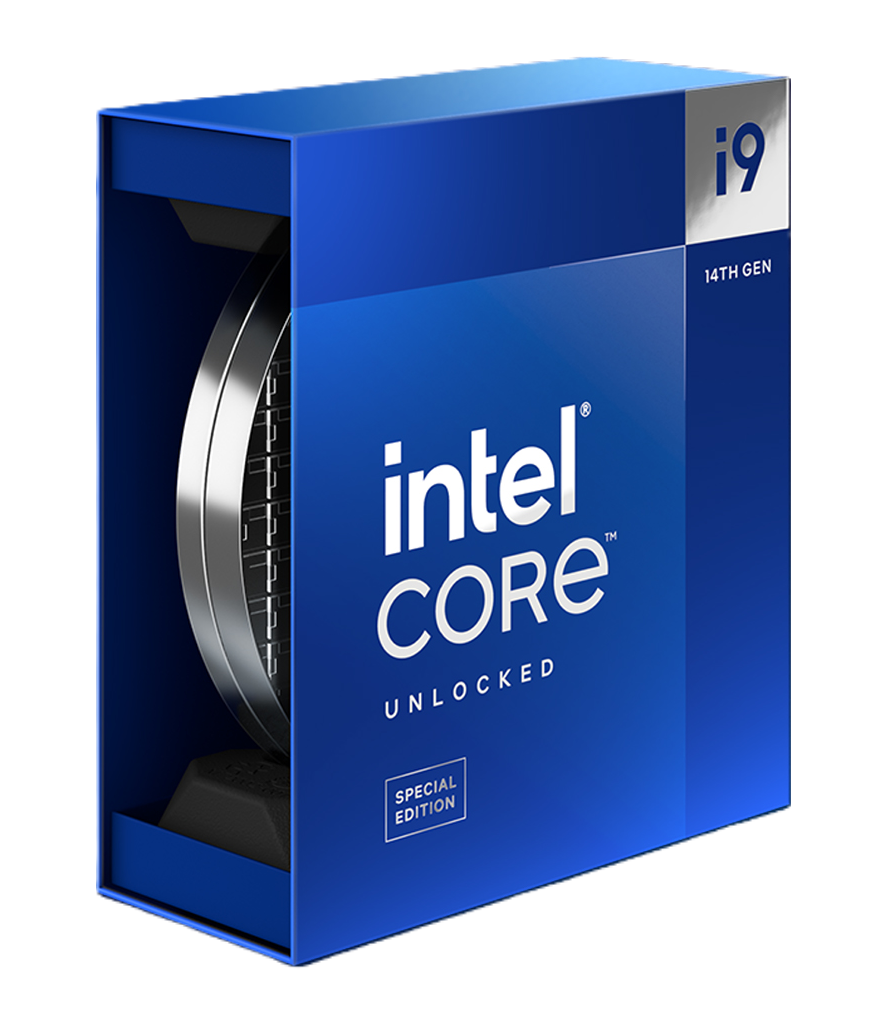

Boxed Intel® Core™ i9 processor 14900KS (36M Cache, up to 6.20 GHz) FC-LGA16A. Intel Core i9-14900KS. Processor family: Intel® Core™ i9, Processor socket: LGA 1700, Processor
manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by
processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. On-board
graphics card model: Intel UHD Graphics 770, On-board graphics card outputs supported: Embedded
DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1, On-board graphics card base frequency: 300 MHz.
Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel®
Turbo Boost Max Technology 3.0 frequency: 5.9 GHz, Intel® Thermal Velocity Boost Frequency: 6.2 GHz
CPU Model |
Intel Core i9-14900KS (14th Gen)
|
CPU Socket |
LGA 1700
|
Unlocked |
Yes
|
Number of Cores |
24 (8 x P-Cores + 16 x E-Cores)
|
Base Clock Speed |
P-Core: 3.2 GHz
E-Core: 2.4 GHz
|
Maximum Boost Speed |
P-Core Thermal Velocity Boost: 6.2 GHz
P-Core Turbo 3.0: 5.9 GHz
P-Core Turbo: 5.6 GHz
E-Core Turbo: 4.5 GHz
|
Thermal Design Power (TDP) |
150 W
|
Included Thermal Solution |
No
|
Integrated Graphics |
Intel UHD Graphics 770
|
General
CPU Model |
Intel Core i9-14900KS (14th Gen)
|
CPU Socket |
LGA 1700
|
Manufacturing Process |
10 nm
|
Maximum CPU Configuration |
1S
|
Maximum Number of PCIe Lanes |
16 (Revision 5.0)
4 (Revision 4.0)
|
Unlocked |
Yes
|
Performance
Number of Cores |
24 (8 x P-Cores + 16 x E-Cores)
|
Number of Threads |
32
|
Base Clock Speed |
P-Core: 3.2 GHz
E-Core: 2.4 GHz
|
Maximum Boost Speed |
P-Core Thermal Velocity Boost: 6.2 GHz
P-Core Turbo 3.0: 5.9 GHz
P-Core Turbo: 5.6 GHz
E-Core Turbo: 4.5 GHz
|
L3 Cache |
36 MB
|
Memory Support
Maximum Capacity |
192 GB
|
Memory Support |
DDR5 Up to 5600 MHz
DDR4 Up to 3200 MHz
|
ECC Memory |
Yes
|
Channel Architecture |
Dual Channel
|
Maximum Memory Bandwidth |
89.6 GB/s
|
Optane Memory Support |
No
|
Power
Thermal Design Power (TDP) |
150 W
|
Included Thermal Solution |
No
|
Maximum Temperature |
212°F / 100°C
|
Thermal Monitoring Technologies |
Yes
|
Technology
AES Support |
Yes
|
Extension |
AVX 2.0, SSE 4.1/4.2
|
Instruction Set |
64-Bit
|
Virtualization |
Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
|
DMI |
DMI4 (16 GT/s)
|
vPro Support |
Yes
|
Performance Technologies |
Adaptive Boost, Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, Intel Thread Director, SpeedShift, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0
|
Security Technologies |
Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key
|
Video Technologies |
Clear Video, Clear Video HD, Quick Sync Video
|
Integrated Graphics
Integrated Graphics |
Intel UHD Graphics 770
|
Maximum Resolution Support |
7680 x 4320 at 60 Hz
|
Supported APIs |
DirectX: 12
OpenGL: 4.5
OpenCL: 3
|
Number of Displays |
4
|
Output Support |
eDP, DisplayPort, HDMI
|
Base Clock Speed |
300 MHz
|
Maximum Boost Speed |
1.65 GHz
|
Packaging Info
Package Weight |
0.519g
|
Box Dimensions (LxWxH) |
8.7 x 6.9 x 2.8″
|
