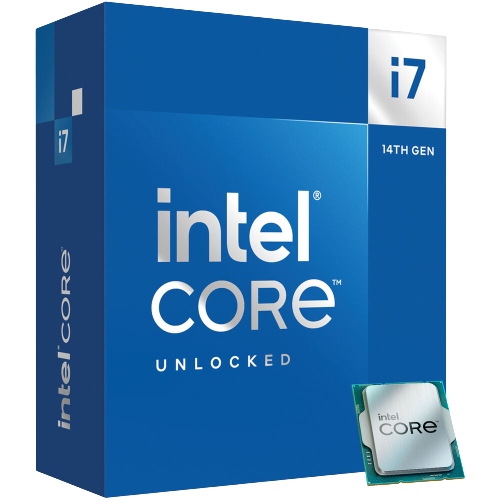

- – Intel® Core™ i7 i7-14700K
- – 33 MB Smart Cache LGA 1700
- – Processor cores: 20 64-bit
- – 192 GB DDR4-SDRAM, DDR5-SDRAM
- – On-board graphics card Intel UHD Graphics 770
- – Box
Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel® Deep Learning Boost (Intel® DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
CPU Specifications
- Total Cores 20
- # of Performance-cores 8
- # of Efficient-cores 12
- Total Threads 28
- Max Turbo Frequency 5.6 GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.6 GHz
- Performance-core Max Turbo Frequency 5.5 GHz
- Efficient-core Max Turbo Frequency 4.3 GHz
- Performance-core Base Frequency 3.4 GHz
- Efficient-core Base Frequency 2.5 GHz
- Cache 33 MB Intel® Smart Cache
- Total L2 Cache 28 MB
- Processor Base Power 125 W
- Maximum Turbo Power 253 W
Supplemental Information
- Marketing Status Launched
- Launch Date Q4’23
- Embedded Options Available No
Memory Specifications
- Max Memory Size (dependent on memory type) 192 GB
- Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s - Max # of Memory Channels 2
- Max Memory Bandwidth 89.6 GB/s
- ECC Memory Supported ‡ Yes
GPU Specifications
- Processor Graphics ‡ Intel® UHD Graphics 770
- Graphics Base Frequency 300 GHz
- Graphics Max Dynamic Frequency 1.6 GHz
- Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
- Execution Units 32
- Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
- Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
- Max Resolution (eDP – Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
- DirectX* Support 12
- OpenGL* Support 4.5
- OpenCL* Support 3.0
- Multi-Format Codec Engines 2
- Intel® Quick Sync Video Yes
- Intel® Clear Video HD Technology Yes
- # of Displays Supported ‡ 4
- Device ID 0xA780
