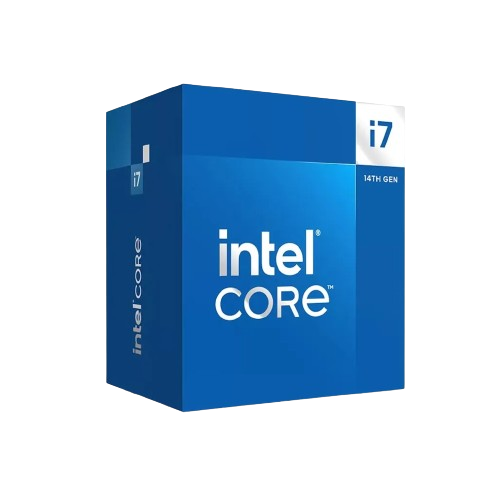

Intel Core i7-14700 2.1 GHz 20-Core LGA 1700 Processor
R8,300 Incl VAT
Pay R8,051 When paying via EFT at checkout.
Supplier out of stock
0
People watching this product now!
Description
Power up your productivity, gaming, and content creation with the Intel Core i7-14700 2.1 GHz 20-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency with a total of 20 cores while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700 powers demanding applications and games with eight 2.1 GHz Performance-cores, while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 33MB of cache and a 5.4 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. The Core i7-14700 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Core i7-14700 features integrated Intel UHD 770 Graphics. A Laminar RM1 cooler is included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 28 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Processor
| Cooler included | Y |
|---|---|
| Processor operating modes | 64-bit |
| Box | Y |
| Processor cache type | Smart Cache |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor cache | 33 |
| Stepping | B0 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Performance cores | 8 |
| Maximum number of DMI lanes | 8 |
| Performance-core base frequency | 2.1 |
| Processor base power | 65 |
| Processor family | Intel Core i7 |
| Processor boost frequency | 5.4 |
| Processor codename | Raptor Lake |
| Performance-core boost frequency | 5.3 |
| Efficient-core boost frequency | 4.2 |
| Memory bandwidth supported by processor (max) | 89.6 |
| Maximum turbo power | 219 |
| Processor generation | Intel Core i7-14xxx |
| Processor model | i7-14700 |
| Processor ARK ID | 236781 |
| Efficient-core base frequency | 1.5 |
| Efficient cores | 12 |
Technical details
| Status | Launched |
|---|---|
| OpenCL version | 3.0 |
| Launch date | Q1’24 |
Memory
| ECC | Y |
|---|---|
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 192 |
| Memory types supported by processor | DDR4-SDRAM,DDR5-SDRAM |
| Memory bandwidth (max) | 89.6 |
Features
| Execute Disable Bit | Y |
|---|---|
| Idle States | Y |
| Thermal Monitoring Technologies | Y |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | Y |
| Export Control Classification Number (ECCN) | 5A992C |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0,5.0 |
| PCI Express configurations | 1×16+1×4,2×8+1×4 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Use conditions | Workstation,PC/Client/Tablet |
Operational conditions
| Tjunction | 100 |
|---|
Processor special features
| Intel® Hyper Threading Technology (Intel® HT Technology) | Y |
|---|---|
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Enhanced Intel SpeedStep Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel® Quick Sync Video Technology | Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
| Intel® Secure Key | Y |
| Intel® OS Guard | Y |
| Intel® Boot Guard | Y |
| Intel® Speed Shift Technology | Y |
| Intel Turbo Boost Max Technology 3.0 | Y |
| Mode-based Execute Control (MBE) | Y |
| Intel® Deep Learning Boost (Intel® DL Boost) | Y |
| Intel® Volume Management Device (VMD) | Y |
| Intel® Control-flow Enforcement Technology (CET) | Y |
| Intel® Thread Director | Y |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Y |
| Intel® Standard Manageability (ISM) | Y |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.4 |
Graphics
| Number of displays supported (on-board graphics) | 4 |
|---|---|
| Number of execution units | 32 |
| Multi-Format Codec Engines | 2 |
| On-board graphics card | Y |
| Discrete graphics card | N |
| Discrete graphics card model | Not available |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 |
| On-board graphics card base frequency | 300 |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b,DisplayPort 1.4a,HDMI 2.1 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) | 5120 x 3200 |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) | 120 |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 |
| On-board graphics card ID | 0xA780 |
| On-board graphics card dynamic frequency (max) | 1600 |
Weight & dimensions
| Processor package size | 45 x 37.5 |
|---|
Other features
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
|---|---|
| Maximum internal memory | 192 |
| L2 cache | 28672 |
Logistics data
| Harmonized System (HS) code | 8542310001 |
|---|
Additional information
| Brand |
Intel |
|---|---|
| Cores |
20 |
| Base Clock Speed |
2.1Ghz |
| Boost Clock Speed |
5.4Ghz |
| Cooler Included |
Yes |
| Generation |
14th Generation |
| Intergrated Graphics |
Yes |
| Processor Family |
Core i7 |
| Socket |
LGA 1700 |
| Motherboard Compatibility |
Intel B660 ,Intel B760 ,Intel H610 ,Intel H670 ,Intel H770 ,Intel Z690 ,Intel Z790 |
| Windows Compatibility |
Windows 10 ,Windows 11 |
