In-Win WinBot E-ATX Chassis – Black/Red
R47,100 Incl VAT
Pay R45,687 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Specifications
Model WINBOT
Part Number IW-WINBOT-RED
IW-WINBOT-GRE
IW-WINBOT-BLU
Colors Black/Red, Black/Green, White/Blue
Case Type Full Tower
Case Material Aluminium, Plexiglass
M/B Compatibility 12″ x 13″ E-ATX, ATX, Micro-ATX
Expansion Slots PCI-E x 8
Maximum Compatibility Graphic Card Length: 340mm Maximum
(GPUs with unique designs may prevent installation)
CPU Heatsink Height: 170mm
(CPU Die Surface to Side Panel)

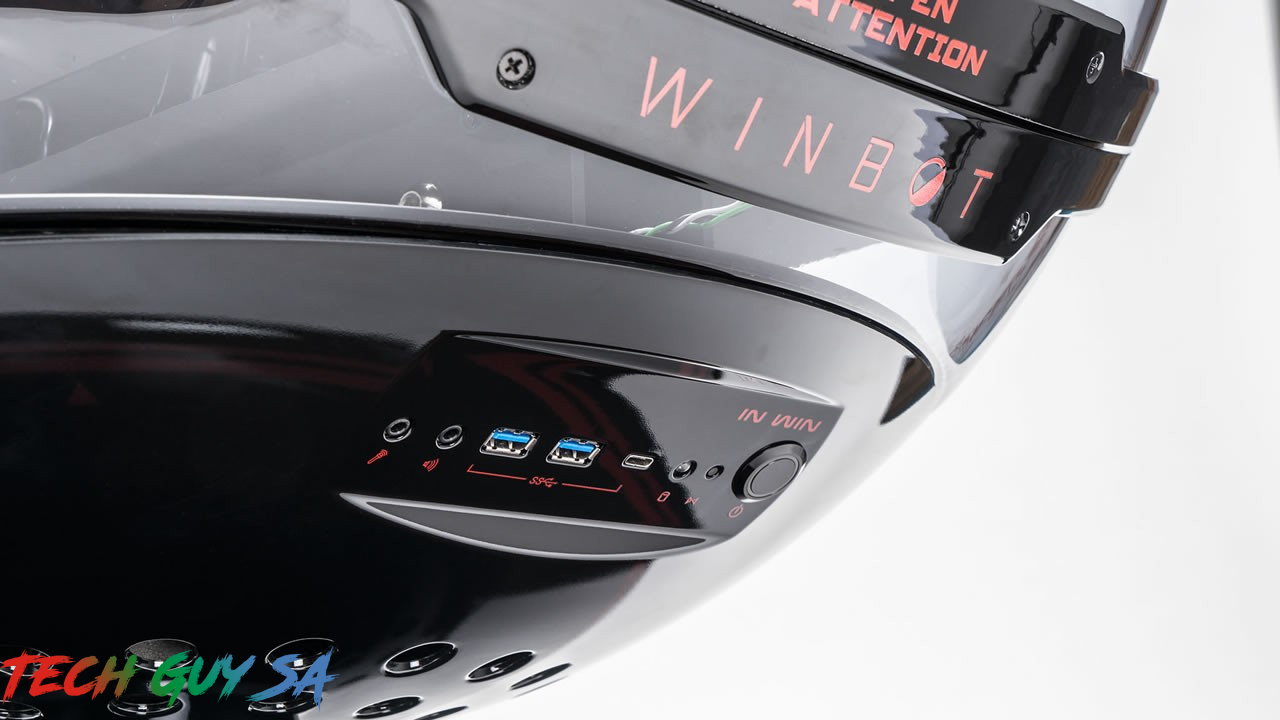

Front Ports 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
HD Audio
Internal Drive Bays 4 x 3.5″ / 8 x 2.5″
Thermal Solution Compatibility 3 x 120mm Side Fan / 360mm Radiator
2 x 120mm Rear Fan
-Side: 50mm Maximum Height including Fans
(Radiators with unique designs may prevent installation)
Power Supply Compatibility PSII: ATX12V and EPS12V
– Length: 210mm Maximum

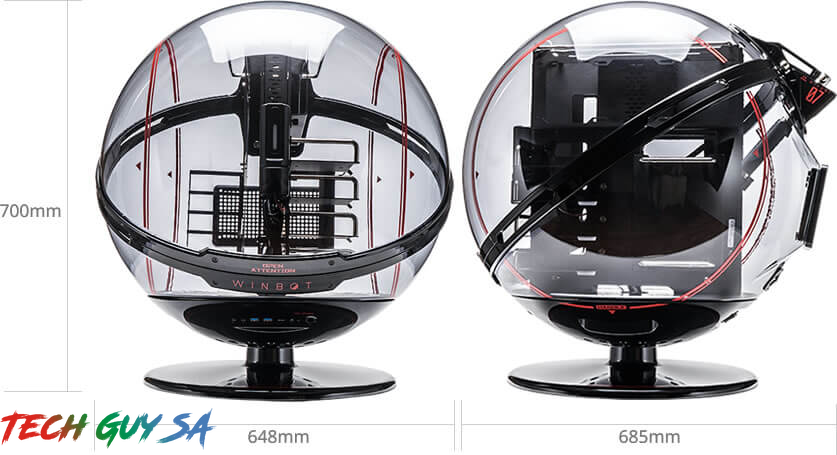

Product Dimension
(H x W x D) 700mm x 685mm x 648mm
27.6″ x 27″ x 25.5″
Package Dimension 920mm x 720mm x 720mm
36.2″ x 28.4″ x 28.4″
Net Weight 22.46kg/49.52lb
Gross Weight 51.0kg/112.44lb Specifications
Model WINBOT
Part Number IW-WINBOT-RED
IW-WINBOT-GRE
IW-WINBOT-BLU
Colors Black/Red, Black/Green, White/Blue
Case Type Full Tower
Case Material Aluminium, Plexiglass
M/B Compatibility 12″ x 13″ E-ATX, ATX, Micro-ATX
Expansion Slots PCI-E x 8
Maximum Compatibility Graphic Card Length: 340mm Maximum
(GPUs with unique designs may prevent installation)
CPU Heatsink Height: 170mm
(CPU Die Surface to Side Panel)
Front Ports 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
HD Audio
Internal Drive Bays 4 x 3.5″ / 8 x 2.5″
Thermal Solution Compatibility 3 x 120mm Side Fan / 360mm Radiator
2 x 120mm Rear Fan
-Side: 50mm Maximum Height including Fans
(Radiators with unique designs may prevent installation)
Power Supply Compatibility PSII: ATX12V and EPS12V
– Length: 210mm Maximum
Product Dimension
(H x W x D) 700mm x 685mm x 648mm
27.6″ x 27″ x 25.5″
Package Dimension 920mm x 720mm x 720mm
36.2″ x 28.4″ x 28.4″
Net Weight 22.46kg/49.52lb
Gross Weight 51.0kg/112.44lb
| Weight | 96 kg |
|---|---|
| Dimensions | 72 × 72 × 92 cm |
| Brand |
In-Win |
| RGB Lighting |
No |
| Max GPU Length |
340mm |
| Max CPU Height |
170mm |
| PSU Incl |
No |
| ATX Form Factor |
ATX |
