Icy Dock ExpressSlot Elite MB840M2P-B
R2,050 Incl VAT
Pay R1,989 When paying via EFT at checkout.
In stock with Supplier
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
0
People watching this product now!
Description
ExpressSlot Elite MB840M2P-B

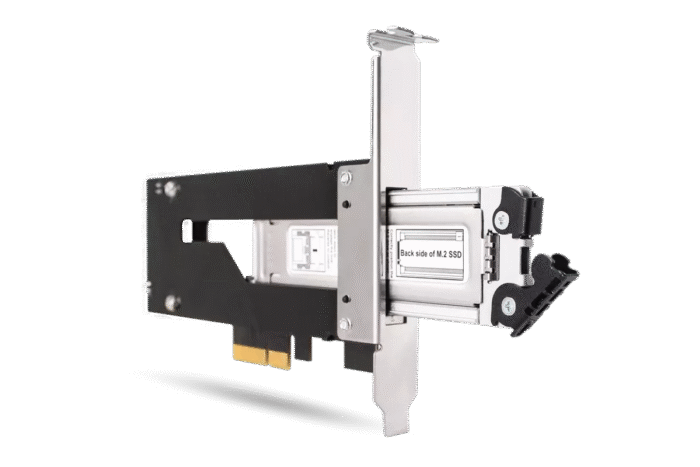

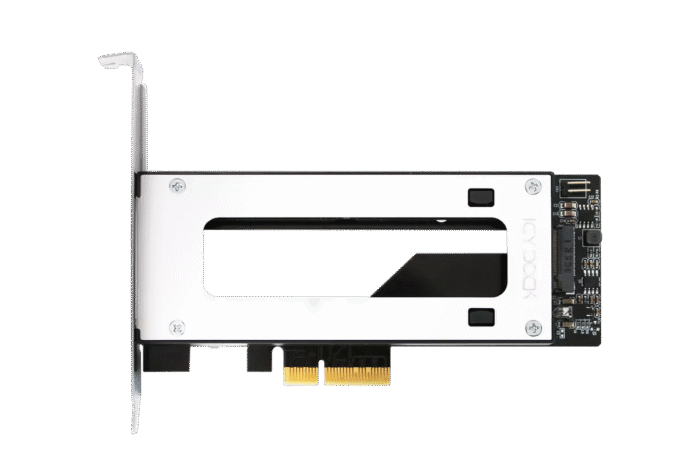

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot
-

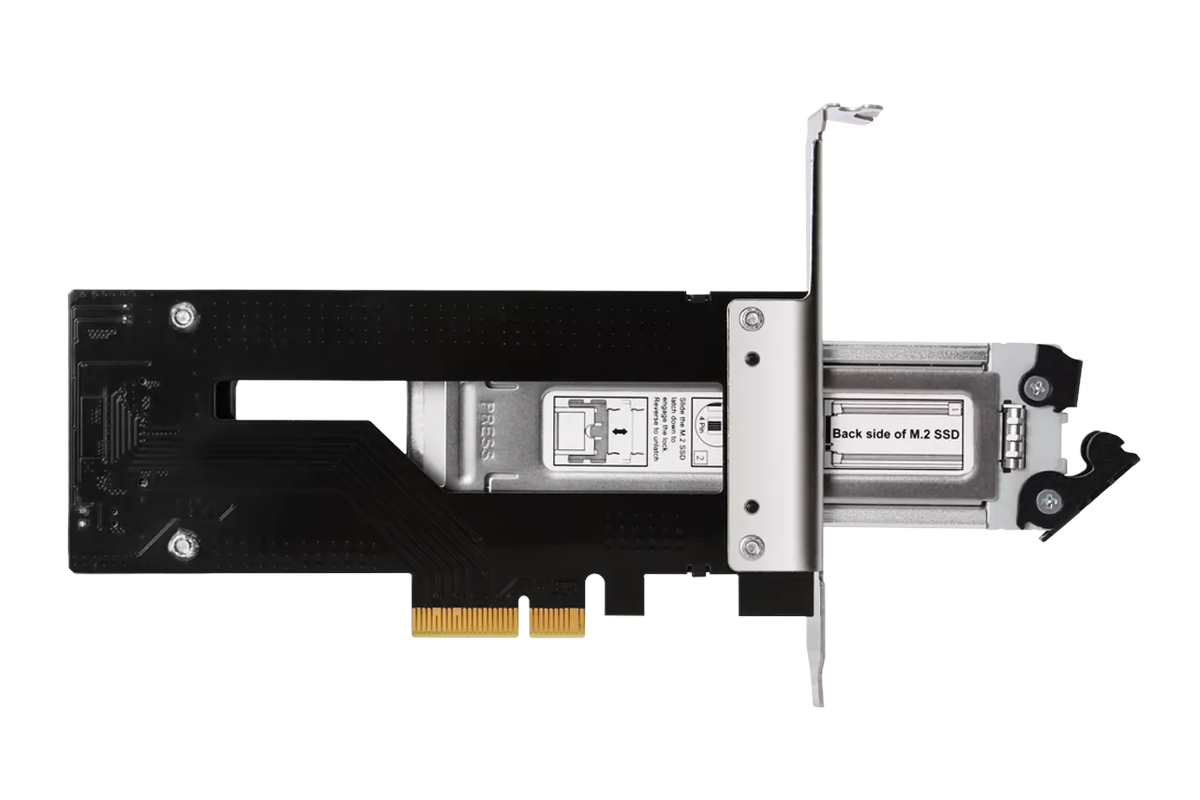

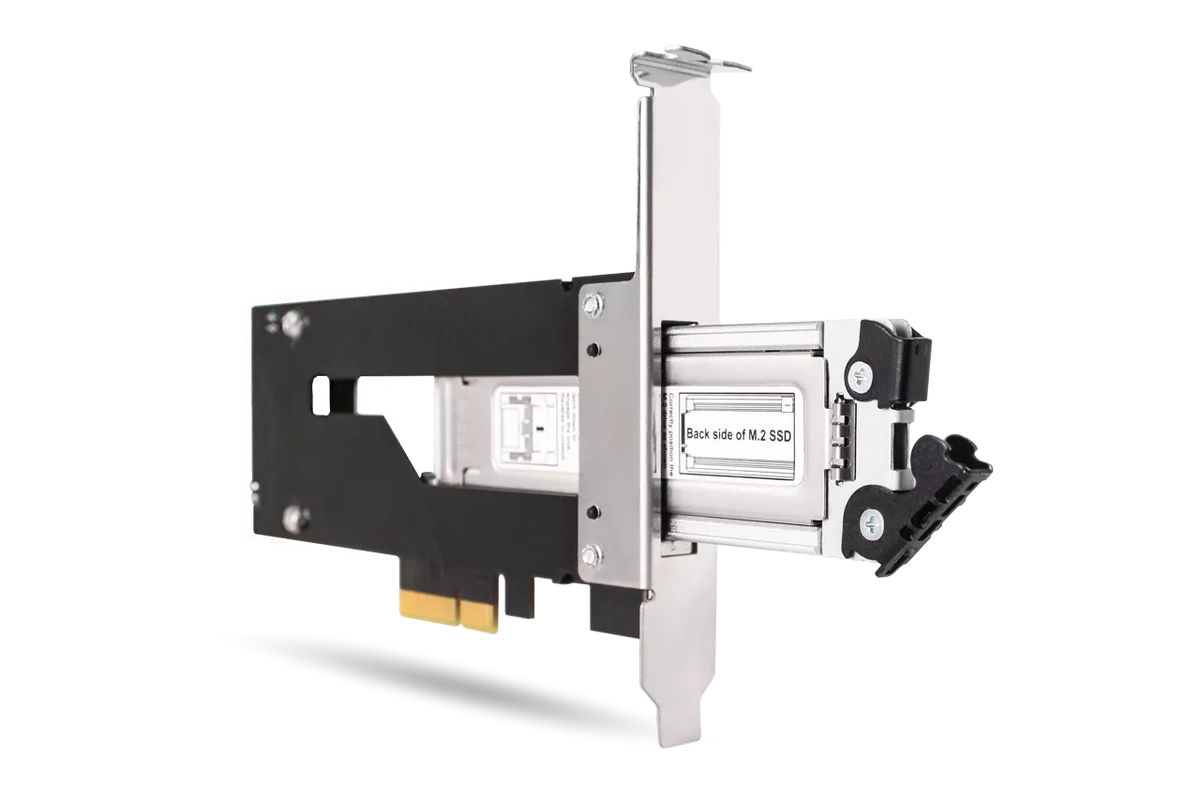

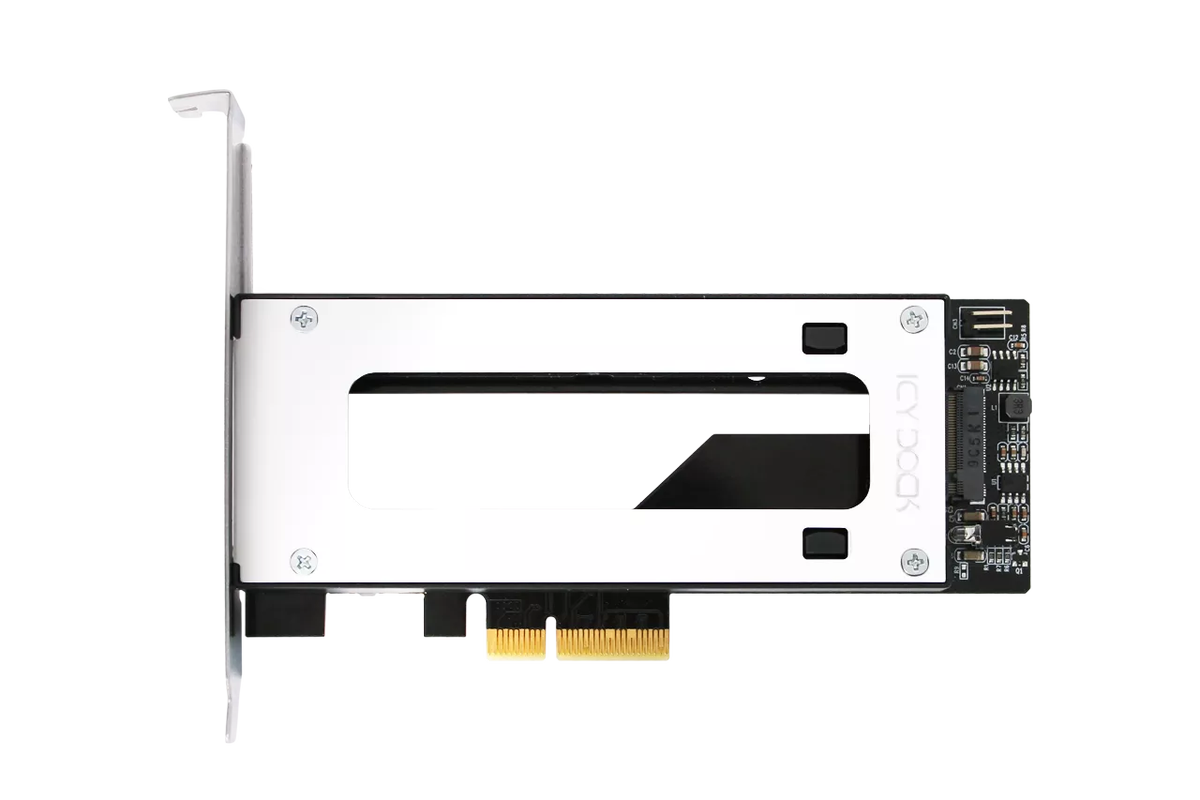

The ExpressSlot Elite MB840M2P-B turns a PCIe 4x, 8x, or 16x expansion slot into a removable M.2 NVMe drive bay, allowing you to swap in M.2 NVMe SSDs without needing to open the computer case. -

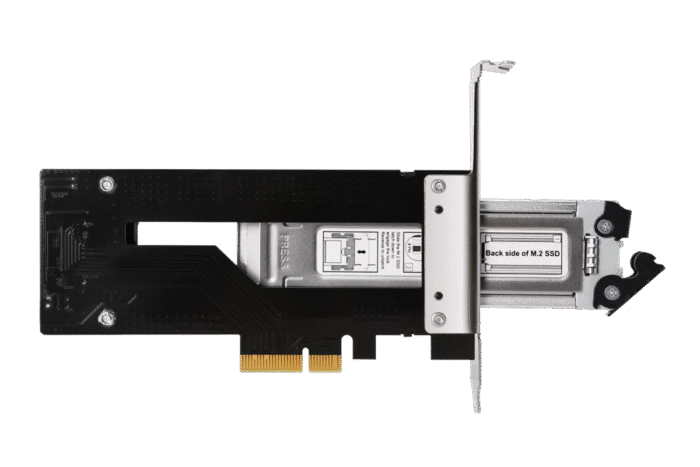

Innovative Removable M.2 NVMe SSD EnclosureA typical M.2 drive is installed on a motherboard or a riser card and secured by a tiny screw. Additionally, the physical installation process is very troublesome and time-consuming. However, with the MB840M2P-B and it’s removable drive tray design, you can utilize the PCIe expansion slot and makes M.2 NVMe SSD installation and removal a more straightforward and productive process. -

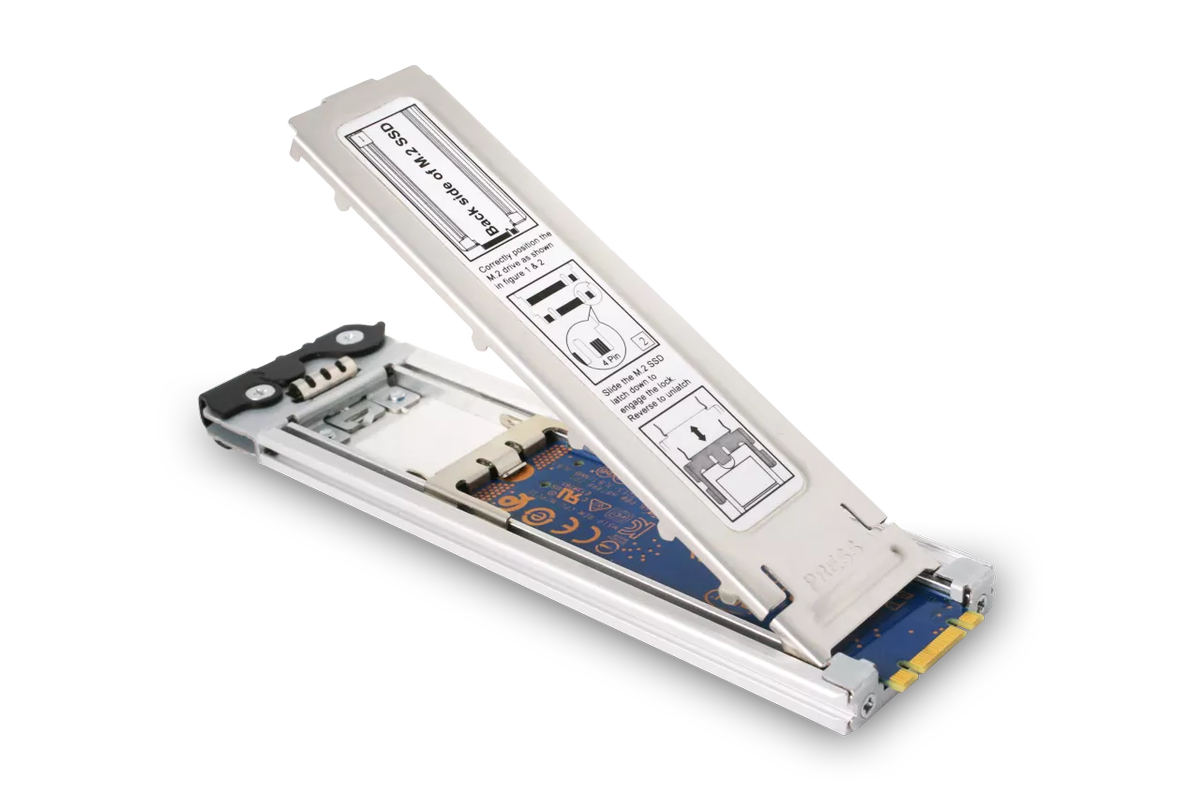

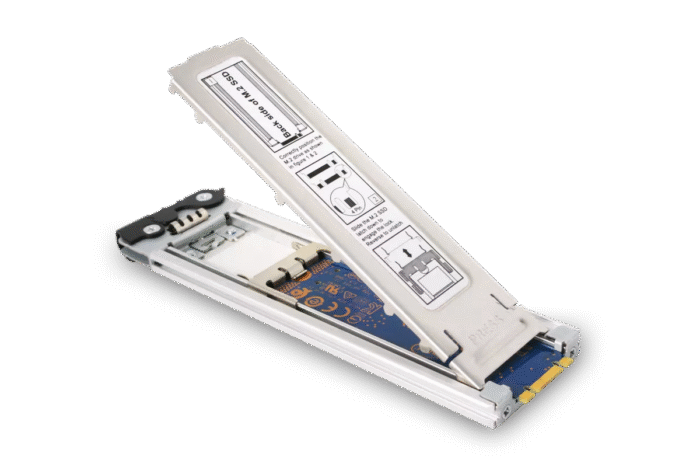

State of the Art Tool-less M.2 Drive InstallationThe whole process takes less than five seconds to complete, saving you the hassle of dealing with tiny easy to loose screws and bringing an efficient and innovative way for M.2 SSD installation. -
-
Optimal Cooling EfficiencyThe specialized slimline tray is made with thick aluminum and acts as heatsink to dissipate heat generated by the M.2 NVMe SSD. -
The included thermal pad filling the gap between the contact surface and transfer heat away from SSD to the larger surface, allowing airflow to move the heat away quickly. -

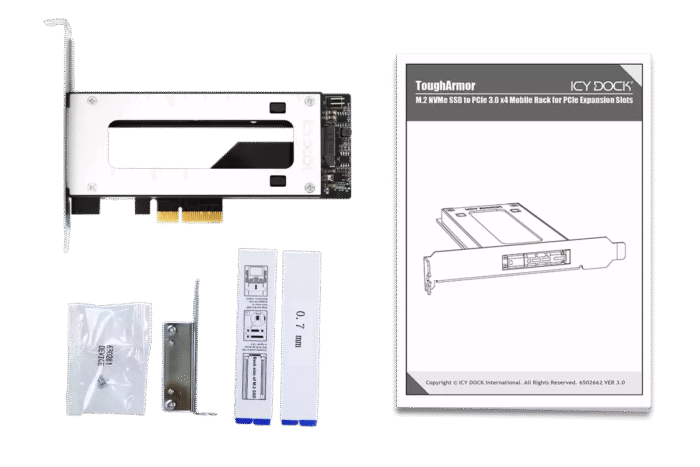

Support different system heightsThe PCIe slot bracket of the MB840M2P-B can be swapped between full and half-height for flexible system installation.Use the half-height bracket with a low profile system and use the full-height bracket for standard desktop systems, the choice is yours. -
EMI Grounding TechnologyGrounding your M.2 SSD is very important through many swaps. Swapping drives without grounding may damage the drive due to static shocks. With our innovative M.2 SSD tool-less drive installation design, once the adjustable M.2 locker clips into the SSD screw hole, the SSD will be grounded throughout the tray and housing of the enclosure. -
Maximum CompatibilityThe ExpressSlot Elite MB840M2P-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x4, x8, and x16 slots. -
Tough Protection for the Harshest EnvironmentsWith the ExpressSlot Elite series, it is equipped with a ruggedized full-metal chassis, tray, and mounting bracket to ensure a long product life. An anti-vibration mechanism is built right into the chassis to shield the drive from environmental damage. -

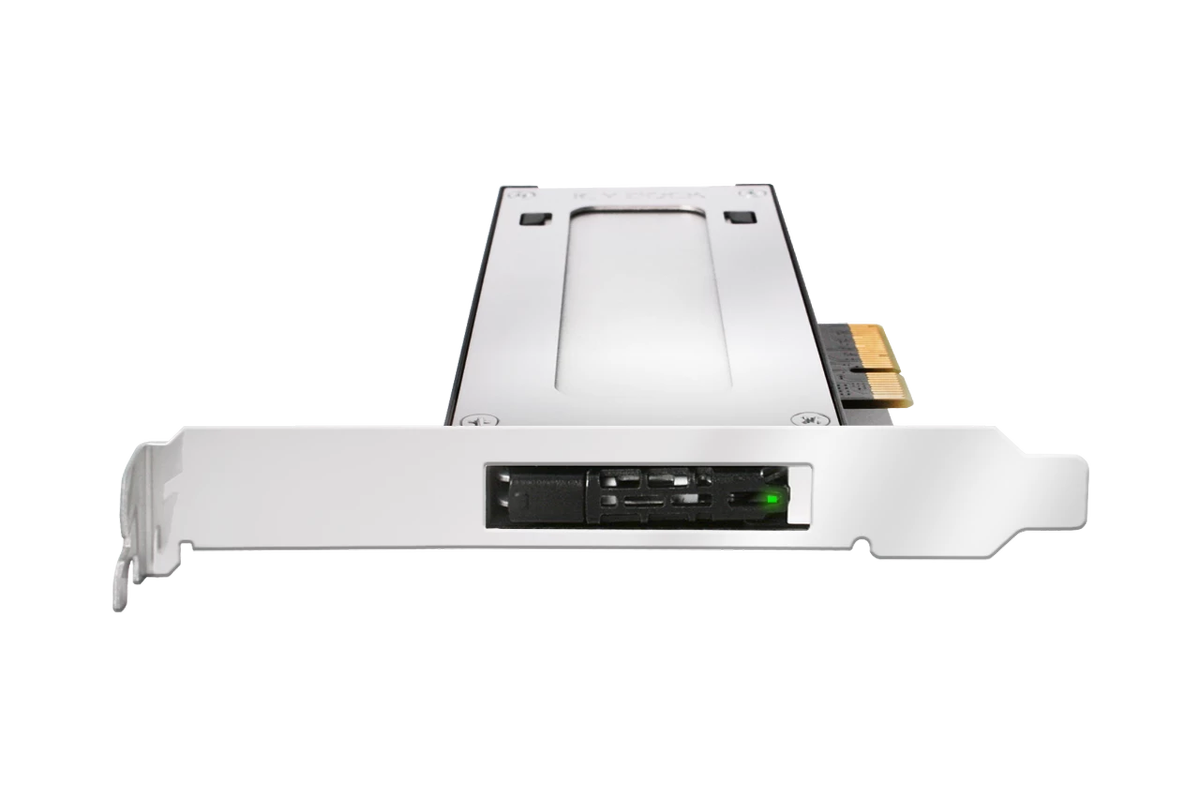

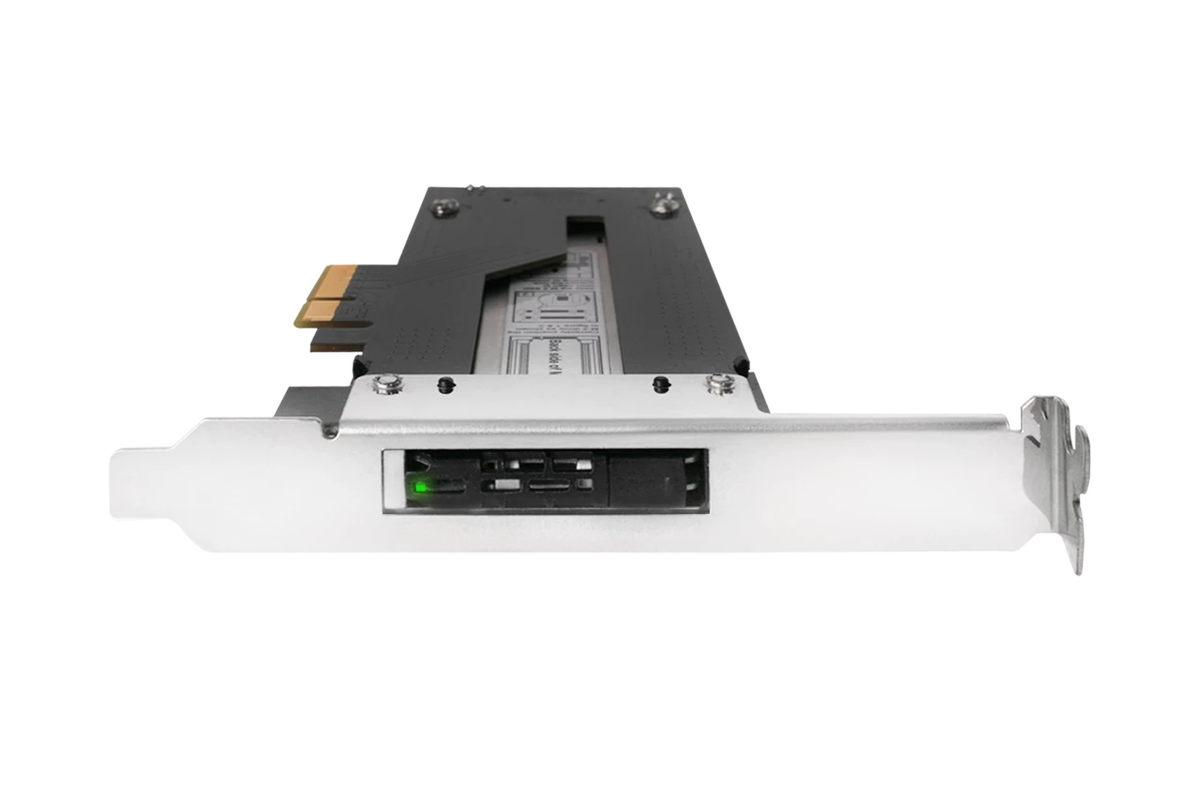

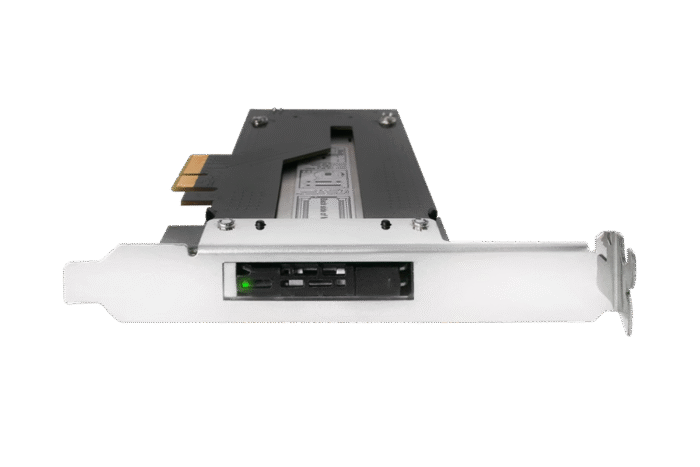

Packed with FeaturesThe MB840M2P-B is equipped with drive activity LED indicator on the tray that shows the drive power and activity. The LED will be automatically powered off when no drive is installed to save power. -
The optional 2-pin HDD activity signal output (cable not included) allows you to transfer the drive activity signal to the computer case or LED panel and lets you monitor the drive activity in your desired location. -
Utilizing the PCIe 3.0/4.0 interface provides power and data transfer at the same location, which ultimately reduces cable clutter in the system. The blazing-fast 64Gb/s transfer speed is 10 times faster than SATA III, making the MB840M2P-B an ideal solution for data-intensive applications such as image processing, machine learning, cloud computing, and data mining. -
Compatible with all PCIe Expansion Slots (Including 2019+ Mac Pro)The ExpressSlot Elite MB839SP-B and MB840M2P-B are compatible with all motherboard PCIe Expansion slots. By using the PCIe slot has many advantages such as providing power and data transfer at the same location which ultimately reduces cable clutter in a PC case. As the 2019+ Apple Mac Pro has computer enthusiasts going crazy for it, our PCIe mobile rack is compatible so you can max out the storage with half of the price that Apple is charging out the door! -
ExpressSlot Elite MB839SP-B for 2.5″ SATA SSD/HDDIf you are looking to install a 2.5″ SATA SSD through a PCIe slot, ICY DOCK got you covered! ExpressSlot Elite MB839SP-B is compatible with the PCIe 2.0 slot or above and offers hot-swap ability. Pair it with EZConvert MB703M2P-B M.2 SATA to 2.5″ SATA HDD adapter to swap M.2 SATA SSD and 2.5″ HDD/SSD within the MB839SP-B receiver frame for great compatibility to a variety of drives. -
Wide Range of CompatibilityThe specially designed MB840TP-B removable drive tray effortlessly enables seamless interchangeability across various models.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.
Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you’ll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
| Optional Certifications Available for ExpressSlot Elite MB840M2P-B | |
| TAA | Trade Agreements Act Compliance |
| UL | Safety Standard Certification |
| UL94 | Flammability of Plastic Materials |
| FCC | Federal Communications Commission Compliance |
| Wide Temperature | MIL-STD-810H – Method 501.7 & 502.7 |
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries, please contact us at tech@icydock.com
Main Features
| • | Fits 1x M.2 PCIe NVMe SSD with all drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm) |
| • | Use 1x PCIe 3.0/4.0×4 interface, also supports installation into PCIe 3.0/4.0 x8 and x16 slots |
| • | Install into a single-width full-height/half-height PCIe expansion slot |
| • | Removable drive tray with tool-less drive installation design for easy drive maintenance |
| • | Low profile design allows for multiple bays to be installed side-by-side in a modular design |
| • | Eagle-hook lock system keeps the drive secure in the enclosure |
| • | EMI Grounding – protects hard drives from electrical damage |
| • | Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage |
| • | Active Power Technology (APT) saves power by shutting the device down when no drive is install |
| • | PCIe interface provides both power and data transfer which ultimately reduce cable clutter |
| • | Built-in thermal pad conducts the heat from the drive to the metal tray |
| • | Optional SSD activity signal output lets you transfer the drive activity signal to computer case |
| • | Industry leading 5-year warranty against all defects |
| • | Complimentary support from professionally trained US-based technical support agents |
Additional information
| Brand |
ICY Dock |
|---|
