HDCVT HDMI1.4 70m Extender with IR
R760 Incl VAT
Pay R737 When paying via EFT at checkout.
In stock with Supplier
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

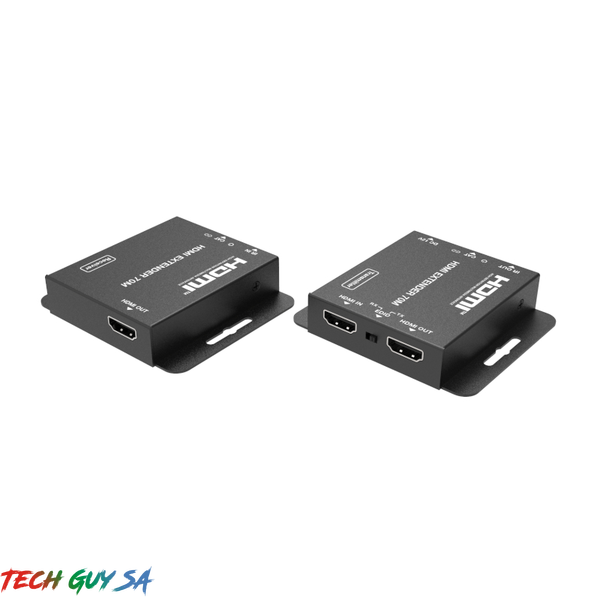

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.
FEATURES:
- HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant
- Support Video Resolution up to 4K2K@30Hz YUV 4:4:4
- CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
- CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
- Support Copying EDID from Receiver Display or Loop Out Display
- Allow for Cascading via additional HDMI loop out port
- Support one-way POC functionality (from transmitter to receiver)
- One-way IR signal transmission
SPECIFICATIONS:
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 10.2Gbps
- Video Resolution: Up to 4K@30Hz
- Audio Support Up to 7.1CH HD audio
- Input TMDS Signal: 3.3 volts
- Input DDC Signal: 5.0 volts/P-P
- ESD Protection
- Human Body model:
- +/- 8 kV (air-gap discharge)
- +/- 4 kV (contact discharge)
- Human Body model:
- Transmitter:
- Input:
- 1 x HDMI Type A [19-pin female]
- Output:
- 1 x HDMI Type A [19-pin female]
- 1 x IR OUT [3.5mm Stereo Mini-jack]
- 1 x CAT OUT [RJ45, 8-pin female]
- Input:

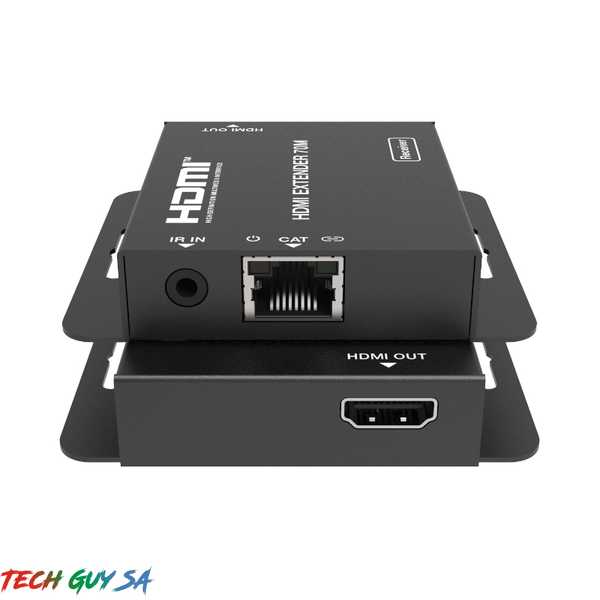

- Receiver:
- Inputs:
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x CAT IN [RJ45, 8-pin female]
- Output:
- 1x HDMI Type A [19-pin female]
- Inputs:
- Housing: Metal Enclosure
- Colour: Black
- Power Supply 12V/1A DC
- Power Consumption
- Transmitter: 1.86W
- Receiver: 0.87W
- Product Dimensions: 7.9 x 6.9 x 1.7 cm
- Weight:
- Transmitter: 132g
- Receiver: 130g
WHAT’S IN THE BOX:
- HDCVT HDMI 70M Extender Receiver x1
- HDCVT HDMI 70M Extender Transmitter x1
- IR Blaster Cable x1
- IR Receiver Cable x1
- 12V/1A DC Power Adapter x1
- User Manual x1
| Weight | 1 kg |
|---|---|
| Dimensions | 24 × 11.5 × 7.6 cm |
| Brand |
HDCVT |
