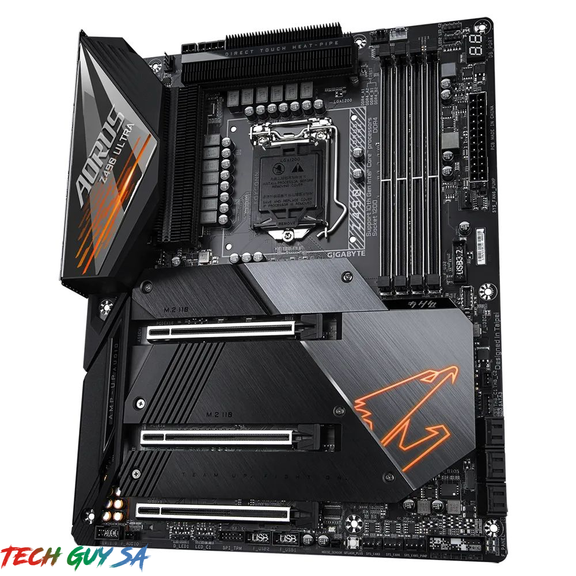

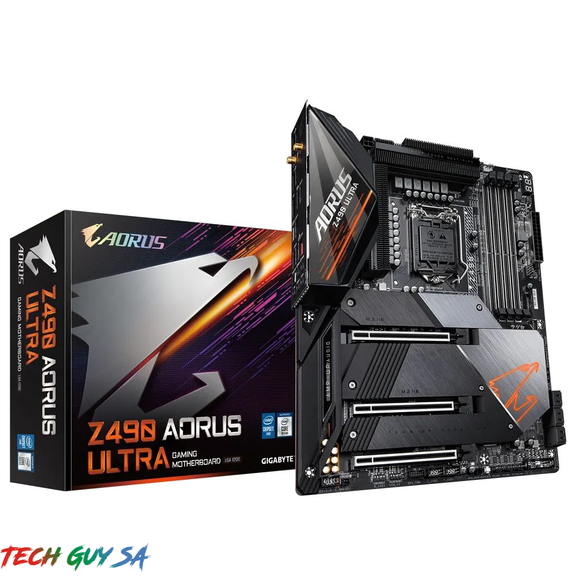

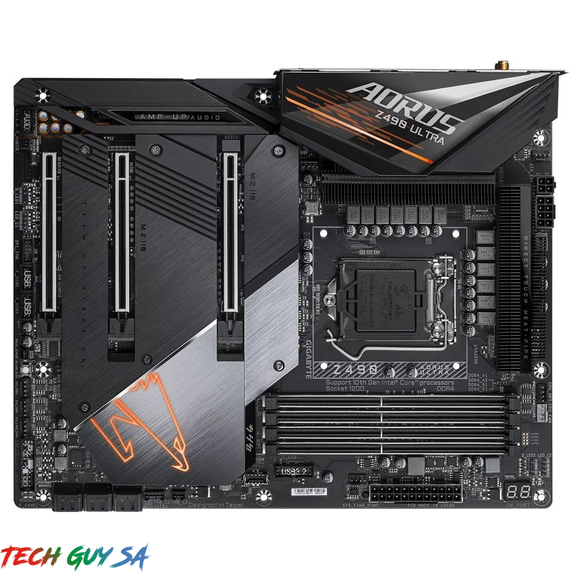

Gigabyte Z490 AORUS ULTRA - End of Life

Description

Intel^® Z490 AORUS Motherboard with Direct 12+1 Phases Digital VRM Design, Comprehensive Thermal Solution with NanoCarbon Fins-Array II, Intel^® WiFi 6 802.11ax, Intel^® 2.5GbE LAN, RGB FUSION 2.0

- Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel^® Optane™ Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 55A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- NanoCarbon Fins-Array II Heatsink and Direct Touch Heatpipe II
- Onboard Intel^® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
- Blazing Fast Intel^® 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards II
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

* Updated BIOS is required for compatibility.

Link to Gigabyte

GIGABYTE AORUS Z490 AORUS ULTRA- Z490 Express Chipset: Socket LGA1200, Supports 10th Generation Intel Core, Pentium and Celeron Processors

Memory : 4x Dual Channel DDR4 DIMM Slots (128GB Max / 5000MHz Supported)

Expansion Slots : 1x PCI-Express 3.0 (x16 Speed), 1x PCI-Express 3.0 (x8 Speed), 1x PCI-Express 3.0 (x4 Speed)

Storage and USB : 6x SATA 3 (6 Gb/s) connections, 3x M.2 Connector (Socket 3, M Key), Supports RAID 0,1,5,10, 2x USB3.2 Type C( 1 x Back, 1x Front), 3x USB 3.2 Type A (Back), 4x USB 3.2 Ports (2x Back, 2x Cable), 8x USB 2.0 (4x Back, 4x Cable)

Misc. : 7.1 Channel High Definition Audio, Support SPDIF Out, 1x Intel 2.5GBE Lan (2.5Gbit / 1Gbit / 100 Mbit), WIFI / BT Module included

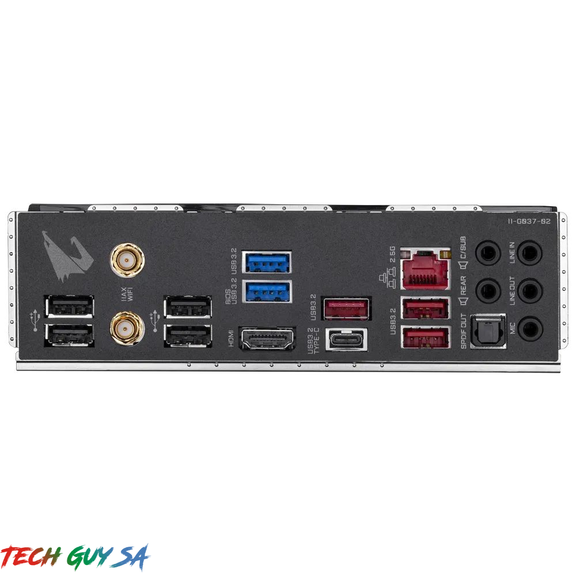

Rear IO Panel Display Ports Available: 1x HDMI

Additional information

Weight	1 kg
Dimensions	27.2 × 26.9 × 5.8 cm
