AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel^® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Dual USB-C^® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 8+8 phases parallel power design

CPU
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
1. AMD X670
Memory
1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0^(Note) x4/x2 SSD support) (M2A_CPU)
  (Note) Actual support may vary by CPU.
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Chipset:
1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x CPU cooler LED strip/RGB LED strip header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 4 x SATA 6Gb/s connectors
10. 4 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
14. 2 x USB 3.2 Gen 1 headers
15. 2 x USB 2.0/1.1 headers
16. 1 x THB_U4 add-in card connector
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x power button
19. 1 x reset button
20. 1 x Clear CMOS button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

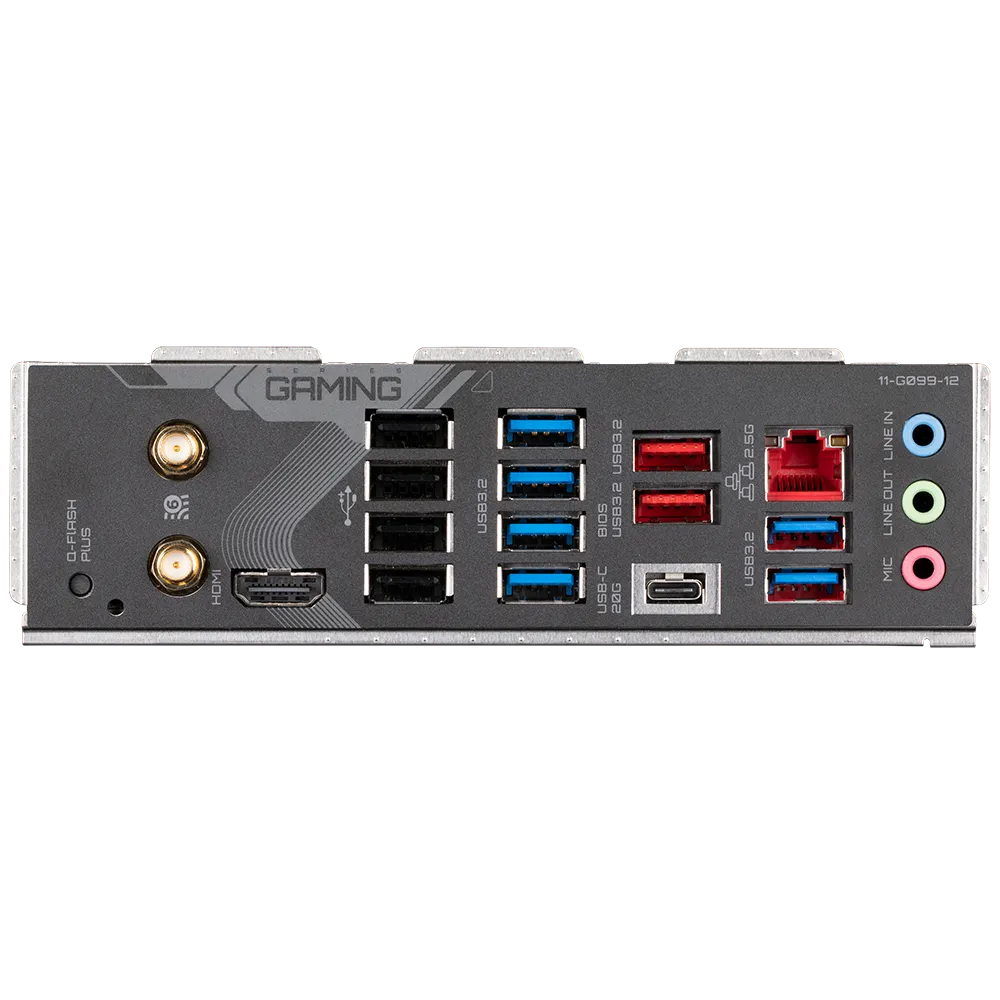

Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 6 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
8. 1 x RJ-45 port
9. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
4. Support for Smart Backup
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Brand

Gigabyte

Chipset Model

X670
