Gigabyte X570S GAMING X - End of Life

Gigabyte X570S GAMING X – End of Life

SKU / Product is End of Life

Pay R0 When paying via EFT at checkout.

0 People watching this product now!

AMD^® X570S GAMING Motherboard with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN, 2*USB 3.2 Type-C^®, Rear & Front USB 3.2 Type-C^®, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Fast 2.5GbE LAN with Bandwidth Management
Rear and Front USB3.2 Type-C^® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
1. AMD X570
Memory
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode
3. AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
1. Supporting PCIe 4.0^(Note)/3.0 x2 mode
  * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot.
2 x PCI Express x1 slots, integrated in the Chipset, supporting PCIe 4.0^(Note)/3.0

(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. Supporting PCIe 4.0^(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
1. Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
1. Support for RAID 0, RAID 1, and RAID 10
(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
USB
CPU:
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 1 x CPU cooler LED strip/RGB LED strip header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 6 x SATA 6Gb/s connectors
11. 3 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
18. 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

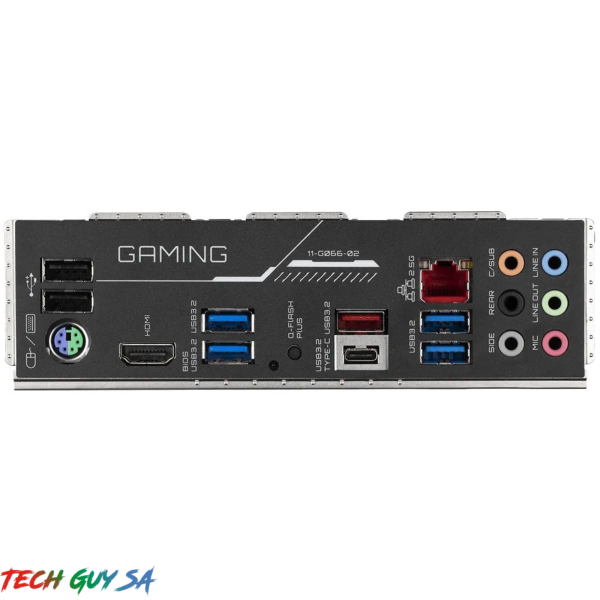

Back Panel Connectors
1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 1 x Q-Flash Plus button
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
8. 1 x RJ-45 port
9. 6 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® 8125 Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Weight

0.67 kg

Dimensions

26 × 32 × 4 cm

Brand

Gigabyte

Socket

AM4

CPU Support

Ryzen 2000 Series

Ryzen 3000 Series

Ryzen 4000 Series

Ryzen 5000 Series

Chipset Manufacture

AMD

Chipset Model

X570S

Form Factor

ATX

Memory Slots Available

4 Slots

On-Board WiFi

Windows Compatibility

Windows 10

Windows 11 ( Possibly Requires TPM )

Please note that We use either following Couriers Courierit / Courier Guy / MDS Collivery / DPD Laser / Internet Express / Rhenus / RTT / DCB. via uAfrica / Suppliers

Please select Shipping insurance should you wish to cover your goods during the transit. Free Shipping insurance from R0 – R1000 T&C’s Apply.

Should the users use incorrect Postal codes may result in incorrect Shipping fees. These may be corrected by Tech Guy SA and resulting in payment request for the difference. i.e Incorrect Postal code resulted in lower fees.

Orders May take 1-4 Days to Process before shipping once funds have cleared into our account. Delays may occur (ie Stock may need to come from JHB to CPT) Tracking Number Will be mailed to you in some cases Waybill Numbers take a few days while in transit (RTT / Rhenus / MDS / DCB).

Promotional Shipping Is offered time to time for Local and Main Centers With Weight Limits.
We will not courier out to the following without arrangement prior to the order as there are additional fees involved: Tenders, Chain Stores, Power Stations, Plot / Farms, Hospitals

Add to compare

Add to wishlist

SKU: GA-X570S-GAMINGX Category: End of Life Tags: 4719331823689, AMD Motherboard, GA-X570S-GAMINGX, Gaming X X570S, X570S

Description

Additional information

Weight	0.67 kg
Dimensions	26 × 32 × 4 cm
Brand	Gigabyte
Socket	AM4
CPU Support	Ryzen 2000 Series , Ryzen 3000 Series , Ryzen 4000 Series , Ryzen 5000 Series
Chipset Manufacture	AMD
Chipset Model	X570S
Form Factor	ATX
Memory Slots Available	4 Slots
On-Board WiFi	No
Windows Compatibility	Windows 10 , Windows 11 ( Possibly Requires TPM )
